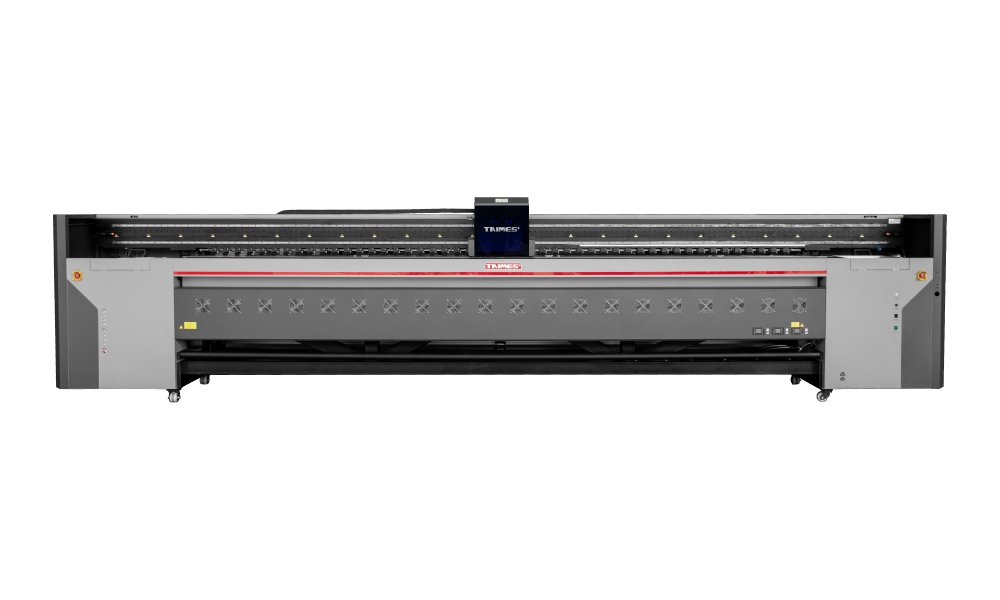

TAIMES T540

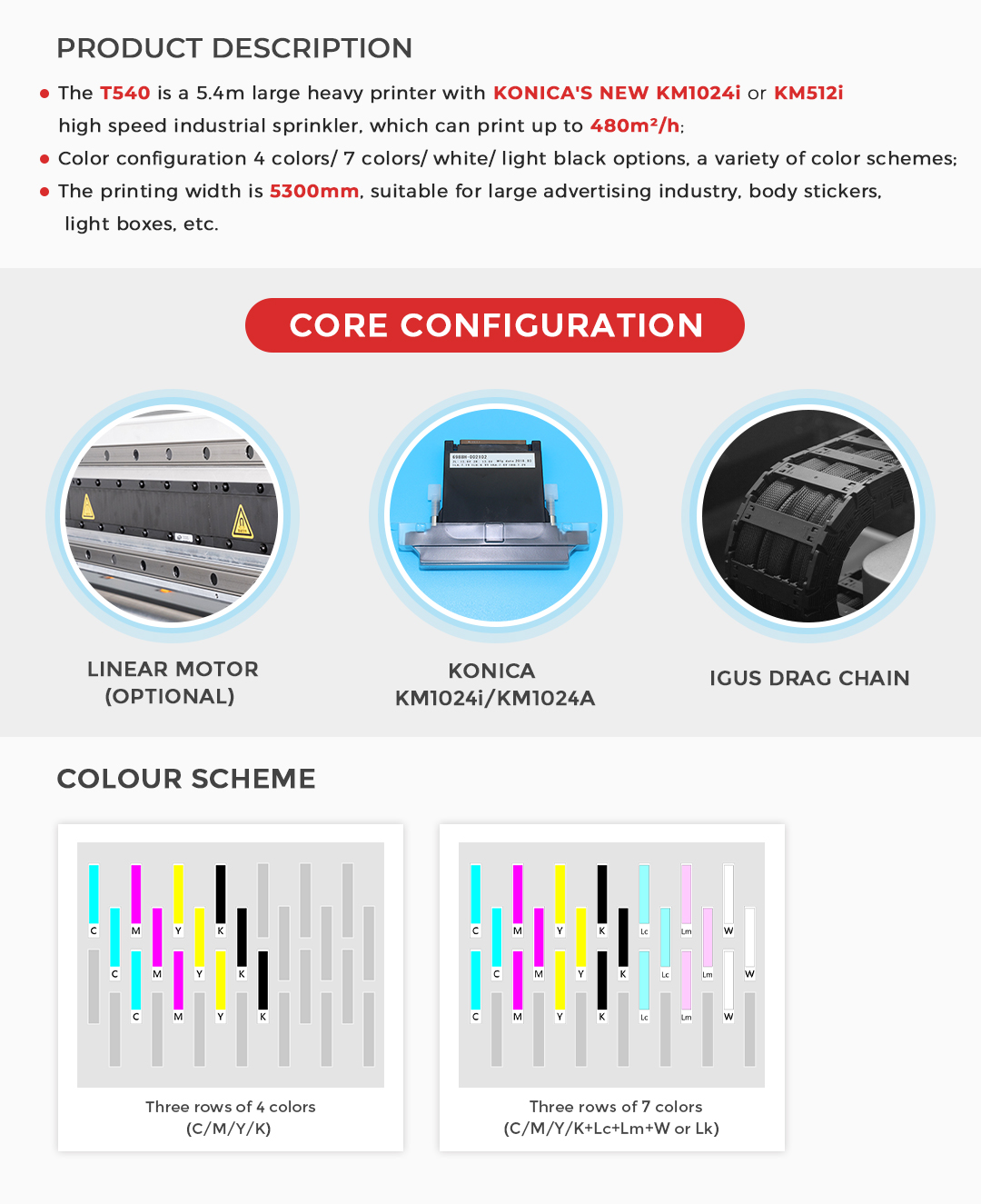

5.4 meters large heavy inkjet printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| T540 Speed Parameters | ||||
| Printhead | High Speed Mode | Standard Mode | High-Quality Mode | Ink Color |
| KM1024i-13PL 8 Heads |
540×360 dpi 2 pass 220 m²/h |
540×720 dpi 3 pass 150 m²/h |
240×1,080 dpi 4 pass 120 m²/h |
 |
| KM1024i-30PL 8 Heads |
480×360 dpi 1 pass 480 m²/h |
480×720 dpi 2 pass 260 m²/h |
480×1,080 dpi 3 pass 174 m²/h |
|
| KM1024i-30PL 4 Heads |
480×360 dpi 1 pass 380 m²/h |
480×720 dpi 2 pass 260 m²/h |
480×1,080 dpi 3 pass 260 m²/h |
|
| KM512i-30PL 8 Heads |
480×360 dpi 2 pass 230 m²/h |
480×540 dpi 3 pass 160 m²/h |
480×540 dpi 4 pass 120 m²/h |
|
| T540 Technical Parameter Table | ||||
| Print Control | ||||
| Print Technology | Industrial Piezoeiectric Inkjet | |||
| Ink Types | Solvent Ink | |||
| RIP Software | Maintop ( Optional Photoprint/ ONYX ) | |||
| Color Configuration | 4 Color or 7 Color（ C/ M/ Y/ K/ Lc/ Lm/ W or Lk ) | |||
| Operating System | Win 7/10/11 64 Bits | |||
| Image Format | TIF/ JPEG/ EPS/ PDF | |||
| Printhead Height | 2-8mm Above Media Adjustable | |||
| Printing Materials | Leather, Lamp Film, Lamp Cloth, PP Paper, Car sticker, Film, Acid Paper, Copperplate Paper, Oil Painting Cloth, etc | |||
| Media Specifications | Maximum Media Width 5,400mm | |||

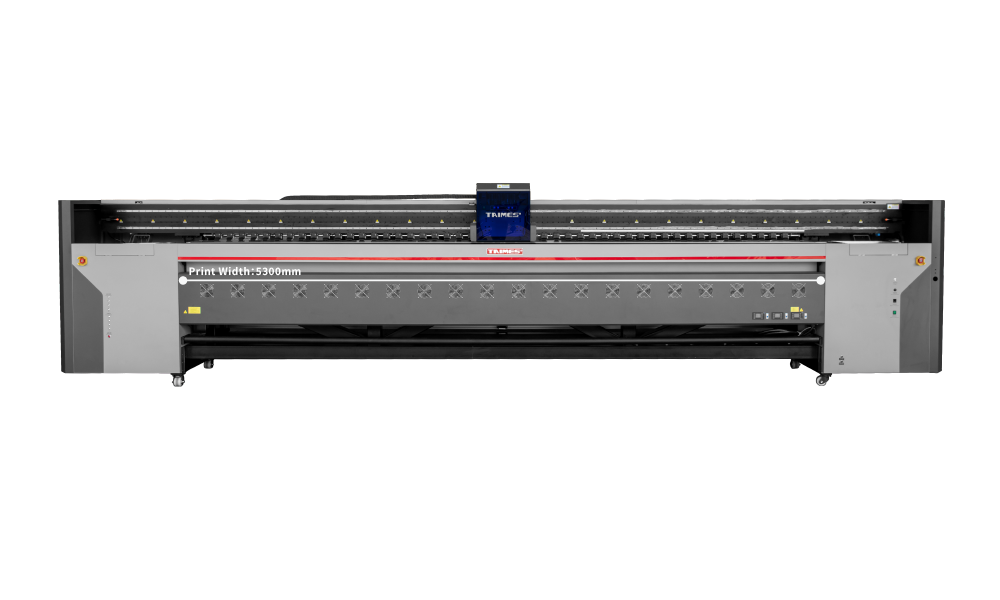

| Print Size | Maximum Print Width 5,300mm | |||
| Maximum Weight of Material | Optional Independent Take up System | |||
| Drying System | ||||
| UV Curing Lamp | ||||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | 3.5KW+ 10KW Dryer | |||
| Access Parameter | AC220V (±5%); 50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 35~80% RH (NO Condensing) | |||
| Temperature | 25~32℃; or more Recommended NO Frost | |||
| Specification | ||||
| Machine Dimension/ Net Weight | L7,600×W1,200×H1,850 mm/ Net Weight 2,700 KG | |||
| Package Dimension/ Gross Weight | L7,600×W1,150×H1,850 mm/ Gross Weight 3,200 KG | |||
