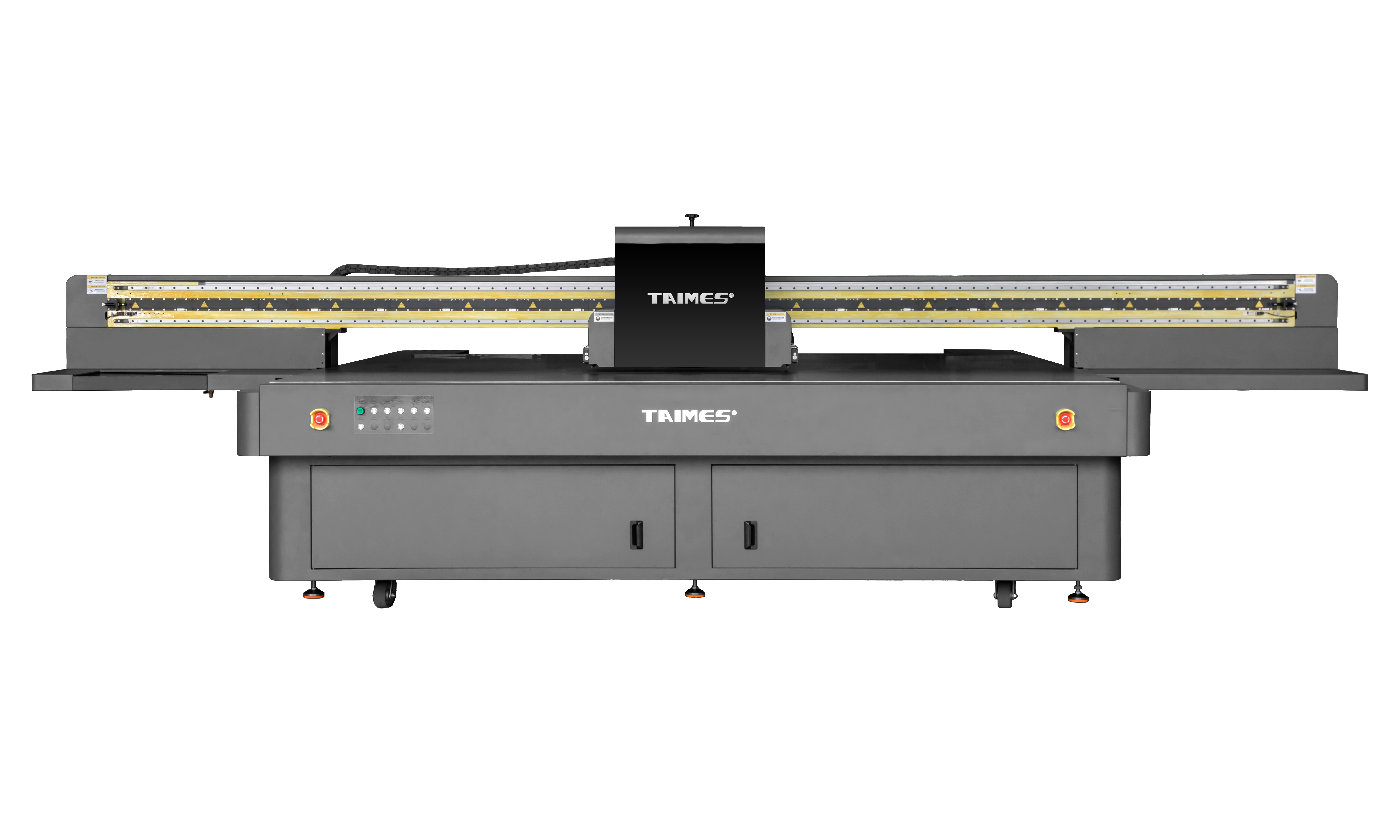

TAIMES X3225
Building materials industry UV flatbed printer
Previous
Next
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| X3225 Print speed parameters | ||||
| Printhead | High speed mode | Standard mode | High-quality mode | Ink Colour |

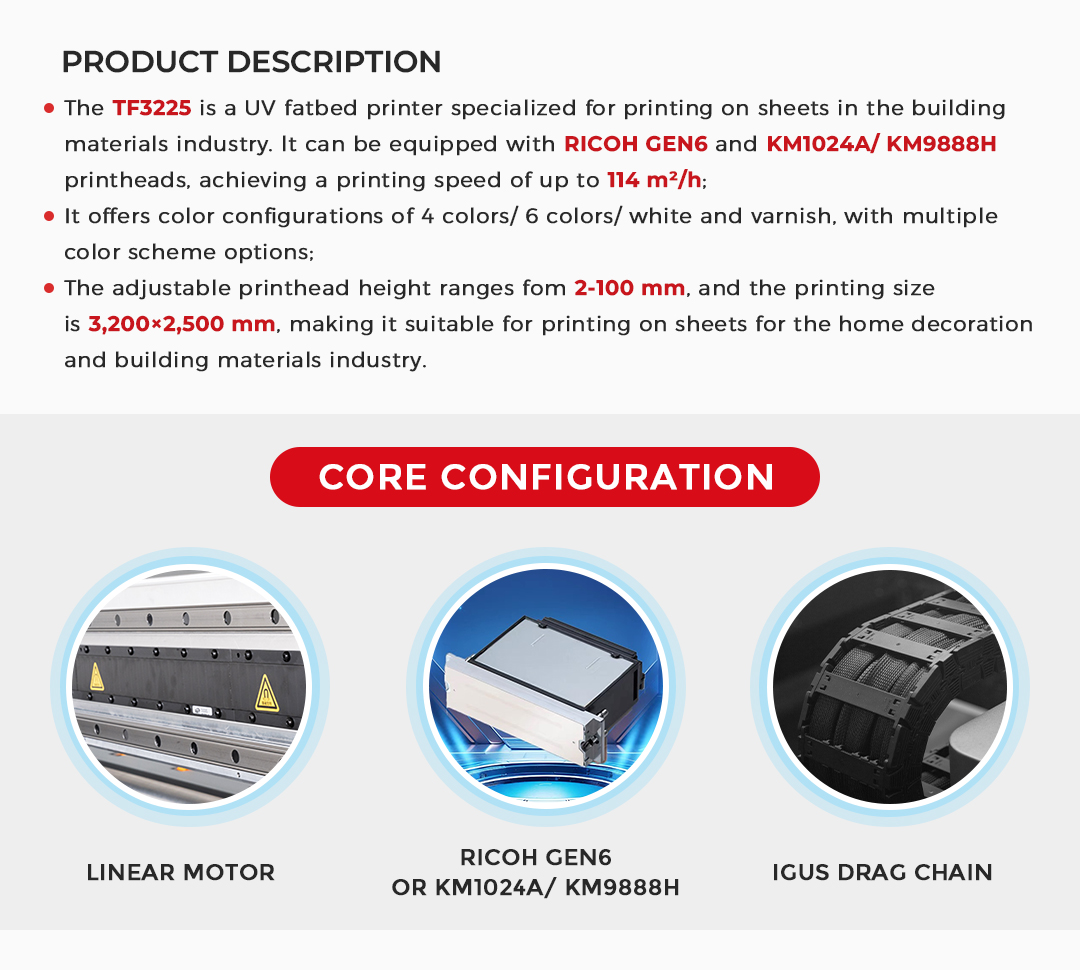

| RICOH GEN6 - 5PL 2/3/4/5/6/7/8 Heads |
720*600 dpi 4 pass 55 sqm/h |
720*900 dpi 6 pass 36 sqm/h |
720*1200 dpi 8 pass 26 sqm/h |
 |
| RICOH GEN5 - 7PL 2/3/4/5/6/7/8 Heads |
720*600 dpi 4 pass 35 sqm/h |
720*900 dpi 6 pass 27 sqm/h |
720*1200 dpi 8 pass 18 sqm/h |
|
| KM1024i - 13PL/6PL 4/5/6/7/8 Heads |
720*720 dpi 4 pass 40 sqm/h |
720*900 dpi 6 pass 26 sqm/h |
720*1440 dpi 8 pass 20 sqm/h |
 |
| X3225 Technical parameter table | ||||
| Print Control | RYPC/HOSON | |||
| Print Technology | Industrial piezoeiectric inkjet | |||
| Ink Types | Environmentally protective UV ink | |||
| RIP Software | Photoprint/Maintop/Printer Factory/Colorgate | |||

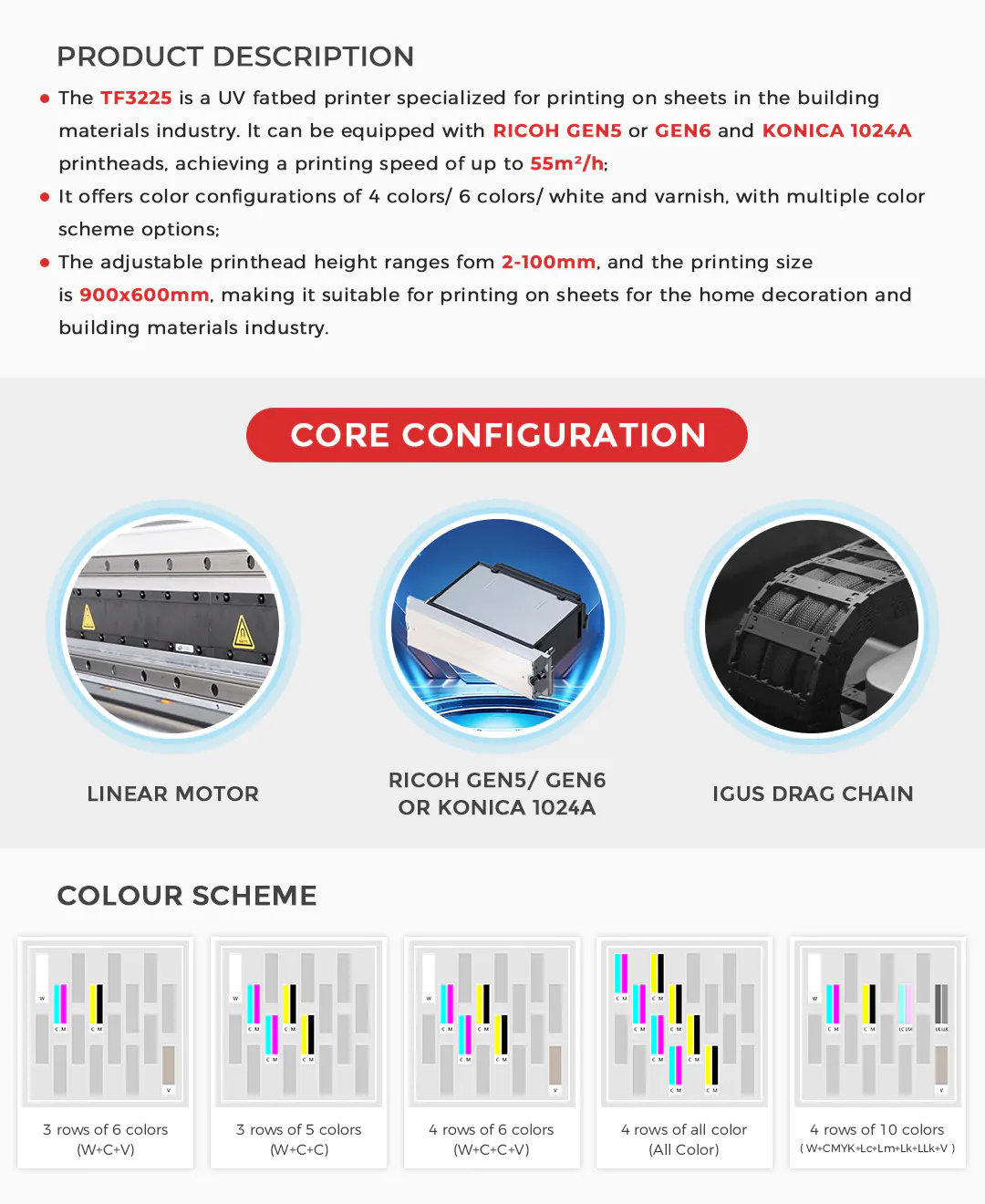

| Colour Configuration | 4colour/6colou/White/Varnish optional | |||
| Operating System | Win7/10/11 64bits | |||
| Image Format | TIF/JPEG/EPS/PDF | |||
| Printhead Height | 2~100 mm Above Media Adjustable | |||
| Printing Materials | Wooden panels, Aluminum panels,Door panels, Cardboard, PVC expansion panels, Roof panels, Glass, Ceramics, Acrylic, PVC, etc. |
|||
| Media specifications | 板材 Panel：3250mm(width) * 2050mm(depth) | |||
| Print Width | 板材 Panel：3200mm(width) * 2000mm(depth) | |||
| Maximum Weight of Material | 板材 Panel：≤100kg/m | |||
| Printing Drying System | UV ultraviolet radiation | |||
| UV Curing Lamp | LED Water Cooling System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞35A;7.7KW | |||
| Access Parameter | AC220V(±5%)，50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 35~ 80 % RH ( NO condensing ) | |||
| Temperature | 25~32℃ ( 77 to 90℉ ) ；or more recommended no frost | |||
| Specification | ||||
| Machine Dimension/Net Weight | L5293*W3815*H1631 mm / Net Weight 1350 KGS | |||
| Package Dimension/Gross Weight | L5890*W3945*H1760 mm / Gross Weight 1500 KGS | |||
