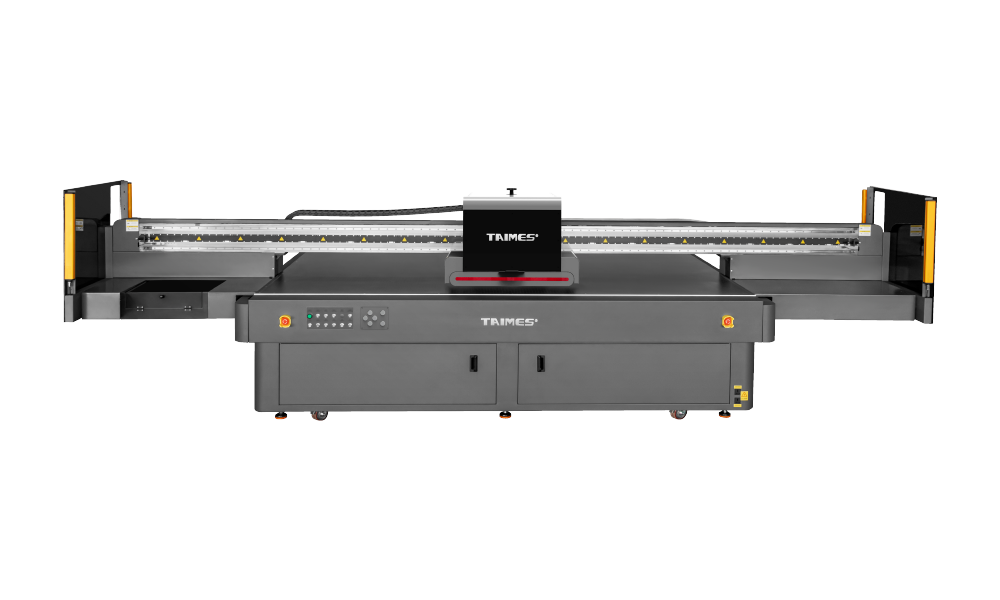

TAIMES TF3220

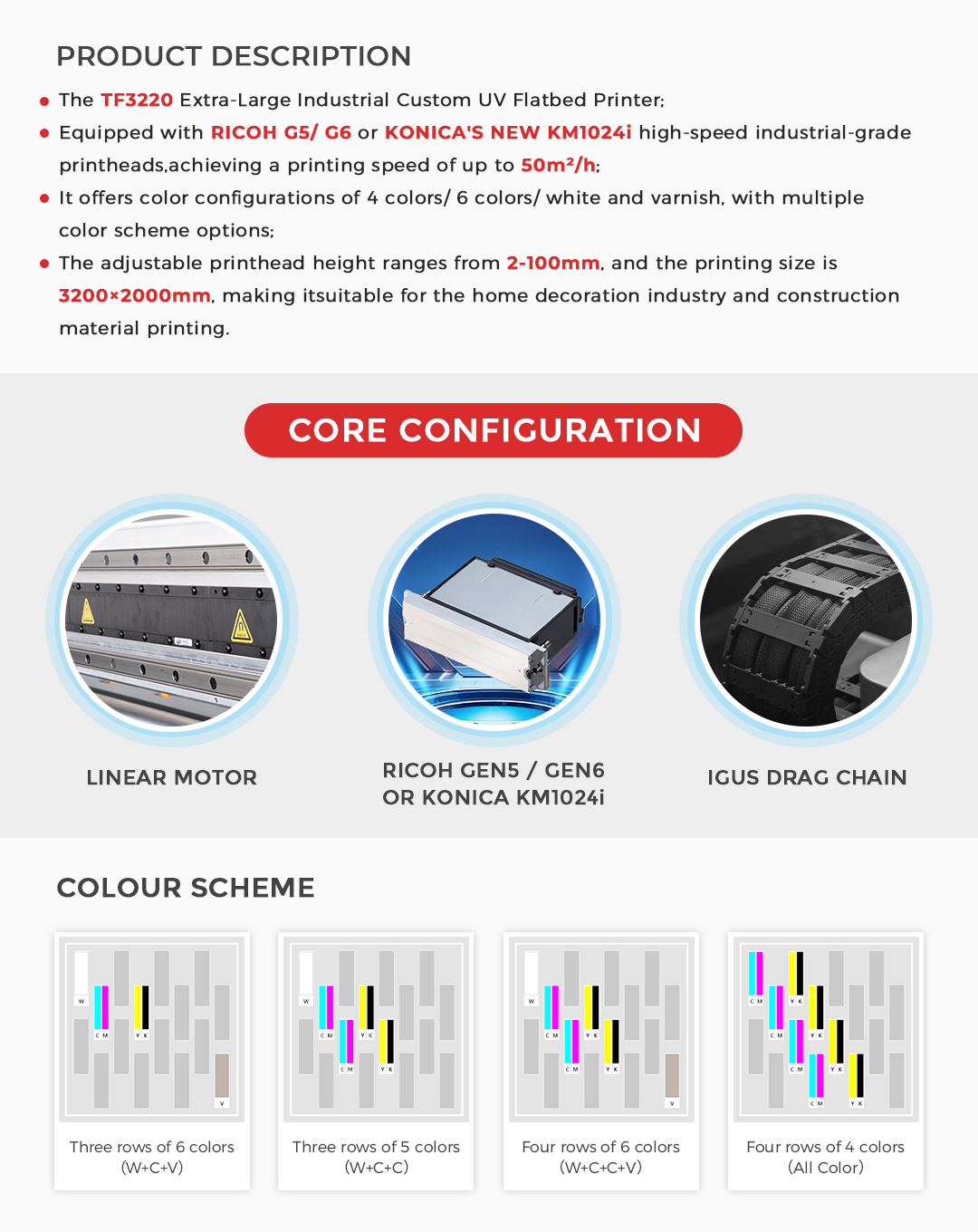

Ultra-large industrial custom UV flatbed machine
Previous
Next
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TF3220 Print speed parameters | ||||
| Printhead | High speed mode | Standard mode | High-quality mode | Ink Colour |
| RICOH GEN6-5PL 2/3/4/5/6/7/8 Heads |
720*600 dpi 4 pass 50 sqm/h |
720*900 dpi 6 pass 33 sqm/h |
720*1200 dpi 8 pass 25 sqm/h |
 |
| RICOH GEN5 - 7PL 2/3/4/5/6/7/8 Heads |
720*600 dpi 4 pass 32 sqm/h |
720*900 dpi 6 pass 26 sqm/h |
720*1200 dpi 8 pass 20 sqm/h |
|
| KM1024i - 13PL 4/5/6/7/8 Heads |
720*720 dpi 4 pass 40 sqm/h |
720*900 dpi 6 pass 26 sqm/h |
720*1440 dpi 8 pass 20 sqm/h |
 |
| TF3220 Technical parameter table | ||||
| Print Control | ||||
| Print Technology | Industrial piezoeiectric inkjet | |||
| Ink Types | Environmentally protective UV ink | |||
| RIP Software | Photoprint/Maintop/Printer Factory/Colorgate | |||
| Colour Configuration | 4colour/6colou/White/Varnish | |||
| Operating System | Win7/10/11 64bits | |||
| Image Format | TIF/JPEG/EPS/PDF | |||
| Printhead Height | 2~100 mm Above Media Adjustable | |||
| Printing Materials | Wooden panels, Aluminum panels,Door panels, Cardboard, PVC expansion panels, Roof panels, Glass, Ceramics, Acrylic, PVC, etc. | |||
| Media specifications | Panel：3250mm(width) * 2050mm(depth) | |||
| Print Width | Panel：3200mm(width) * 2000mm(depth) | |||
| Maximum Weight of Material | Panel：≤100kg/m | |||
| Printing Drying System | ||||
| UV Curing Lamp | LED Water Cooling System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞35A;7.7KW | |||
| Access Parameter | AC220V(±5%)，50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 35~ 80 % RH ( NO condensing ) | |||
| Temperature | 25~32℃ ( 77 to 90℉ ) ；or more recommended no frost | |||
| Specification | ||||
| Machine Dimension/Net Weight | L5298*W3390*H1585 mm / Net Weight 1350 KGS | |||
| Package Dimension/Gross Weight | L5420*W2260*H1760 mm / Gross Weight 1600 KGS | |||
