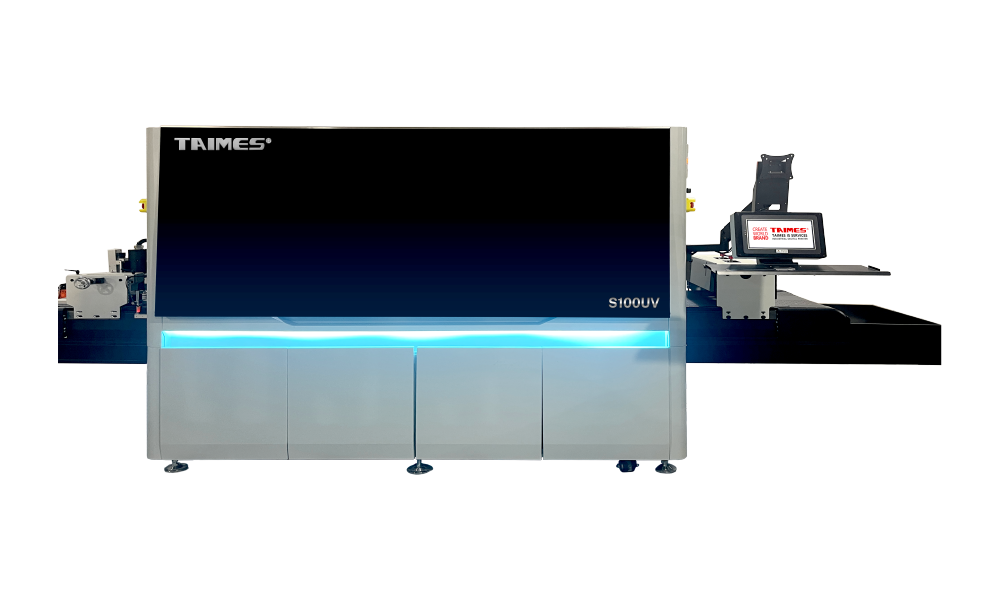

TAIMES S100UV
Single-Pass Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| S100UV Technical Specification | |||
| Print Color | C / M / Y / K | ||
| Print Technology | Piezoelectric Printhead | ||
| Printhead | RICOH GEN5/ GEN6 | ||
| Productivity | 600 × 600 dpi 50 m/min |
600 × 900 dpi 33 m/min |
600 × 1,200 dpi 25 m/min |
| Print Size | Maximum Print Width 95 mm | ||
| Max Thickness | 2~100 mm | ||
| Feeding Method | Belt Transportation | ||
| Media Type | Wood Flooring, Carton Packaging, Plastic Products, Hardware Products | ||
| Ink Type | Specil UV Ink for SinglePass | ||
| RIP Software | Sai Photoprint | ||
| Image Format | TIF/ JPEG/ EPS/ PDF | ||
| Power Supply | 13KW; AC 200-240V ( ±5% ), 50/ 60HZ | ||
| Size ( L / W / H ) | L3,700 × W1,200 × H1,880 mm ( L146 × W47 × H74 '' ) | ||
| Net Weight | 2,500 KG ( 5512 LB ) | ||
