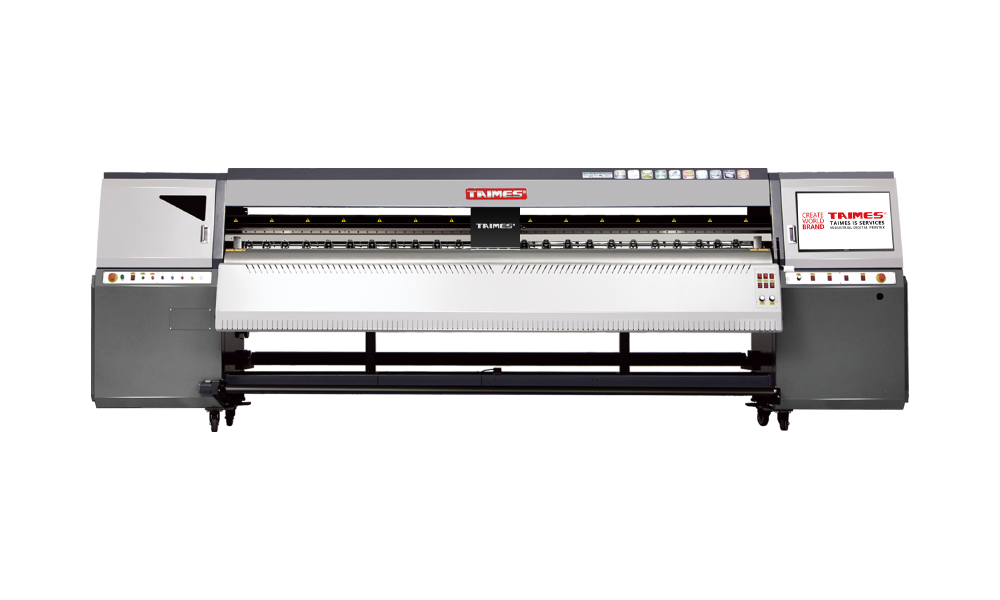

TAIMES T8Q

High-speed industrial mass production solvent printer

UNIFORM MODE

UNIFORM MODE

Cradualistic mode

Cradualistic mode

PRECISION MODE

PRECISION MODE

T8Q
TF-1810-2
TF-1810-2
T8Q
T8Q
T8Q
T8Q
T8Q Print speed parameters
Printhead High speed mode Standard mode High-quality mode Ink Colour
KM1024i-13PL
8 Heads		 540*360 dpi 2 pass
220 sqm/h		 540*720 dpi 3 pass
150 sqm/h		 540*1080 dpi 4 pass
120 sqm/h		 CMYK
KM1024i-30PL
8 Heads		 480*360 dpi 1 pass
480 sqm/h		 480*720 dpi 2 pass
260 sqm/h		 480*1080 dpi 3 pass
174 sqm/h		 CMYK
KM1024i-30PL
4 Heads		 480*360 dpi 1 pass
240 sqm/h		 480*720 dpi 2 pass
130 sqm/h		 480*1080 dpi 3 pass
80 sqm/h		 CMYK
KM512i-30PL
8 Heads		 480*360 dpi 2 pass
230 sqm/h		 480*720 dpi 3 pass
160 sqm/h		 480*1080 dpi 4 pass
120 sqm/h		 CMYK
KM512i-30PL
4 Heads		 480*360 dpi 2 pass
110 sqm/h		 480*720 dpi 3 pass
80 sqm/h		 480*1080 dpi 4 pass
60 sqm/h		 CMYK



T8Q Technical parameter table
Print Control
Print Technology Industrial piezoeiectric inkjet
Ink Types Solvent Ink
RIP Software Photoprint/Maintop
Colour Configuration 4Color(C/M/Y/K)
Operating System Win 7/10/11 64bits
Image Format TIF/JPEG/EPS/PDF
Printhead Height 2-8mm Above Media Adjustable
Printing Materials Car body stickers, light sheets, cloth flags, one-way stickers, light box cloth, roll or single media
Media specifications Maximum Media Width:3300mm（10.8ft）
Print Width Maximum Print Width:3200mm（10.5ft）
Maximum Weight of Material Panel：≤45kg/m
Printing Drying System
UV Curing Lamp Intelligent infrared drying system
Data Interface Hi-Speed USB 3.0
Power Supply
Maximum Power ＞16A；3.5KW
Access Parameter AC220V(±5%)，50HZ/60HZ
Working Conditions
Humidity 40~ 60 % RH ( NO condensing )
Temperature 20~28℃ ( 68 to 82.4℉ ) ；or more recommended no frost
Specification
Machine Dimension/Net Weight L5000*W1230*H1530 mm / Net Weight 800 KGS
Package Dimension/Gross Weight L5100*W1080*H1680 mm / Gross Weight 900 KGS
