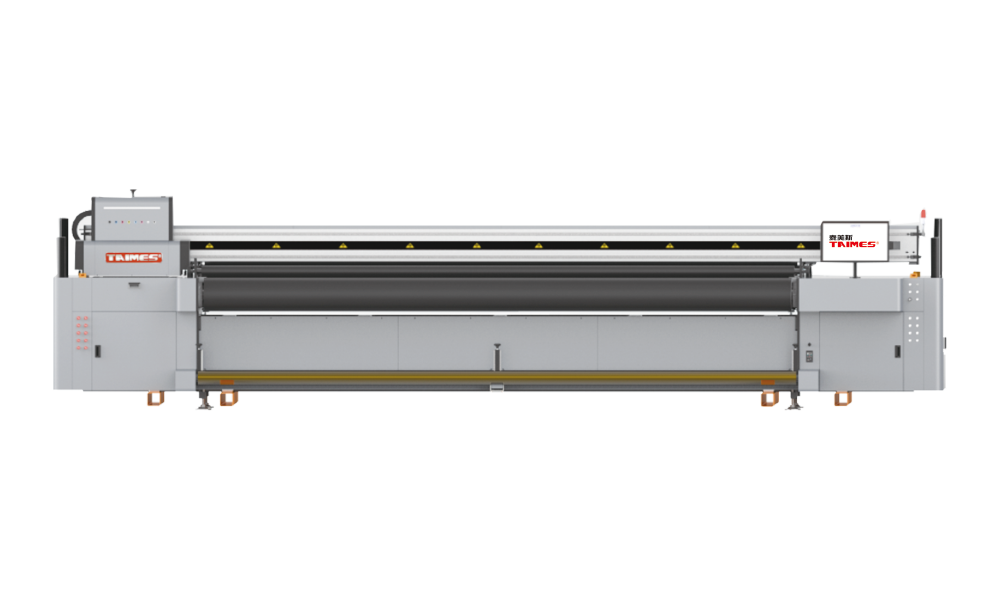

TAIMES TH5300
Large heavy inkjet printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TH5300 Print speed parameters | |||||||
| Print mode | Konica 1024i 6PL | Konica 1024i 13PL | Konica 1024A 6PL | Konica 1024i 6PL | Konica 1024i 13PL | Konica 1024A 6PL | Ink Colour |
| Printhead quanity | 20 | 20 | 20 | 24 | 24 | 24 |  |
| Internal light mode | 100 m²/h | 116 m²/h | 100 m²/h | 150 m²/h | 174 m²/h | 150 m²/h | |
| External light mode | 148 m²/h | 164 m²/h | 148 m²/h | 222 m²/h | 246 m²/h | 222 m²/h | |
| Colour White Colour mode | 50 m²/h | 58 m²/h | 50 m²/h | / | / | / | |
| TH5300 Technical parameter table | |||||||
| Print Control | |||||||
| Print Technology | Industrial piezoeiectric inkjet | ||||||
| Ink Types | Environmentally protective UV ink | ||||||
| RIP Software | PrintFactory | ||||||

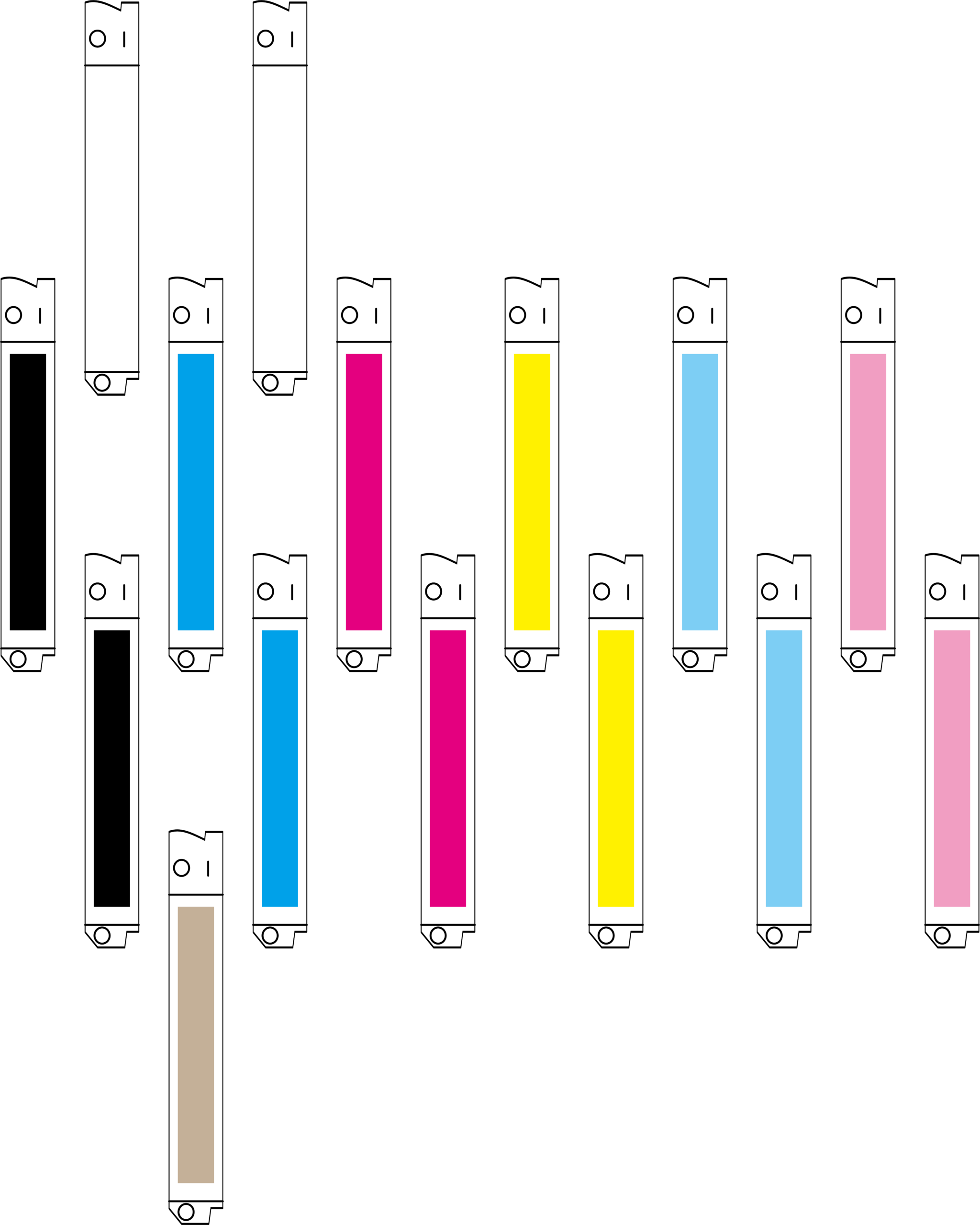

| Colour Configuration | 4Colour/7Colour(M/M/Y/K/Lc/Lm/W/Lk) | ||||||
| Operating System | Win7/10/11 64bits | ||||||
| Image Format | BMP/TIF/JPEG/EPS/PDF | ||||||
| Printhead Height | Maximum printing 5 mm thickness | ||||||
| Printing Materials | Any soft materials such as soft film,backlit film,car sticker,3P cloth,coated banner,canvas,light box cloth,one way vision sticker | ||||||
| Media specifications | Maximum media width 5300mm(17.4ft) | ||||||
| Print Width | Maximum print width 5200mm(17.1ft) | ||||||
| Media storage and retrieval | Roll to roll, automatic receiving and feeding system | ||||||
| Printing Drying System | |||||||
| UV Curing Lamp | Imported LED-UV lamp curing system | ||||||
| Data Interface | Hi-Speed USB 3.0 | ||||||
| Power Supply | |||||||
| Maximum Power | ＞32A;7KW | ||||||
| Access Parameter | AC220V(±10%)，50HZ/60HZ | ||||||
| Working Conditions | |||||||
| Humidity | 30~ 65 % RH ( NO condensing ) | ||||||
| Temperature | 20~30℃ ( 68to 86℉ ) ；or more recommended no frost | ||||||
| Specification | |||||||
| Machine Dimension/Net Weight | L8100*W2400*H2210 mm / Net Weight 6800 KGS | ||||||
| Package Dimension/Gross Weight | L8500*W2600*H2500 mm / Gross Weight 7100 KGS | ||||||
