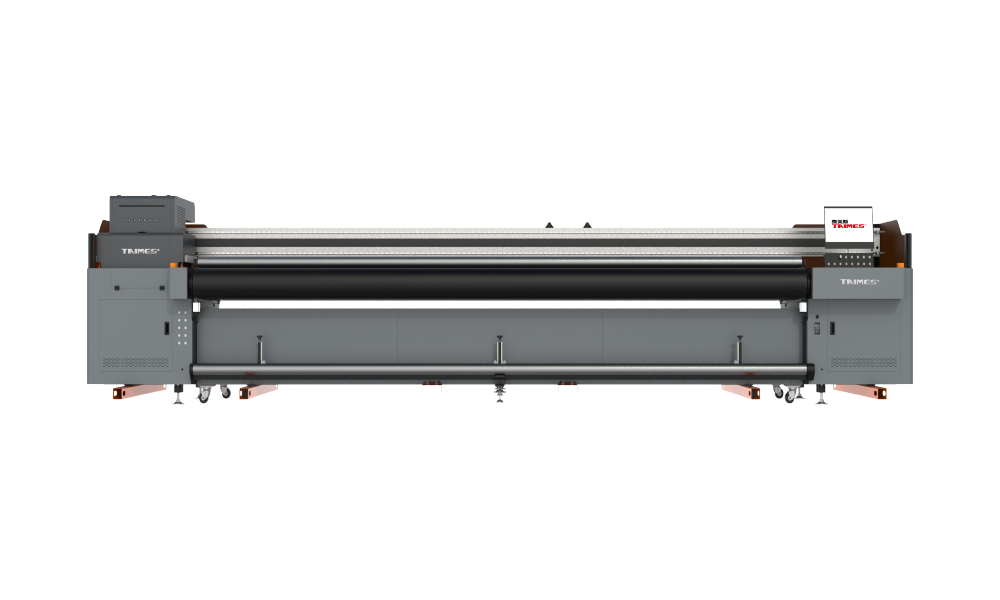

TAIMES TH6600 MAX
Extra large heavy-duty hybrid UV printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES TH6600 MAX | |||||||||||
| Color Configuration | C / M / Y / K / LC / LM / W / LK | |||||||||||
| Print Technology | Industrial Piezoelectric Inkjet | |||||||||||
| Print Head | KONICA 1024i-6PL | KONICA 1024i-13PL | KONICA 1024A-6PL | |||||||||
| Color Scheme | ||||||||||||
| 6 Rows (20 heads) Color White Color |
6 Rows (24 heads) Full Color |
6 Rows (20 heads) Color White Color |
6 Rows (24 heads) Full Color |
6 Rows (20 heads) Color White Color |
6 Rows (24 heads) Full Color |
|||||||
| Internal Light Mode | 127 m²/h | 190 m²/h | 147 m²/h | 221 m²/h | 127 m²/h | 190 m²/h | ||||||
| External Light Mode | 188 m²/h | 282 m²/h | 208 m²/h | 312 m²/h | 188 m²/h | 282 m²/h | ||||||
| Color White Color Mode | 94 m²/h | / | 104 m²/h | / | 94 m²/h | / | ||||||
| Max Printing Size | Width: 6,600 mm ( 260 '' ) | |||||||||||
| Print Height | 48 mm ( Max Printing Weight: ≤ 100 kg/m² ) | |||||||||||
| Media Type | Ultra-transparent film vinyl, Transparent vinyl, Car sticker, Soft film, Backlit film, Canvas, PET, PVC, etc. | |||||||||||
| Ink Type | Environmental friendly UV curable ink(excluding VOC) | |||||||||||
| Curing System | High-quality LED-UV cold light curing lamp | |||||||||||
| RIP Software | PrintFactory color management software imported from Holland | |||||||||||
| Image Format | BMP/ TIF / JPG / PDF/ EPS | |||||||||||
| Power Supply | AC380V ( ±10% )/ 50~60HZ/ 7000W | |||||||||||
| Size / Weight | L9,200 × W1,760 × H1,950 mm ( L362 × W69 × H77 '' ) ; Net Weight 5,100 KG ( 11,244 LB ) | |||||||||||
