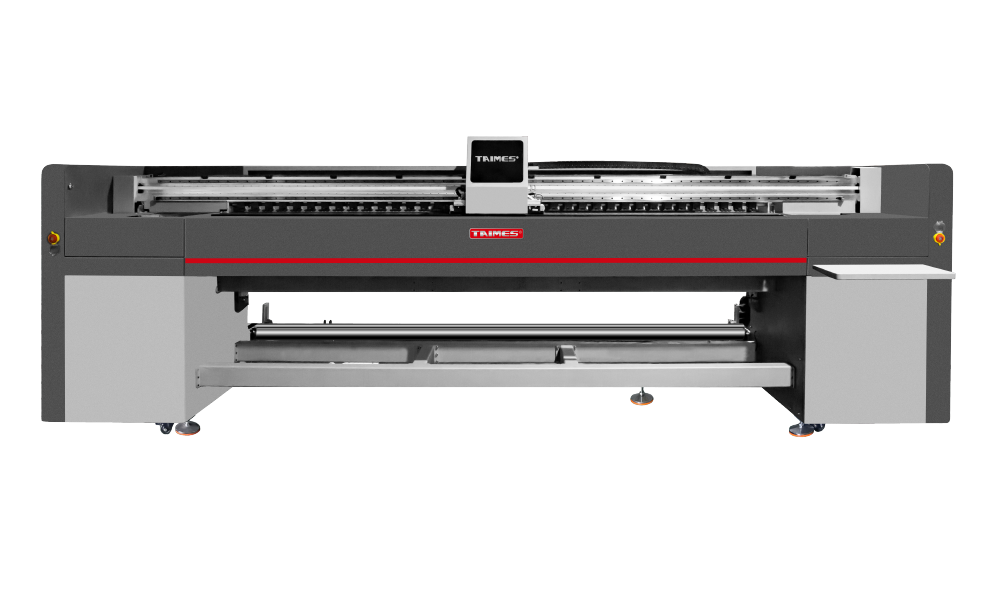

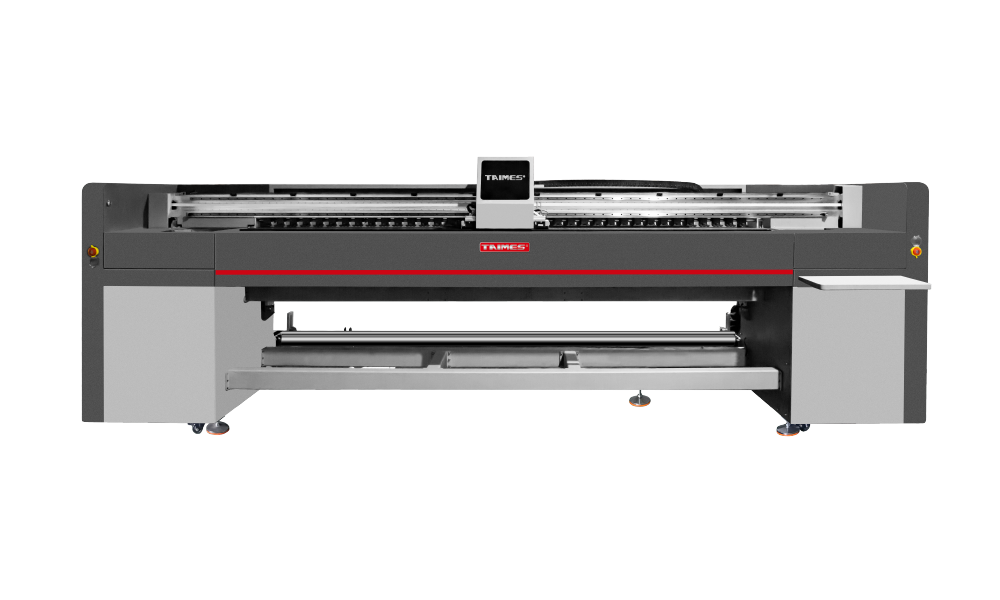

TAIMES T9UV
Brand-New Design 3.2m Deluxe High-Precision UV Roll-to-Roll Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES T9UV | |||||
| Color Configuration | C / M / Y / K / W | |||||
| Print Technology | Industrial Piezoelectric Inkjet | |||||
| Print Head | KONICA 1024A-6PL 8 Heads |
KONICA 1024i-13PL 8 Heads |
||||

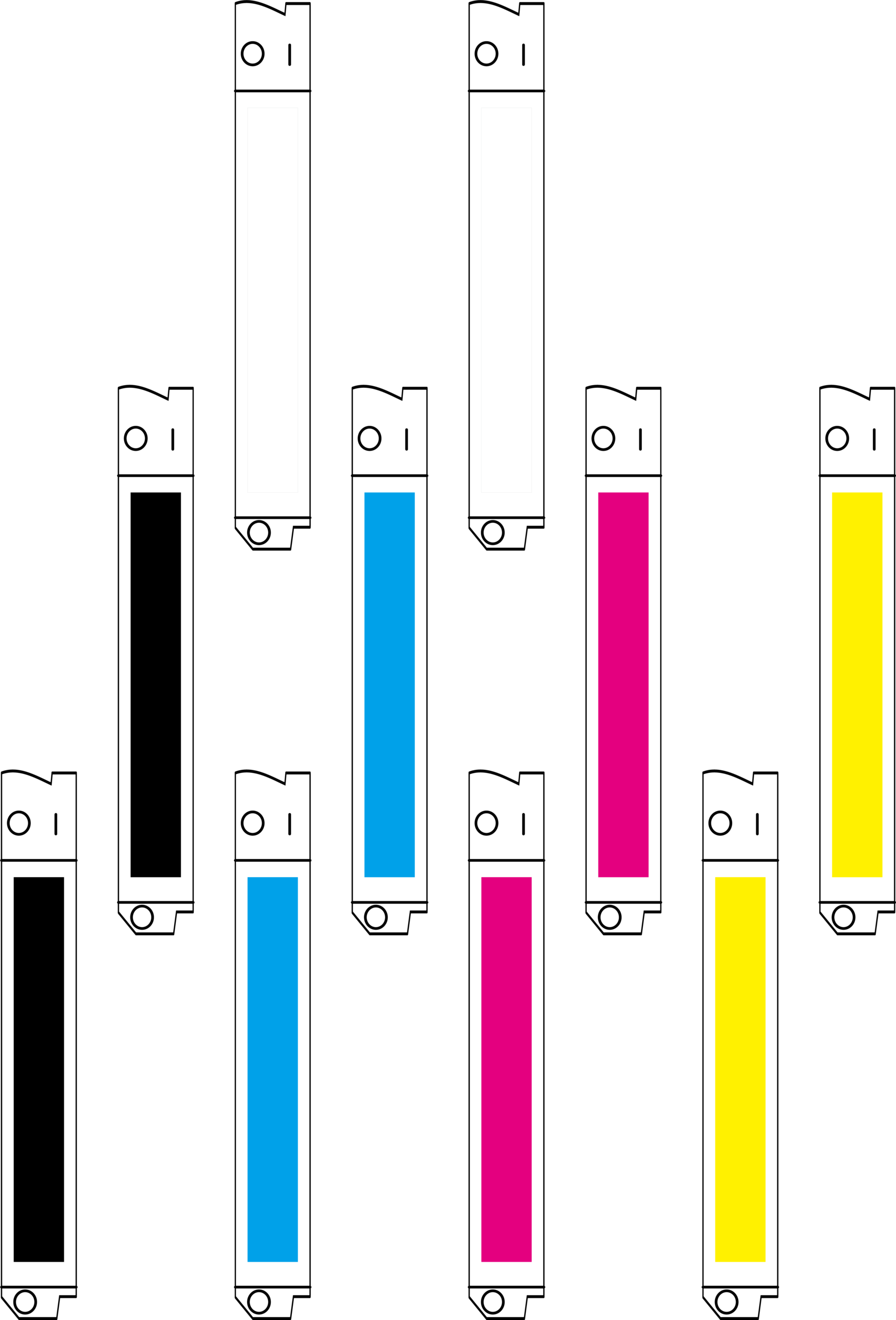

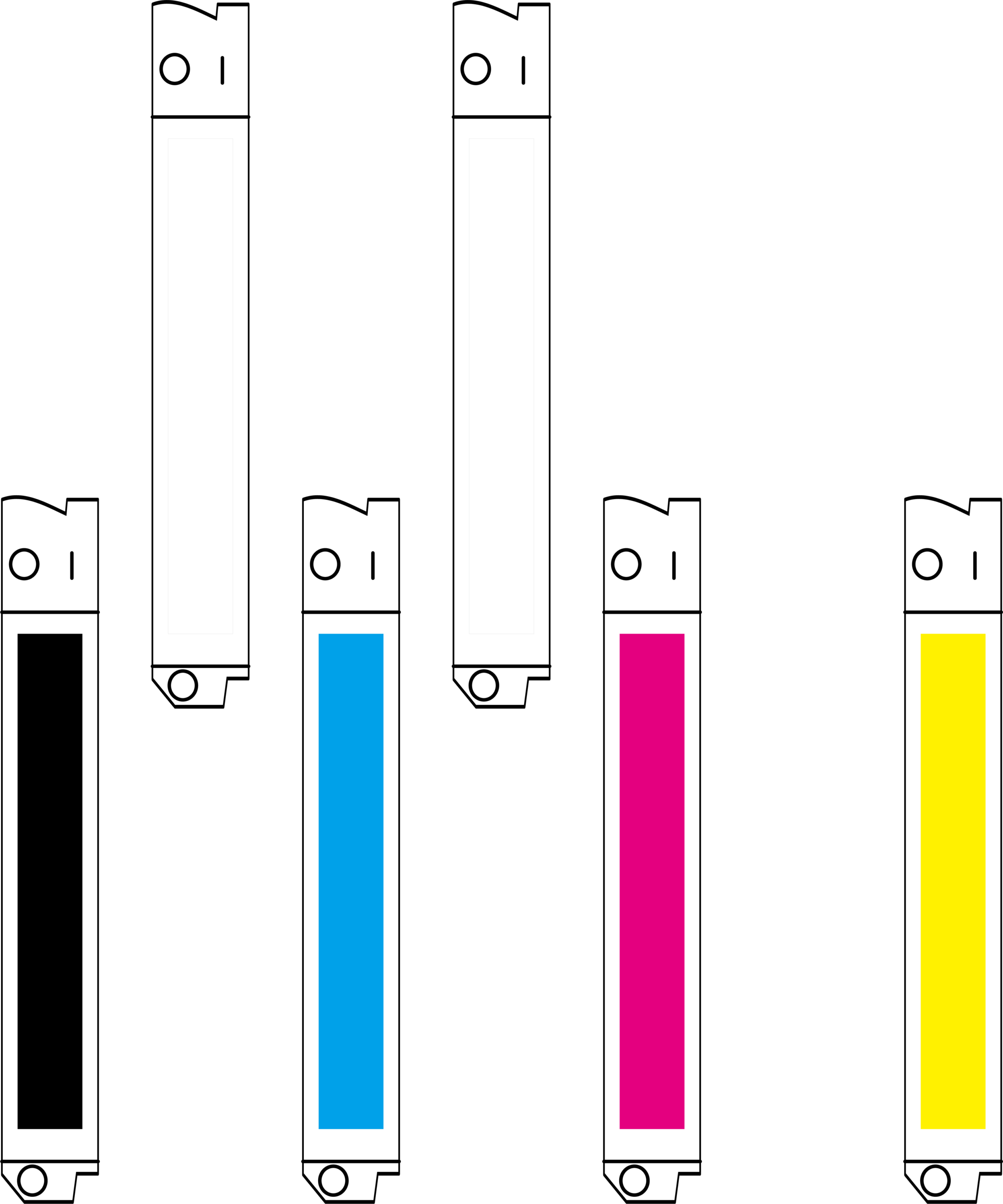

| Color Scheme | ![]() |
![]() |
![]() |
|||
| Two Rows of Four Colors ( Full Color ) |
Two Rows of Five Colors ( White Color ) |
Three Rows of Five Colors ( White Color Color ) |
||||
| Productivity | High Speed | Standard | High-Quality | High Speed | Standard | High-Quality |
| 480×720 dpi 4 pass 56 m²/h |
480×1,080 dpi 6 pass 36 m²/h |
480×1,440 dpi 8 pass 28 m²/h |
540×720 dpi 4 pass 45 m²/h |
540×1,080 dpi 6 pass 30 m²/h |
540×1,440 dpi 8 pass 23 m²/h |
|
| Max Printing Size | Width: 3,200 mm ( 126 '' ) | |||||
| Print Height | 100 mm ( Max Printing Weight: ≤ 100 kg/m² ) | |||||
| Media Type | Any Soft Materials such as Soft Film, Backlit Film, Car Sticker, 3P Cloth, Coated Banner, Canvas, Light Box Cloth, One Way Vision Sticker. | |||||
| Ink Type | Environmentally Friendly UV Ink | |||||
| Curing System | LED Water Cooling System | |||||
| RIP Software | Photoprint / Onyx / Printer Factory / Colorgate | |||||
| Image Format | TIF / JPG / EPS / PDF | |||||
| Power Supply | > 16A, 3.5KW; AC220V ( ±5% ), 50~60HZ | |||||
| Size / Weight | L5,000 × W1,230 × H1,530 mm ( L197 × W48 × H60 '' ) ; Net Weight 850 KG ( 1,962 LB ) | |||||
