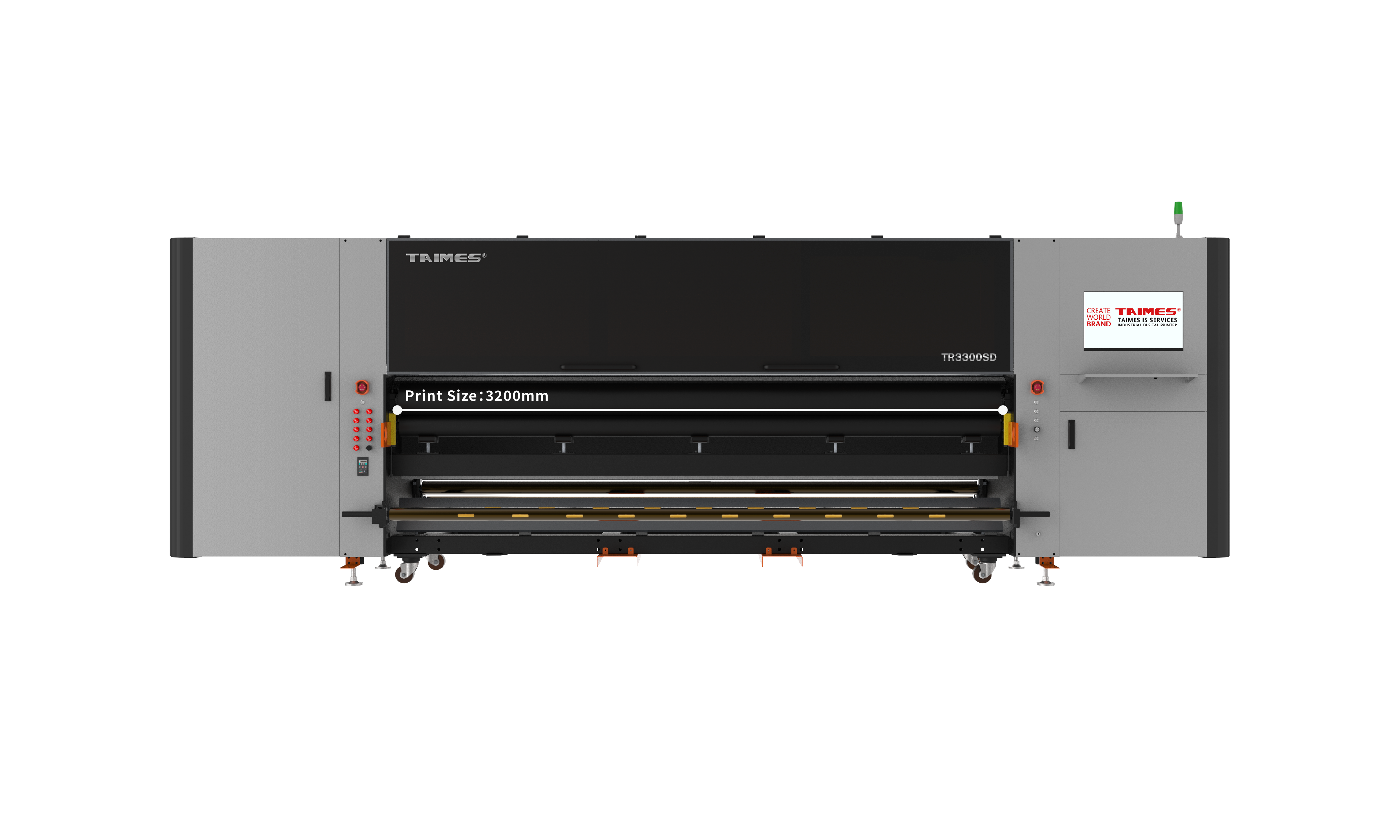

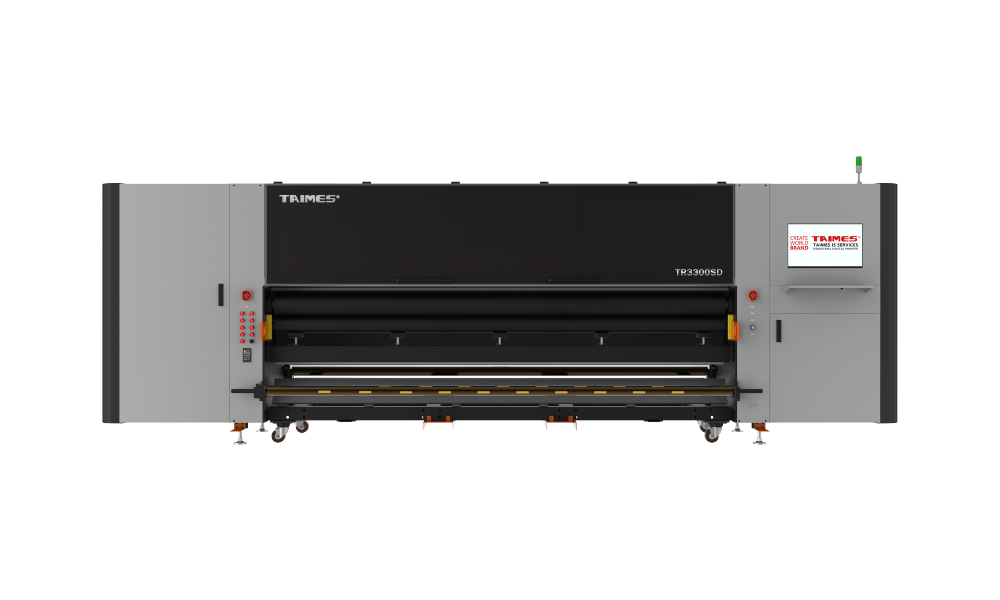

TAIMES TR3300SD

Versatile 3.2-Meter Industrial UV Hybrid Printer

ANTI COLLISION DEVICE

backflow protection

INTELLIGENT FEATHERING

LOW INK ALARM

AUTOMATIC HEIGHT MEASUREMENT

CONTINUOUS PRINTING FUNCTION

NEGA TIVE PRESSURE REGULATION

UV CURING

TR3300SD Print speed parameters
Printhead	Konica 1024i 6PL （3 rows）	Konica 1024i 13PL （3 rows）	Konica 1024A 6PL （3 rows）	Ink Color
Double jet mode	50 m²/h	60 m²/h	50 m²/h
Color white color mode	32 m²/h	38 m²/h	32 m²/h
External light full color mode	100 m²/h	120 m²/h	100 m²/h
Internal light production mode	60 m²/h	75 m²/h	60 m²/h
Internal light quality mode	45 m²/h	57 m²/h	45 m²/h

TR3300SD Technical parameter table
Print Control
Print Technology	Industrial piezoeiectric inkjet
Ink Types	Environmentally protective UV ink
RIP Software	PrintFactory
Color Configuration	4Color/7Color(M/M/Y/K/Lc/Lm/W/Lk)
Operating System	Win7/10/11 64bits
Image Format	BMP/TIF/JPEG/EPS/PDF
Printhead Height	Maximum print thickness 3mm
Printing Materials	Soft materials such as soft film, light strips, car stickers, 3P cloth, knife scraping cloth, oil painting cloth, light box cloth, super transparent stickers, etc
Media specifications	Maximum Media Width 3300mm
Print Size	Maximum Print Width 3200mm
Maximum Weight of Material	Roll to roll, automatic receiving and feeding system
Printing Drying System
UV Curing Lamp	LG LED-UV cold light curing lamp
Data Interface	Hi-Speed USB 3.0
Power Supply
Maximum Power	＞25A;5.5KW
Access Parameter	AC220V(±10%)50HZ/60HZ
Working Conditions
Humidity	30~ 65 % RH ( NO condensing )
Temperature	20~30℃ ( 68to 86℉ ) ；or more recommended no frost
Specification
Machine Dimension/Net Weight	L5850W1360H2000 mm / Net Weight 2800 KGS
Package Dimension/Gross Weight	L6050W1600H2300 mm / Gross Weight 3100 KGS
