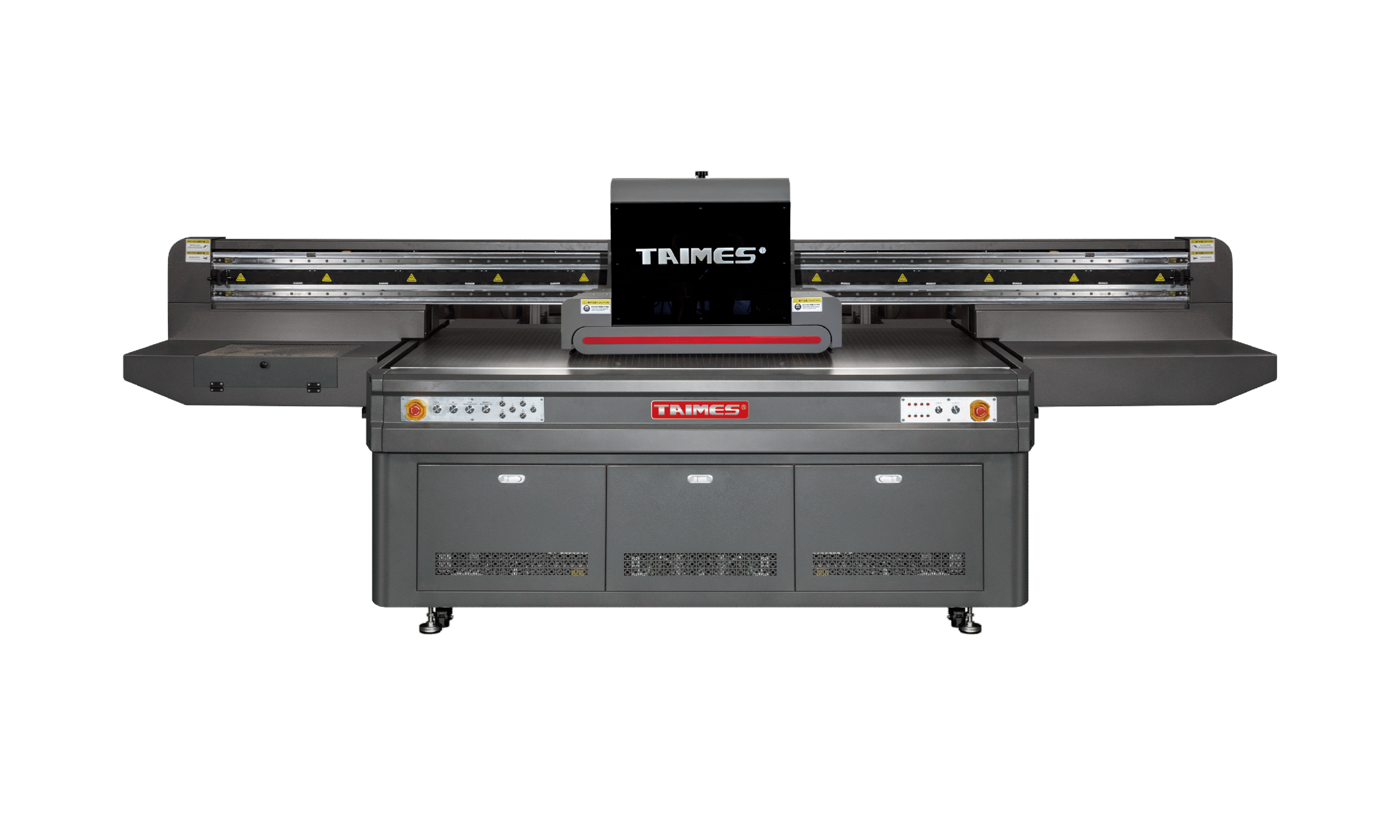

TAIMES TF1810
Magnetic levitation high-speed UV flatbed printer
Previous
Next
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TF1810 Print speed parameters | ||||
| Printhead | High speed mode | Standard mode | High-quality mode | Ink Colour |
| RICOH G5I-3.5PL W+COLOR+VARNISH |
720*600 dpi 4 pass 7.5 sqm/h |
720*900 dpi 6 pass 5.6 sqm/h |
720*1200 dpi 8 pass 3.8 sqm/h |
 |
| RICOH G5I-3.5PL W+COLOR+COLOR |
720*600 dpi 4 pass 13 sqm/h |
720*900 dpi 6 pass 8 sqm/h |
720*1200 dpi 8 pass 6 sqm/h |
 |
| RICOH GEN5-7PL 3/4 Heads |
720*600 dpi 4 pass 14 sqm/h |
720*900 dpi 6 pass 10 sqm/h |
720*1200 dpi 8 pass 6 sqm/h |
|
| TF1810 Technical parameter table | ||||
| Print Control | ||||
| Print Technology | Industrial piezoeiectric inkjet | |||
| Ink Types | Environmentally protective UV ink | |||
| RIP Software | Photoprint/Maintop/Printer Factory/Colorgate | |||
| Colour Configuration | 4colour / 6colou / White / Varnish | |||
| Operating System | Win7/10/11 64bits | |||
| Image Format | TIF/JPEG/EPS/PDF | |||
| Printhead Height | 2~85 mm Above Media Adjustable | |||
| Printing Materials | Wooden panels, Aluminum panels,Door panels, Cardboard, PVC expansion panels, Roof panels, Glass, Ceramics, Acrylic, PVC, etc. | |||
| Media specifications | Panel：1800mm(width) * 1000mm(depth) | |||
| Print Width | Panel：1800mm(width) * 1000mm(depth) | |||
| Maximum Weight of Material | Panel：≤80kg/m | |||
| Printing Drying System | ||||
| UV Curing Lamp | LED Water Cooling System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞20A；4.5KW | |||
| Access Parameter | AC220V(±5%)，50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 35~ 80 % RH ( NO condensing ) | |||
| Temperature | 25~32℃ ( 77 to 90℉ ) ；or more recommended no frost | |||
| Specification | ||||
| Machine Dimension/Net Weight | L2610 * W2380 * H1500 mm / Net Weight 580 KGS | |||
| Package Dimension/Gross Weight | L2860 * W2460 * H1680 mm / Gross Weight 720 KGS | |||
