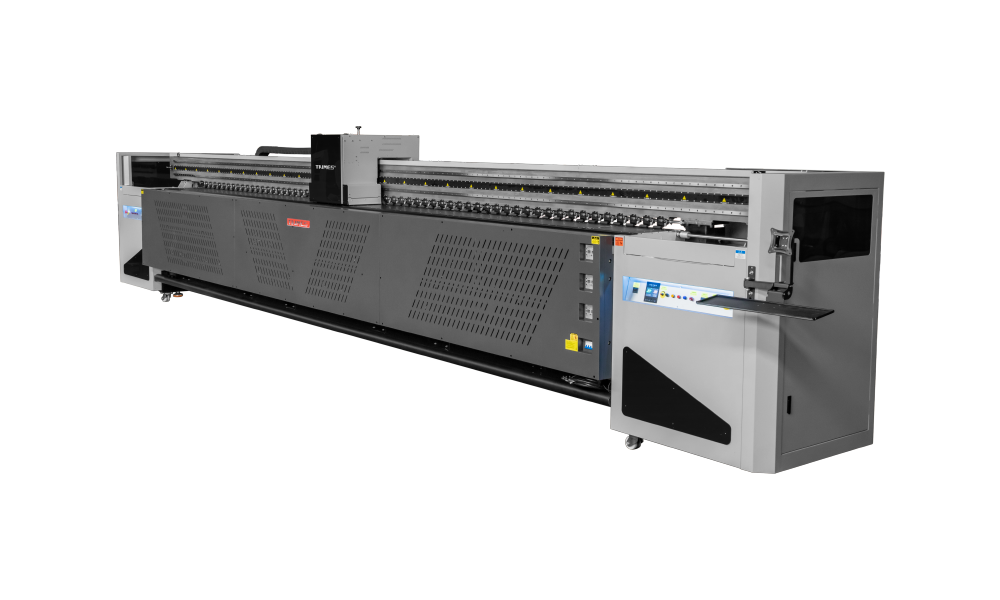

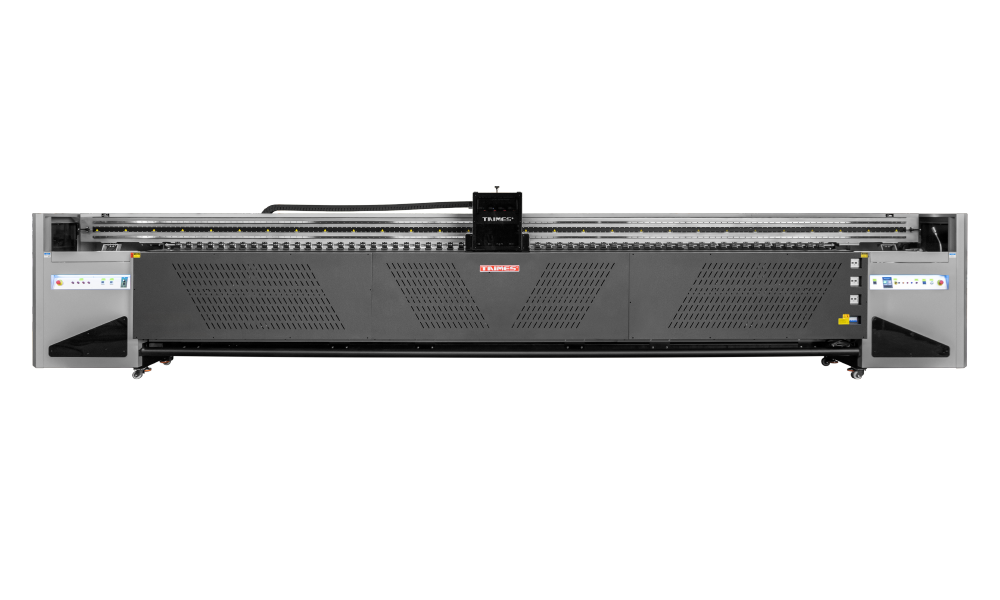

TAIMES T6800 MAX
Jumbo Heavy-Duty Inkjet Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES T6800 MAX | |
| Color Configuration | C / M / Y / K | |
| Print Technology | Industrial Piezoelectric Inkjet | |
| Print Head | SPT-1536 2 Heads | SPT-1536 4 Heads |
| High Speed | 360×360 dpi 2 pass 210 m²/h | 360×360 dpi 2 pass 420 m²/h |
| Standard | 360×540 dpi 3 pass 135 m²/h | 360×540 dpi 3 pass 260 m²/h |
| High-Quality | 360×720 dpi 4 pass 105 m²/h | 360×720 dpi 4 pass 200 m²/h |
| Max Printing Size | Width: 6,800 mm ( 268 '' ) | |
| Print Height | 2~8 mm ( Max Printing Weight: ≤ 100 kg/m² ) | |
| Media Type | Banner Fabric, Car Sticker, Mesh Banner, One-Way Vision, Wallpaper, Photo Paper, PP Adhesive Vinyl. | |
| Ink Type | Solvent Ink | |
| Curing System | Post-preheating, Platen Heating, Infrared Heating & Drying | |
| RIP Software | Standard with MainTop (Photoprint optional) | |
| Image Format | TIF / JPG / EPS / PDF | |
| Power Supply | Printing: 1800W; Heating: 1200W; Drying Fan: 18,000W, 380V | |
| Size / Weight | L8,900 × W1,200 × H1,800 mm ( L350 × W47 × H71 '' ) ; Net Weight 4,500 KG ( 9,921 LB ) | |
