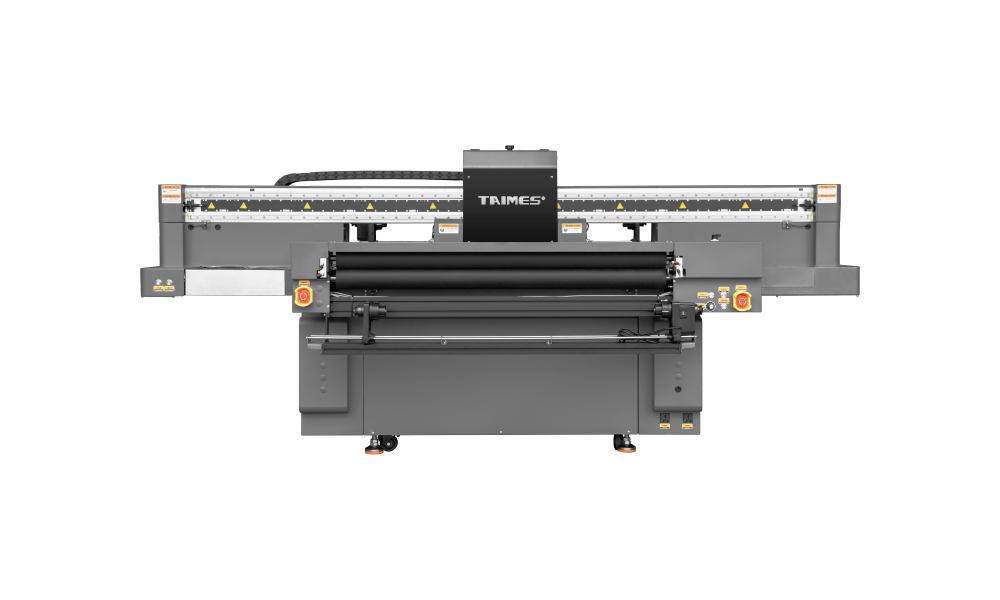

TAIMES TF1361 PRO
MULTIFUNCTIONAL HYBRID UV PRINTER
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES TF1361 PRO | ||||||||||||||
| Color Configuration | C / M / Y / K / LC / LM / W / V / PR | ||||||||||||||
| Print Technology | Industrial Piezoelectric Inkjet | ||||||||||||||
| Print Head | EPSON i3200 | RICOH G6-5PL | RICOH G5-ST | ||||||||||||
| Color Scheme |  |
 |
 |
 |
 |
||||||||||
| Three Rows of Six Colors ( White Color Vranish ) |
Four Rows of Six Colors ( White Color Varnish ) |
Two Rows of Six Colors ( Full Color ) |
Three Rows of Eight Colors ( White Color Varnish ) |
One Row of Six Colors ( Full Color ) |
|||||||||||
| Productivity | 1 ROW | 2 ROWS | 3 ROWS | 1 ROW | 2 ROWS | 1 ROW | |||||||||
| High Speed ( 4 pass ) | 15 m²/h | 28 m²/h | 42 m²/h | 24 m²/h | 45 m²/h | 10 m²/h | |||||||||
| Standard ( 6 pass ) | 10 m²/h | 18 m²/h | 27 m²/h | 15 m²/h | 30 m²/h | 7 m²/h | |||||||||
| High-Quality ( 8 pass ) | 8 m²/h | 14 m²/h | 22 m²/h | 12 m²/h | 22 m²/h | 5 m²/h | |||||||||
| Max Printing Size | ( Width ) 1,300 × ( Depth ) 600 mm; ( Width ) 51 × ( Depth ) 24 '' | ||||||||||||||
| Print Height | 145 mm ( Max Printing Weight: ≤ 80 kg/m² ) | ||||||||||||||
| Media Type | Coil, Sheet, Cylinder. | ||||||||||||||
| Ink Type | Eco-Solvent Ink, Water Based Ink, UV Ink, Sublimation Ink | ||||||||||||||
| Curing System | Pre/ Post Heater ( can be Controlled Separately ) ( Optional ) | ||||||||||||||
| RIP Software | Photoprint / Onyx / Printer Factory / Colorgate | ||||||||||||||
| Image Format | TIF / JPG / EPS / PDF | ||||||||||||||
| Power Supply | > 15A, 3.5KW; AC220V ( ±5% ), 50~60HZ | ||||||||||||||
| Size / Weight | L3,105 × W1,950 × H1,700 mm ( L122 × W77 × H67 '' ) ; Net Weight 740 KG ( 1,631 LB ) | ||||||||||||||
