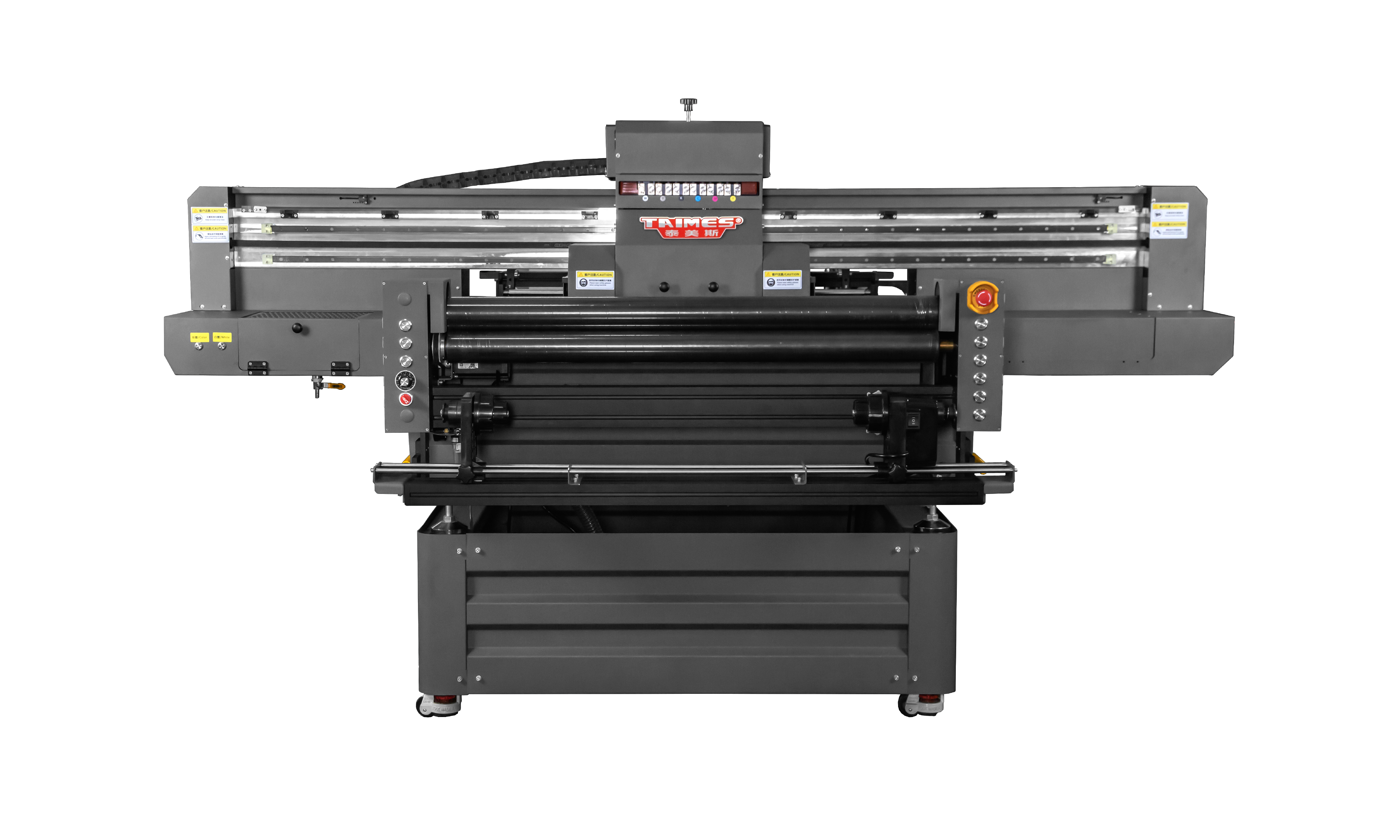

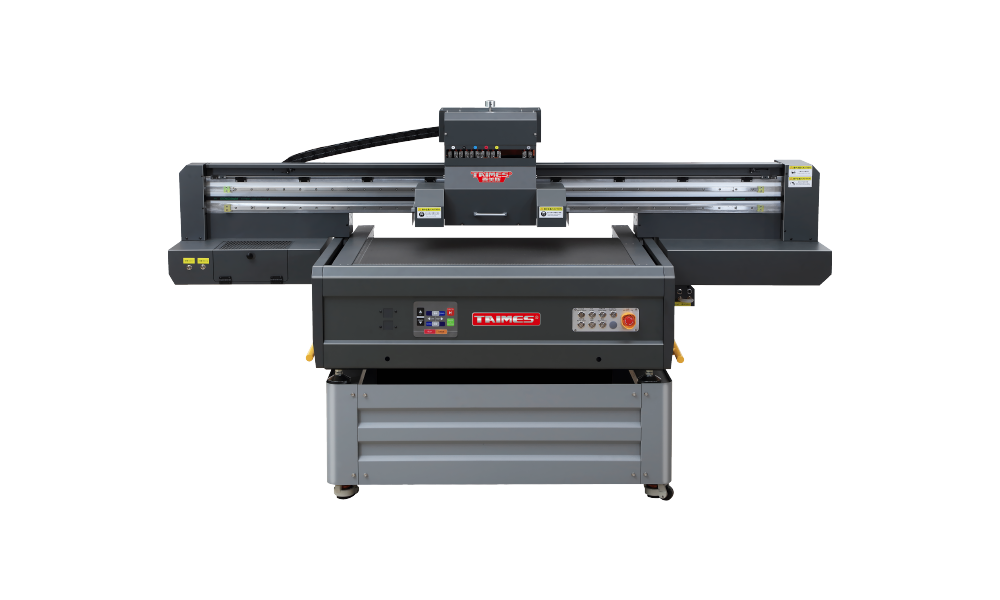

TAIMES TF9060

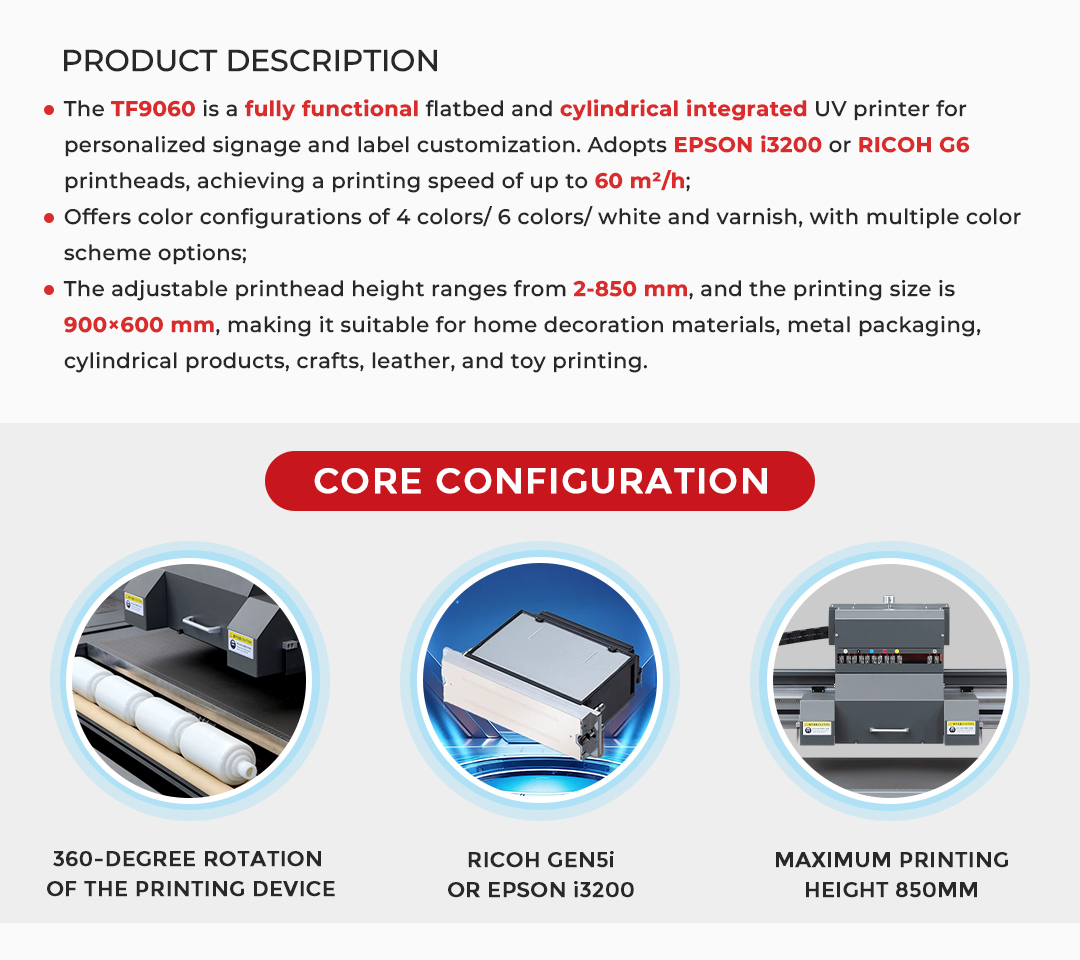

Full function flat cylinder integrated sign personalized UV flatbed printer
Previous
Next
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TF9060 Print speed parameters | ||||
| Printhead | High speed mode | Standard mode | High-quality mode | Ink Colour |
| RICOH GEN5i - 3.5PL W + Colour + Varnish |
720*600 dpi 4 pass 7.5 sqm/h |
720*900 dpi 6 pass 5.6 sqm/h |
720*1200 dpi 8 pass 3.8 sqm/h |
 |
| EPSON i3200 2/3/4 Heads |
720*600 dpi 4 pass 18 sqm/h |
720*900 dpi 6 pass 12 sqm/h |
720*1200 dpi 8 pass 8 sqm/h |
 |
| TF9060 Technical parameter table | ||||
| Print Control | ||||
| Print Technology | Industrial piezoeiectric inkjet | |||
| Ink Types | Environmentally protective UV ink | |||
| RIP Software | Photoprint/Maintop/Printer Factory/Colorgate | |||
| Colour Configuration | 4colour/6colou/White/Varnish optional | |||
| Operating System | Win7/10/11 64bits | |||
| Image Format | TIF/JPEG/EPS/PDF | |||
| Printhead Height | 2~850 mm Above Media Adjustable | |||
| Printing Materials | Wooden panels, Aluminum panels,Door panels, Cardboard, PVC expansion panel, Ceiling panel, Glass, Ceramics, Acrylic, PVC, etc. |
|||
| Media specifications | Panel：940mm(width) * 640mm(depth) | |||
| Print Width | Panel：900mm(width) * 600mm(depth) | |||
| Maximum Weight of Material | Panel：≤45kg/m | |||
| Printing Drying System | ||||
| UV Curing Lamp | LED Water Cooling System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞15A;3.5KW | |||
| Access Parameter | AC220V(±5%)，50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 35~ 80 % RH ( NO condensing ) | |||
| Temperature | 25~32℃ ( 77 to 90℉ ) ；or more recommended no frost | |||
| Specification | ||||
| Machine Dimension/Net Weight | L2818*W1175*H1380 mm / Net Weight 488 KGS | |||
| Package Dimension/Gross Weight | L2960*W1300*H1210 mm / Gross Weight 550 KGS | |||
