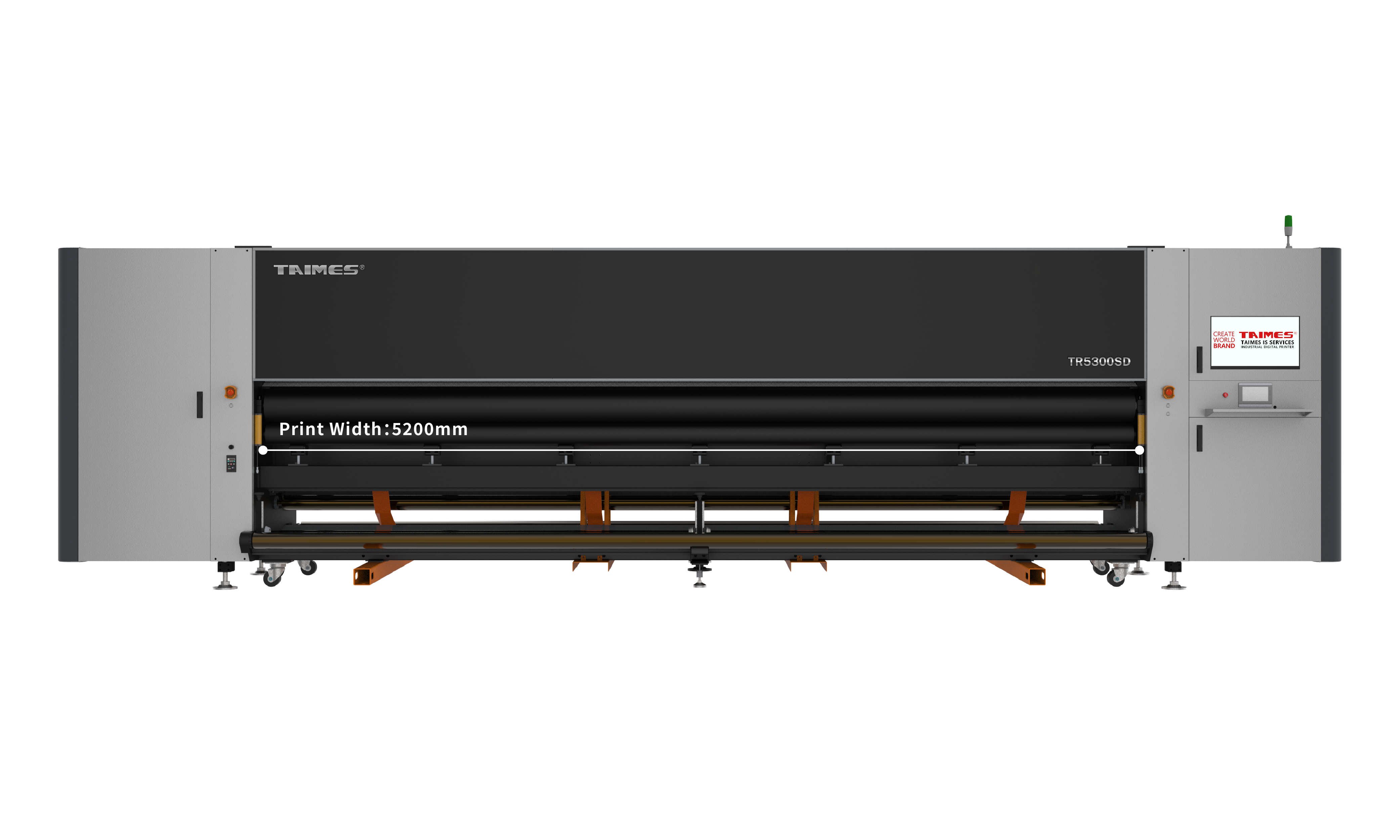

TAIMES TR5300SD
5.3m large double-sided spray UV industrial coil machine
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TR5300SD Print speed parameters | ||||

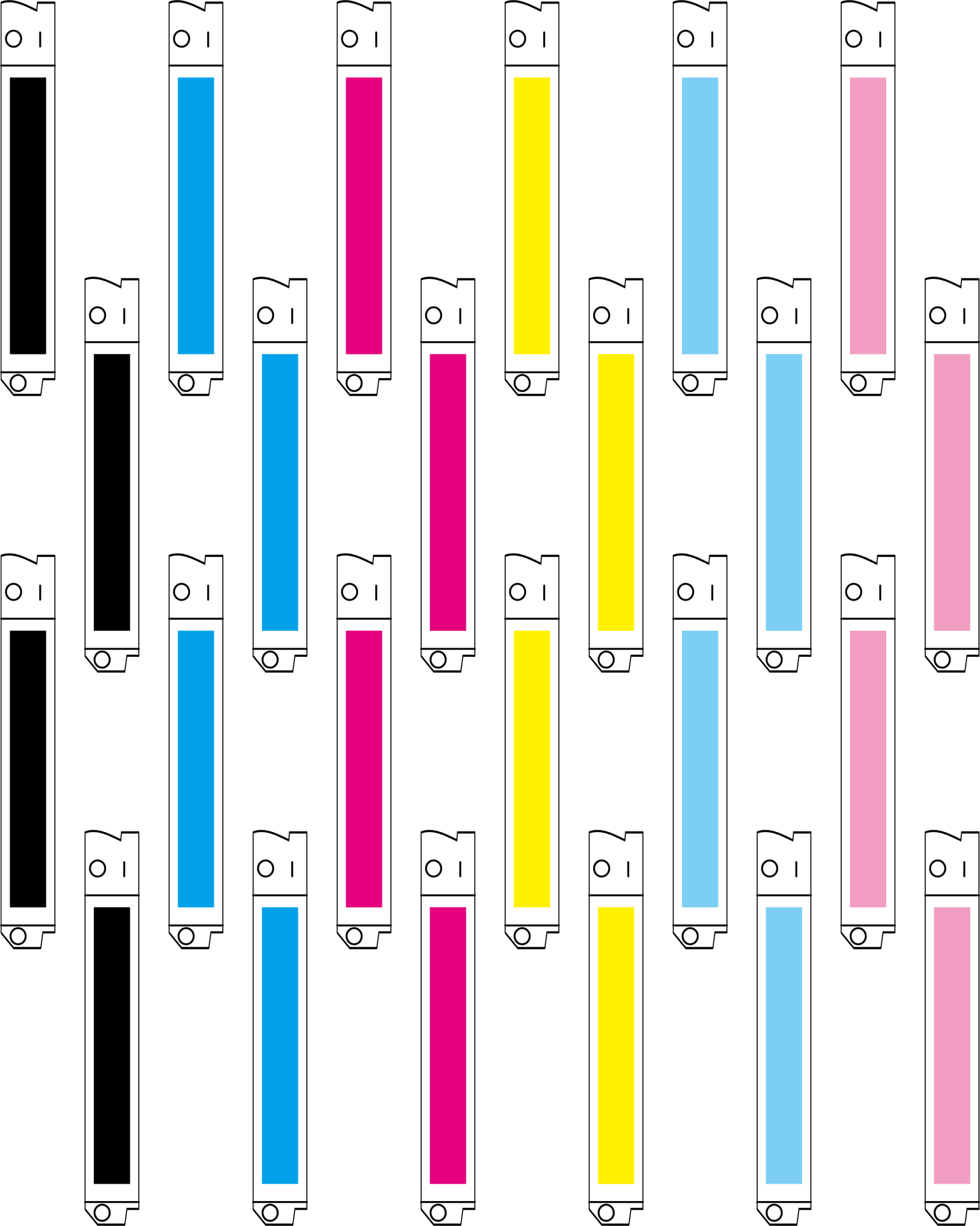

| Printhead | Konica 1024i 6PL (3 Rows) |
Konica 1024i 13PL (3 Rows) |
Konica 1024A 6PL (3 Rows) |
Ink Color |
| Double jet mode | 80 m²/h | 96 m²/h | 96 m²/h | |
| External light full color mode | 160 m²/h | 195 m²/h | 195 m²/h | |
| Internal light production mode | 95 m²/h | 120 m²/h | 120 m²/h | |
| Internal light quality mode | 70 m²/h | 90 m²/h | 90 m²/h | |
| TR5300SD Technical parameter table | ||||
| Print Control | Beijing BYHX control board (Can provide 16 printhead driver card interfaces,capable of supporting up to 32 printheads) | |||
| Print Technology | Industrial piezoeiectric inkjet | |||
| Ink Types | Environmental friendly UV curable ink(excluding VOC) | |||
| RIP Software | PrintFactory | |||

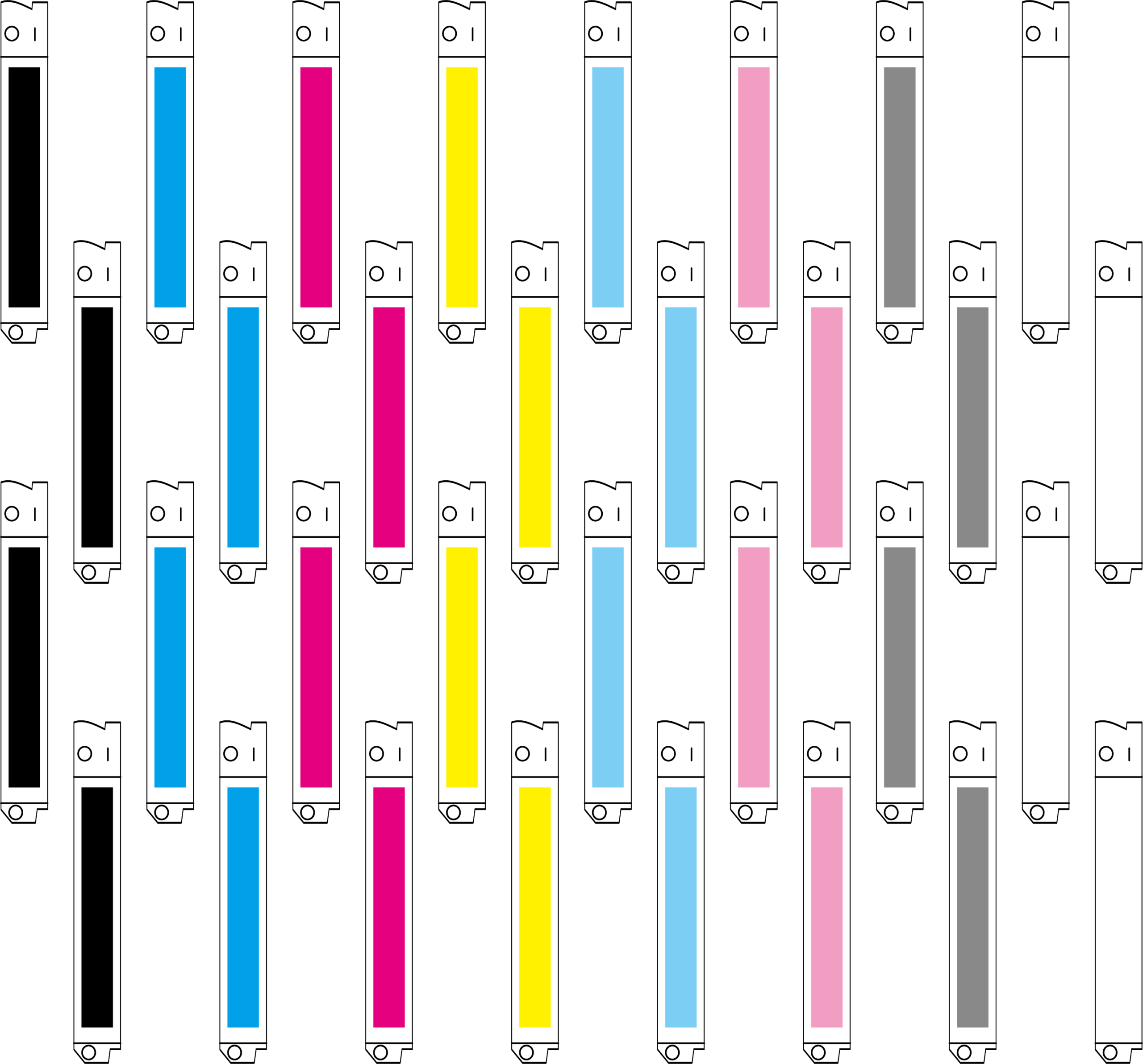

| Color Configuration | 4Color/7Color(M/M/Y/K/Lc/Lm/W/Lk) | |||
| Operating System | Win 10/11 64bits | |||
| Image Format | BMP/TIF/JPG/EPS/PDF | |||
| Printhead Height | Maximum printting 10 mm thickness | |||
| Printing Materials | Any soft materials such as soft film, backlit film,car sticker,3P cloth,coated banner, canvas,light box cloth,one way vision sticker | |||
| Media specifications | Maximum Media Width 5300mm | |||
| Print Size | Maximum Print Width 5200mm | |||
| Media storage and retrieval | Roll to roll, automatic receiving and feeding system | |||
| UV Curing Lamp | LG LED-UV cold light curing lamp | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Maximum Power | ＞25A;6.5KW | |||
| Access Parameter | AC220V(±10%) 50HZ/60HZ | |||
| Temperature/Humidity | Tem：20-30℃ / Hum：30-60% | |||
| Machine Dimension/Net Weight | L8100*W2050*H2350 mm / Net Weight 6000 KGS | |||
| Package Dimension/Gross Weight | L8300*W2250*H2550 mm / Gross Weight 6300 KGS | |||
