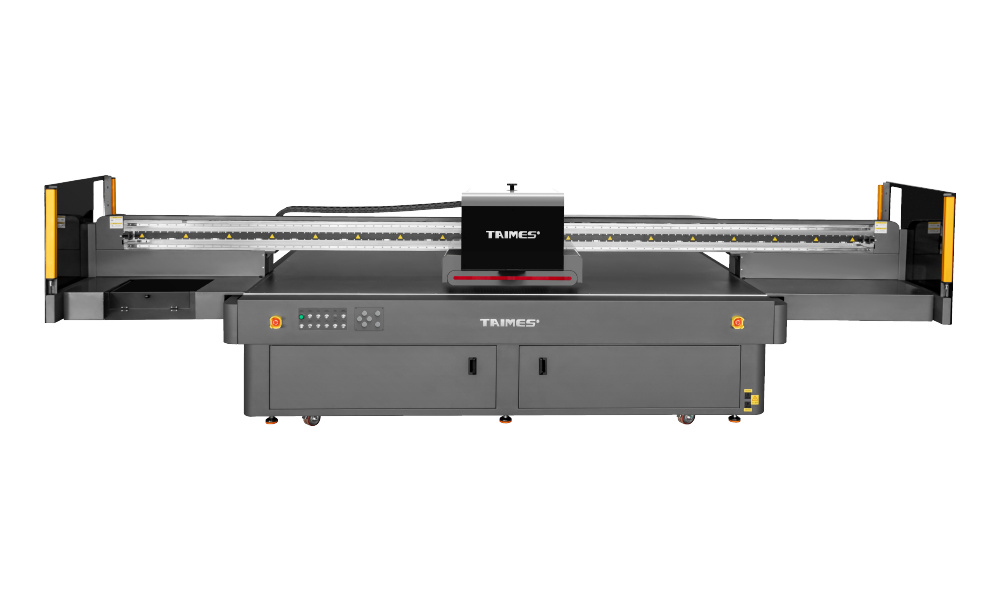

TAIMES TF3225
建材行业板材打印专用UV平板机
Previous
Next
防撞装置
回流保护
智能羽化
缺墨警报
自动测高
连打功能
负压调节
UV固化
| TF3225 Print Speed Parameters | ||||
| 喷头型号 | 高速模式 | 标准模式 | 高画质模式 | 颜色配置 |
| RICOH GEN6 - 5PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 55 m²/h |
720×900 dpi 6 pass 36 m²/h |
720×1,200 dpi 8 pass 26 m²/h |
 |
| RICOH GEN5 - 7PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 35 m²/h |
720×900 dpi 6 pass 27 m²/h |
720×1,200 dpi 8 pass 18 m²/h |
|
| KM1024i - 13PL/6PL 4/5/6/7/8 Heads |
720×720 dpi 4 pass 40 m²/h |
720×900 dpi 6 pass 26 m²/h |
720×1,440 dpi 8 pass 20 m²/h |
 |
| TF3225技术参数表 | ||||
| 打印控制 | RYPC/ HOSON | |||
| 喷墨技术 | Industrial Piezoeiectric Inkjet | |||
| 墨水类型 | Environmentally Protective UV Ink | |||
| RIP软件 | Photoprint/ Maintop/ Printer Factory/ Colorgate | |||
| 颜色配置 | 4 color/ 6 color/ White/ Varnish Optional | |||
| 操作系统 | Win 7/ 10/ 11 64 bits | |||
| 图像格式 | TIF/ JPEG/ EPS/ PDF | |||
| 喷头高度 | 2-100mm Above Media Adjustable | |||
| 打印材料 | Wooden Panels, Aluminum Panels, Door Panels, Cardboard, PVC Expansion Panels, Roof Panels, Glass, Ceramics, Acrylic, PVC, etc | |||
| 介质规格 | 3,250×2,050mm | |||
| 打印宽度 | 3,200×2,000mm | |||
| 最大材料重量 | ≤ 100kg/m | |||
| 画面干燥系统 | UV Ultraviolet Radiation | |||
| UV固化灯 | LED水冷系统 | |||
| 数据接口 | Hi-Speed USB 3.0 | |||
| 电源要求 | ||||
| 最大功率 | ＞ 35A; 7.7KW | |||
| 接入参数 | AC220V(±5%); 50HZ/60HZ | |||
| 运行环境 | ||||
| 湿度 | 35~80% RH (NO condensing) | |||
| 温度 | 25~32℃; or more Recommended NO Frost | |||
| 规格 | ||||
| 机器尺寸/净重 | L5,293×W3,815×H1,631 mm/ 1,350 KG | |||
| 包装尺寸/毛重 | L5,890×W3,945×H1,760 mm/ 1,500 KG | |||
