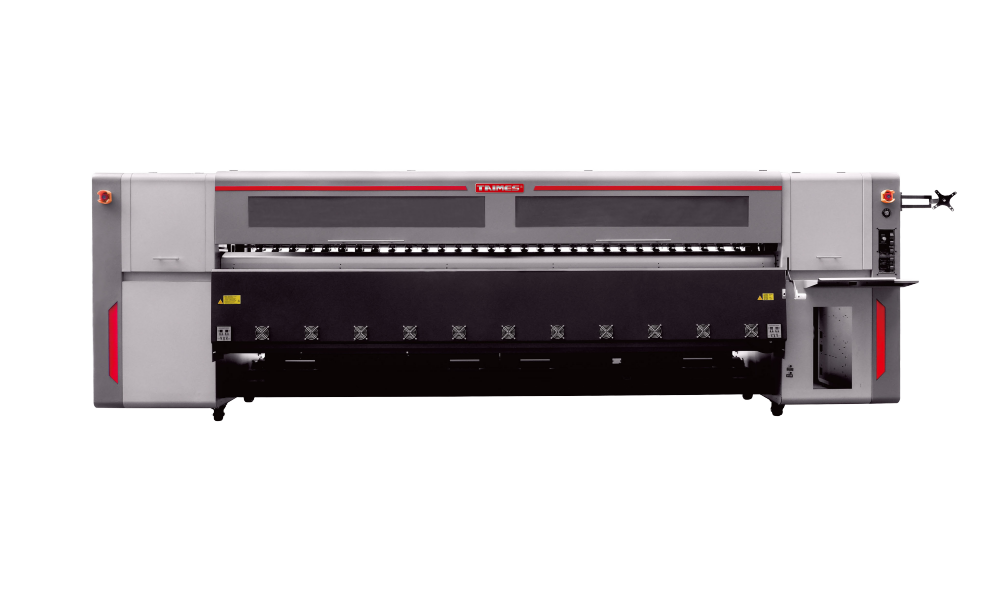

TAIMES T3308
High-Speed Industrial Production Inkjet Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES T3308 | |||||||||||
| Color Configuration | C / M / Y / K | |||||||||||
| Print Technology | Industrial Piezoelectric Inkjet | |||||||||||
| Print Head | KONICA HS2000 6PL 8 Heads |
KONICA 6988H 12PL 8 Heads |
||||||||||
| Color Scheme |  |
 |
 |
|||||||||
| 1 Row of Four Colors ( Full Color ) |
2 Row of Four Colors ( Full Color ) |
3 Rows of Four Colors ( Full Color ) |
||||||||||
| Productivity | High Speed | Standard | High-Quality | High Speed | Standard | High-Quality | ||||||
| 480×360 dpi 1 pass 480 m²/h |
480×720 dpi 2 pass 238 m²/h |
480×1,440 dpi 4 pass 118 m²/h |
480×360 dpi 1 pass 500 m²/h |
480×360 dpi 1 pass 249 m²/h |
480×360 dpi 4 pass 126 m²/h |
|||||||
| Max Printing Size | Width: 3,200 mm ( 126'' ) | |||||||||||
| Print Height | 1~8 mm ( Max Printing Weight: ≤ 100 kg/m² ) | |||||||||||
| Media Type | Fabrics, vinyl, 3P Cloth, Coated Banner, Canvas, Light Box Cloth, One Way Vision Sticker, PVC, Flex Banner, etc. | |||||||||||
| Ink Type | Solvent and Eco Solvent Ink | |||||||||||
| Curing System | Intelligent Heating Control System | |||||||||||
| RIP Software | Flexi/ Maintop / Printer Factory | |||||||||||
| Image Format | TIF / JPG / EPS / PDF | |||||||||||
| Power Supply | > 30A, 7KW; AC220V ( ±5% ), 50~60HZ | |||||||||||
| Size / Weight | L4,800 × W1,000 × H1,500 mm ( L189 × W39 × H59 '' ) ; Net Weight 1,000 KG ( 2,205 LB ) | |||||||||||
