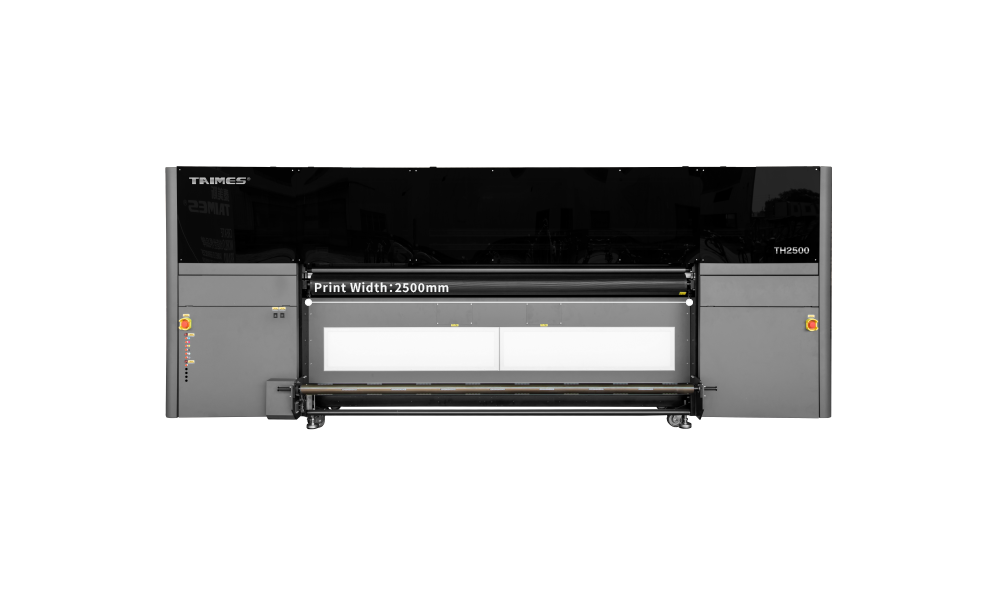

TAIMES TH2500
Industrial UV Hybrid Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TH2500 Print speed parameters | ||||
| Printhead | High speed mode | Standard mode | High-quality mode | Ink Colour |
| RICOH GEN6-7PL 2/3/4/5/6/7/8 Heads |
720*600 dpi 4 pass 21 sqm/h |
720*600 dpi 6 pass 15 sqm/h |
720*1200 dpi 8 pass 11 sqm/h |
 |
| RICOH GEN5 - 7PL 2/3/4/5/6/7/8 Heads |
720*600 dpi 4 pass 14 sqm/h |
720*600 dpi 6 pass 10 sqm/h |
720*1200 dpi 8 pass 8 sqm/h |
|
| KONICA KM1024i-13/6PL 4-16 Heads |
540*720 dpi 4 pass 25 sqm/h |
540*1080 dpi 6 pass 20 sqm/h |
540*1440 dpi 8 pass 15 sqm/h |
|
| TH2500 Technical parameter table | ||||
| Print Control | ||||
| Print Technology | Industrial piezoeiectric inkjet | |||
| Ink Types | Environmentally protective UV ink | |||
| RIP Software | Photoprint/Maintop/Onyx | |||
| Colour Configuration | 4colour/6colou/White/Varnish optional | |||
| Operating System | Win7/10/11 64bits | |||
| Image Format | TIF/JPEG/EPS/PDF | |||
| Printhead Height | 2-70mm Above Media Adjustable | |||
| Printing Materials | Wooden panels, Aluminum panels,Cardboard，Glass,Acrylic，PVC expansion panel，Printing materials: soft film, knife cloth, 3P cloth, leather, leather, lamp, lamp cloth, car sticker, oil painting cloth and other coil materials | |||
| Media specifications | Maximum Media Width 2500mm（10.8ft） | |||
| Print Width | Maximum Print Width 2480mm（10.5ft） | |||
| Maximum Weight of Material | Roll material：≤350kg/m | |||
| Printing Drying System | ||||
| UV Curing Lamp | LED Water Cooling System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞16A;3.5KW | |||
| Access Parameter | AC220V(±5%)，50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 35~ 80 % RH ( NO condensing ) | |||
| Temperature | 25~32℃ ( 77 to 90℉ ) ；or more recommended no frost | |||
| Specification | ||||
| Machine Dimension/Net Weight | L4300*W1175*H1570 mm / Net Weight 950 KGS | |||
| Package Dimension/Gross Weight | L4230*W1080*H1680 mm / Gross Weight 1150 KGS | |||
