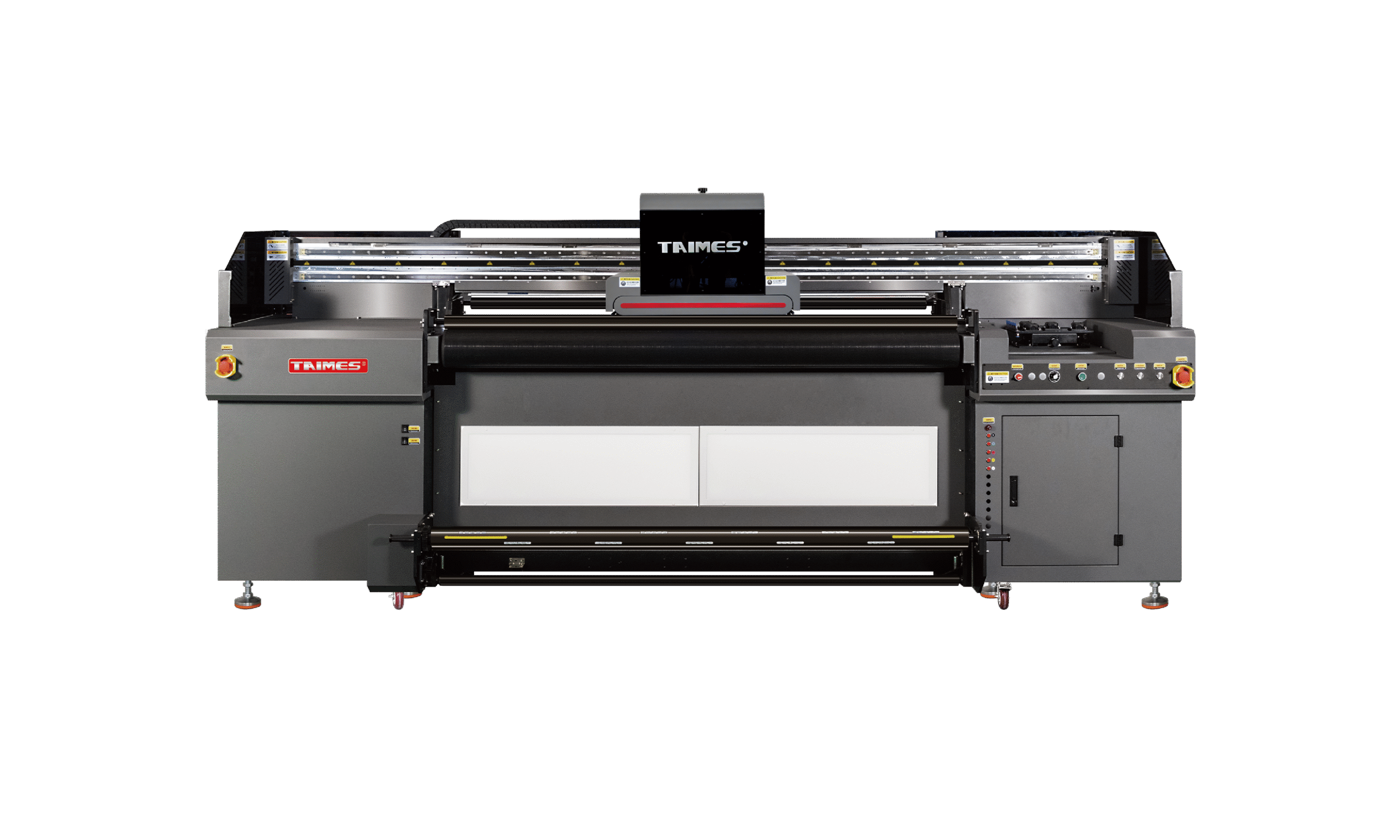

TAIMES TH1900
High performance roll-board machine
Previous
Next
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TH1900 Print Speed Parameters | ||||
| Printhead | High Speed Mode | Standard Mode | High-Quality Mode | Ink Color |
| RICOH GEN6-5PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 21 m²/h |
720×600 dpi 6 pass 15 m²/h |
720×1,200 dpi 8 pass 11 m²/h |
 |
| RICOH GEN5-7PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 14 m²/h |
720×600 dpi 6 pass 10 m²/h |
720×1,200 dpi 8 pass 8 m²/h |
|
| KONICA KM1024i-13PL 4-16 Heads |
540×720 dpi 4 pass 25 m²/h |
540×1,080 dpi 6 pass 20 m²/h |
540×1,440 dpi 8 pass 15 m²/h |
|
| EPSON i3200 1/2/3/4 Heads |
720×1,200 dpi 4 pass 15 m²/h |
720×1,800 dpi 6 pass 11 m²/h |
720×2,400 dpi 8 pass 7.5 m²/h |
 |
| TH1900 Technical Parameter Table | ||||
| Print Control | ||||
| Print Technology | Industrial Piezoeiectric Inkjet | |||
| Ink Types | Environmentally Protective UV Ink | |||
| RIP Software | Photoprint | |||
| Colour Configuration | 4 color/ 6 color/ White | |||
| Operating System | Win7/10/11 64 Bits | |||
| Image Format | TIF/ JPEG/ EPS/ PDF | |||
| Printhead Height | 1-70mm Above Media Adjustable | |||
| Printing Materials | Wooden Panels, Aluminum Panels, Cardboard, Glass, Acrylic, PVC Expansion Panel, Printing Materials, Soft Film, Knife Cloth, 3P Cloth, Leather, Lamp, Lamp Cloth, Car Sticker, Oil Painting Cloth and other Coil Materials | |||
| Media Specifications | Maximum Media Width 1,900mm | |||
| Print Width | Maximum Print Width 1,800mm | |||
| Maximum Weight of Material | ≤ 100kg/m | |||
| Printing Drying System | ||||
| UV Curing Lamp | LED Water Cooling System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞ 30A; 6.5KW | |||
| Access Parameter | AC220V (±5%); 50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 30~65% RH ( NO Condensing ) | |||
| Temperature | 20~30°C(68 to 86°F) ；or more Recommended NO Frost | |||
| Specification | ||||
| Machine Dimension/ Net Weight | L4,430×W1,260×H1,530 mm/ Net Weight 850 KG | |||
| Package Dimension/ Gross Weight | L4,530×W1,330×H1,600 mm/ Gross Weight 1,000 KG | |||
