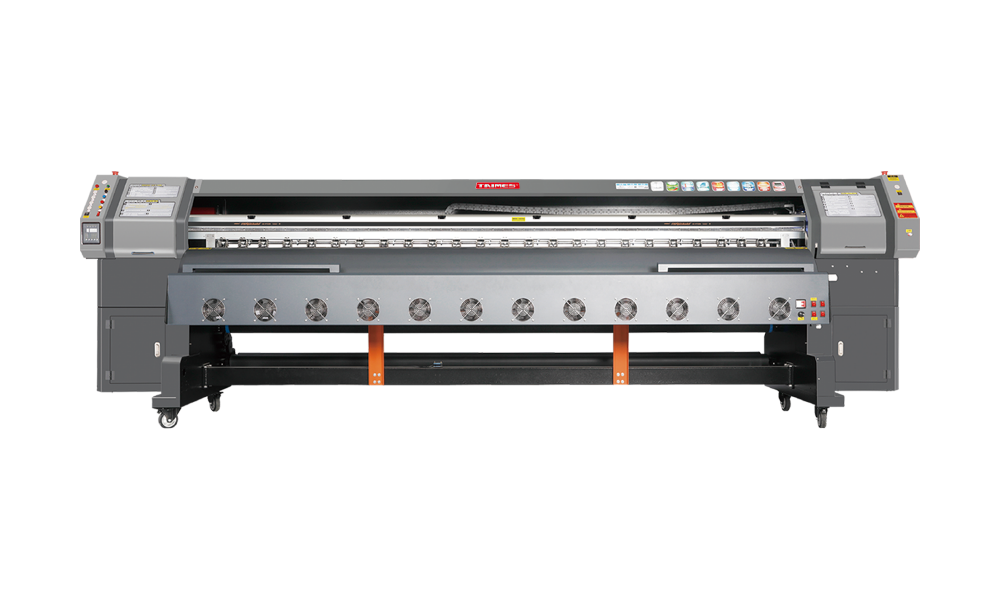

TAIMES T5S
Economical high-speed inkjet printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| T5S Print Speed Parameters | ||||
| Printhead | High Speed Mode | Standard Mode | High-Quality Mode | Ink Color |
| KONICA 1024i-13PL 8 Heads |
480×720 dpi 2 pass 220 m²/h |
540×720 dpi 3 pass 150 m²/h |
540×720 dpi 4 pass 120 m²/h |
 |
| KONICA 1024i-30PL 8 Heads |
480×360 dpi 1 pass 480 m²/h |
480×720 dpi 2 pass 260 m²/h |
480×1080 dpi 3 pass 175 m²/h |
|

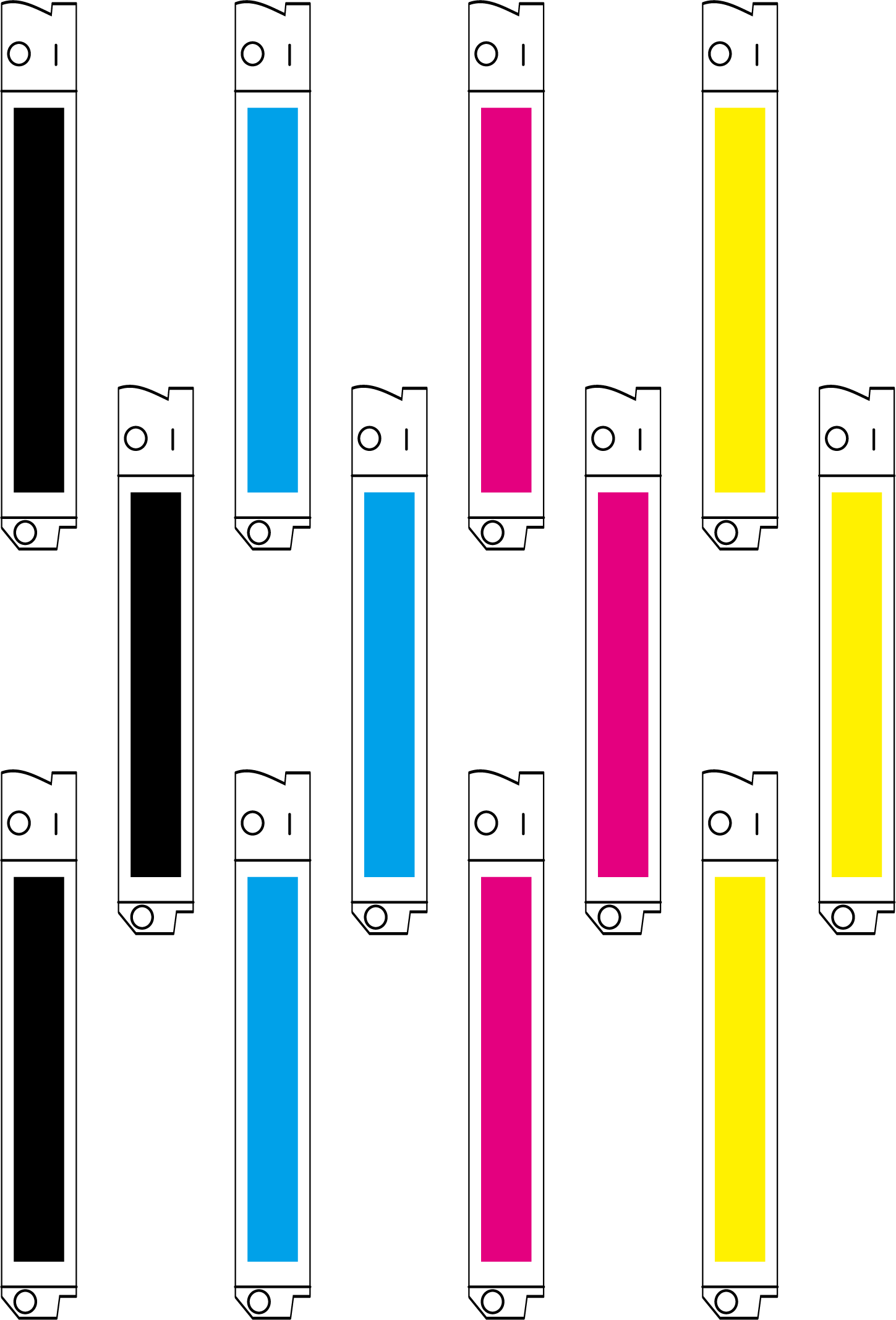

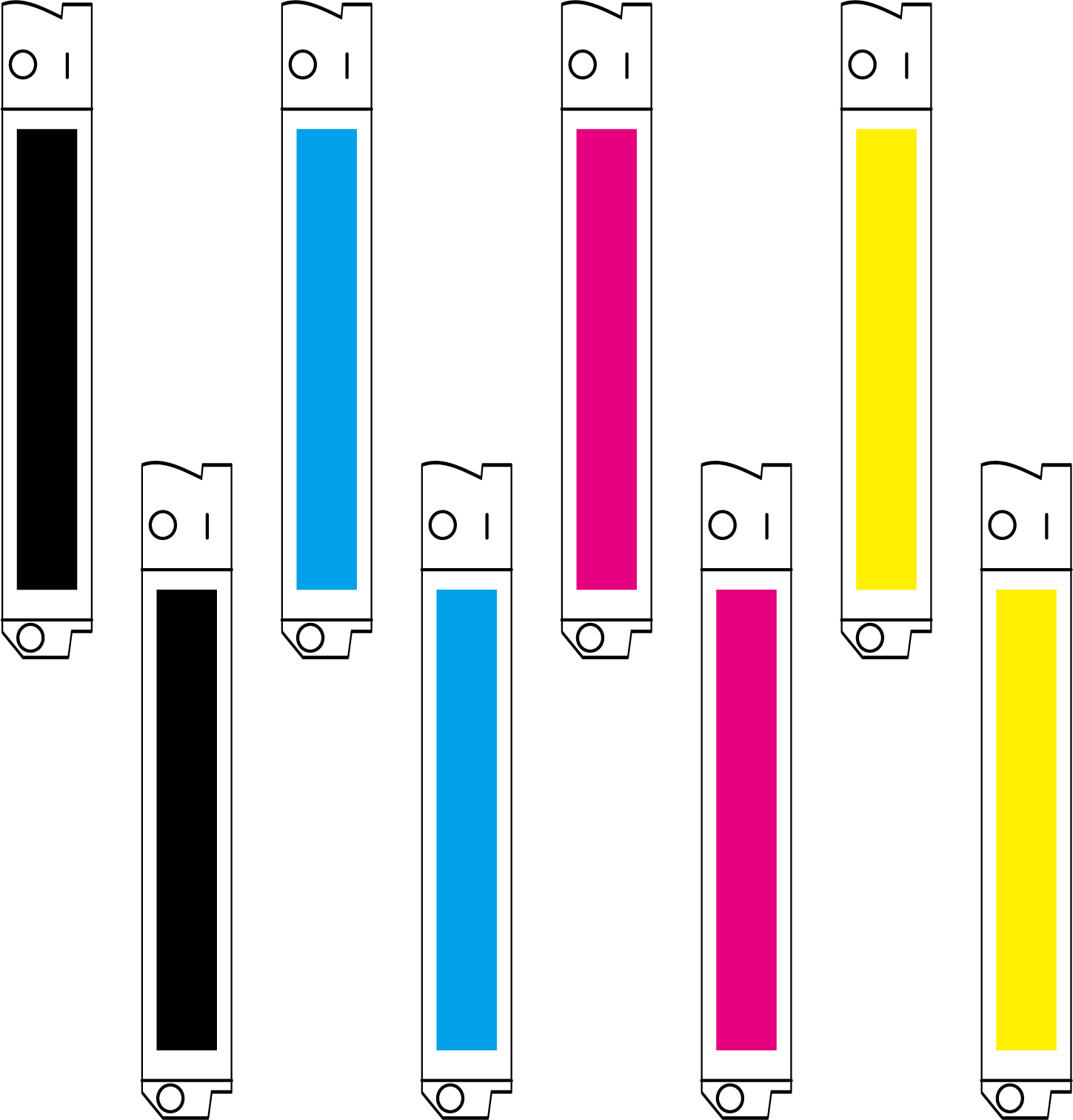

| KONICA 512i-30PL 8 Heads |
480×720 dpi 2 pass 230 m²/h |
480×1080 dpi 3 pass 160 m²/h |
480×720 dpi 4 pass 120 m²/h |
|
| T5S Technical Parameter Table | ||||
| Print Control | ||||
| Print Technology | Industrial Piezoelectric Inkjet | |||
| Ink Types | Solvent Ink | |||
| RIP Software | Photoprint/ Maintop | |||

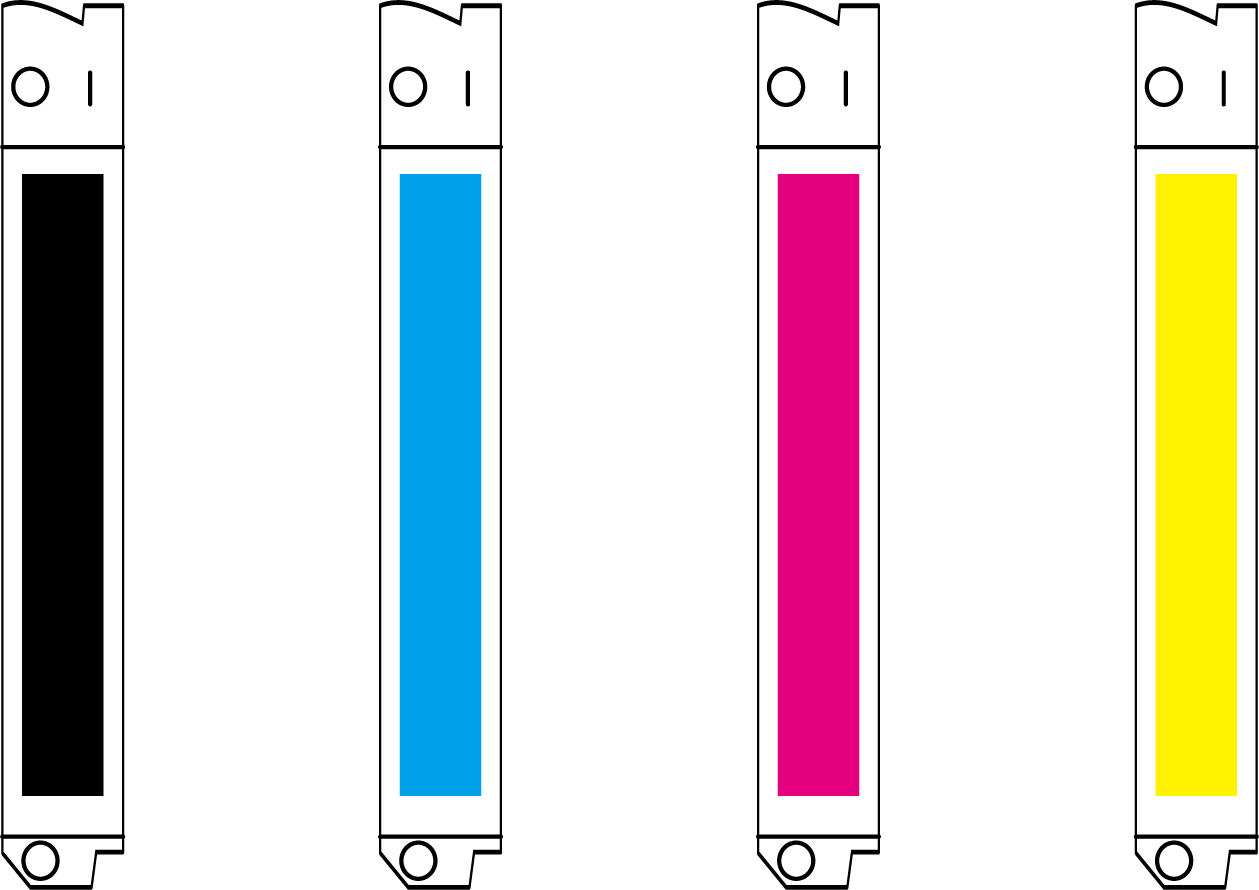

| Color Configuration | 4 Color（ C/ M/ Y/ K ） | |||
| Operating System | Win 7/ 10/ 11 64 Bits | |||
| Image Format | TIF/ JPEG/ EPS/ PDF | |||
| Printhead Height | Above Media Adjustable 2~8 mm | |||
| Printing Materials | Vinyl, Flex, Polyester, Back-lit Film, Window Film, etc. | |||
| Media specifications | Maximum Media Width: 3,300 mm | |||
| Print Width | Maximum Print Width: 3,200 mm | |||
| Maximum Weight of Material | Panel：≤45 kg/m² | |||
| Printing Drying System | ||||
| UV Curing Lamp | Intelligent infrared drying system | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞16A；3.5KW | |||
| Access Parameter | AC220V(±5%)，50HZ/ 60HZ | |||
| Working Conditions | ||||
| Humidity | 40~60% RH ( no Condensing ) | |||
| Temperature | 20~28℃；or more Recommended no Frost | |||
| Specification | ||||
| Machine Dimension/ Weight | L4,360×W790×H1,170 mm/ 800 KG | |||
| Package Dimension/ Weight | L4,700×W1,040×H1,090 mm/ 850 KG | |||
