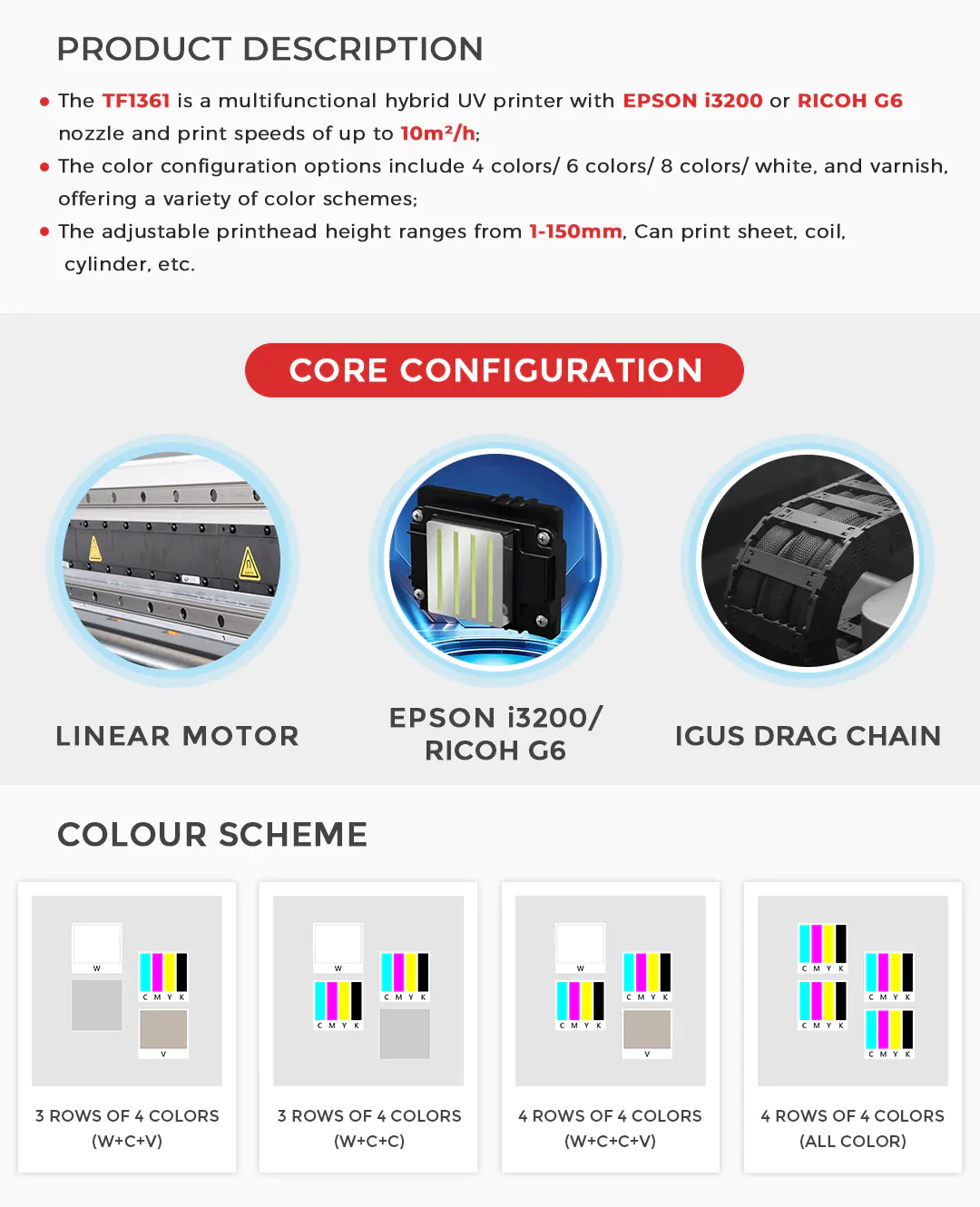

TAIMES TF1361
MULTIFUNCTIONAL HYBRID UV PRINTER
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TF1361 Print Speed Parameters | ||||
| Printhead | High Speed Mode | Standard Mode | High-Quality Mode | Ink Color |
| RICOH G6 3/4/5/6 Heads |
720×600 dpi 4 pass 14 m²/h |
720×900 dpi 6 pass 11 m²/h |
720×1,200 dpi 8 pass 7 m²/h |
 |
| EPSON i3200 3/4 Heads |
720×600 dpi 4 pass 8 m²/h |
720×900 dpi 6 pass 5 m²/h |
720×1,200 dpi 8 pass 4 m²/h |
|
| TF1361 Technical Parameter Table | ||||
| Print Control | ||||
| Print Technology | Industrial Piezoeiectric Inkjet | |||
| Ink Types | Eco-Solvent Ink, Water Based Ink, UV Ink, Sublimation Ink | |||
| RIP Software | Photoprint/ Maintop/ Printer Factory/ Colorgate | |||
| Color Configuration | C/ M/ Y/ K/ Lc/ Lm/ Ly/ Lk/ W/ V | |||
| Operating System | 4 Color/ 6 Color/ 8 Color/ White/ Varnish Optional | |||
| Image Format | TIF / JPEG / EPS / PDF | |||
| Printhead Height | 1-145mm Above Media Adjustable | |||
| Printing Materials | Coil, Sheet, Cylinder | |||
| Output Stacker | 1.Power motor paper receiving system (optional) maximum load 65KG; 2.Leather materials special single- roll receiving system(optional) maximum load 100KG; 3.High weight coil airexpansion shaft take- up system (optional) maximum load 200KG. |
|||
| Print Size | 1,220×600mm | |||
| Maximum Weight of Material | ≤ 100kg/m | |||
| Drying System | Pre/Post Heater (Can be Controlled Separately) (Optional) | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞ 15A; 3.5KW | |||
| Access Parameter | AC220V (±5%); 50HZ/60HZ | |||
| Working Conditions | Printer: 1,600W; Turbofan: 1,500W | |||
| Humidity | 35~65% RH (NO Condensing) | |||
| Temperature | 20~35℃; or more Recommended NO Frost | |||
| Specification | ||||
| Machine Dimension/ Net Weight | L3,050×W1,820×H1,420 mm/ Net Weight 680 KG | |||
| Package Dimension/ Gross Weight | L3,150×W1,850×H1,550 mm/ Gross Weight 860 KG | |||
