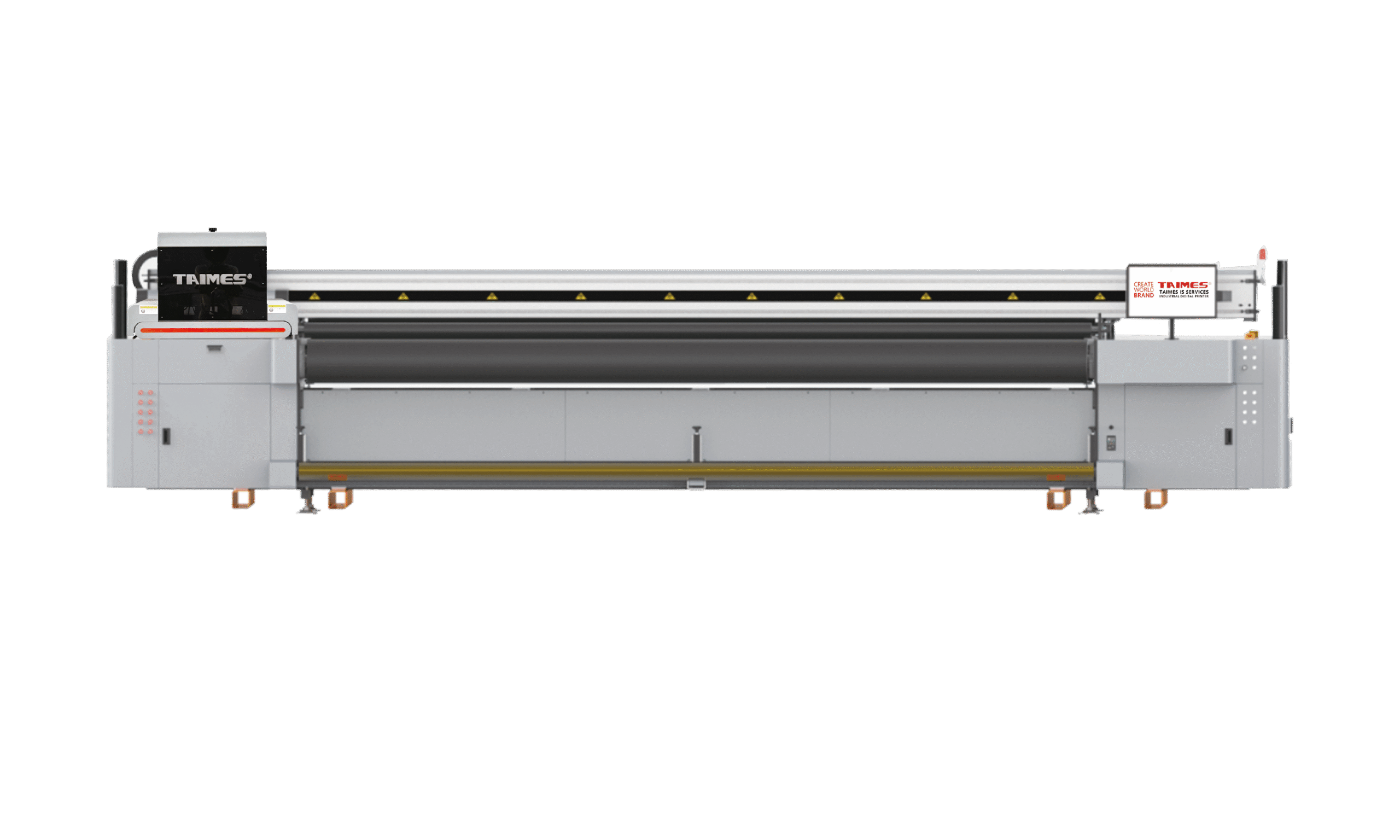

TAIMES TH6800
Ultra high performance UV hybrid printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TH6800 Print speed parameters | |||||||
| Print mode | Colour White Colour(6 rows) | Full Colour(6 rows) | Ink Colour | ||||
| Printhead style | Konica 1024i(13PL) |
Konica 1024i(6PL) |
Konica 1024A(6PL) |
Konica 1024i(13PL) |
Konica 1024i(6PL) |
Konica 1024A(6PL) |
 |
| Printhead quanity | 20 | 20 | 20 | 24 | 24 | 24 | |
| Full colour interior light mode | 147 m²/h | 127 m²/h | 147 m²/h | 221 m²/h | 190 m²/h | 221 m²/h | |
| Full colour exterior light mode | 208 m²/h | 188 m²/h | 208 m²/h | 312 m²/h | 282 m²/h | 312 m²/h | |
| Color White Colour Mode | 104 m²/h | 94 m²/h | 104 m²/h | / | / | / | |
| TH6800 Technical parameter table | |||||||
| Print Control | |||||||
| Print Technology | Industrial piezoeiectric inkjet | ||||||
| Ink Types | Environmentally protective UV ink | ||||||
| RIP Software | Printer Factory | ||||||
| Colour Configuration | 4colour/6colou/White/Varnish/Lc/Lm/Lk optional | ||||||
| Operating System | Win7/10/11 64bits | ||||||
| Image Format | BMP/TIF/JPEG/EPS/PDF | ||||||
| Printhead Height | Maximum print thickness 48mm | ||||||
| Printing Materials | Soft materials such as soft film, light strips, car stickers, 3P cloth, knife scraping cloth, oil painting cloth, light box cloth, super transparent stickers, etc | ||||||
| Media specifications | Maximum media width 6800mm(22.3ft) | ||||||
| Print Width | Maximum print width 6600mm(21.7ft) | ||||||
| Media storage and retrieval | Roll to roll, automatic receiving and feeding system | ||||||
| Printing Drying System | |||||||
| UV Curing Lamp | Imported LG LED-UV cold light curing lamp | ||||||
| Data Interface | Hi-Speed USB 3.0 | ||||||
| Power Supply | |||||||
| Maximum Power | ＞20A;7KW | ||||||
| Access Parameter | AC380V(±5%)，50HZ/60HZ | ||||||
| Working Conditions | |||||||
| Humidity | 30~ 65 % RH ( NO condensing ) | ||||||
| Temperature | 20~30℃ ( 68to 86℉ ) ；or more recommended no frost | ||||||
| Specification | |||||||
| Machine Dimension/Net Weight | L9440*W2400*H2210 mm / Net Weight 7500 KGS | ||||||
| Package Dimension/Gross Weight | L10000*W2600*H2500 mm / Gross Weight 7800 KGS | ||||||
