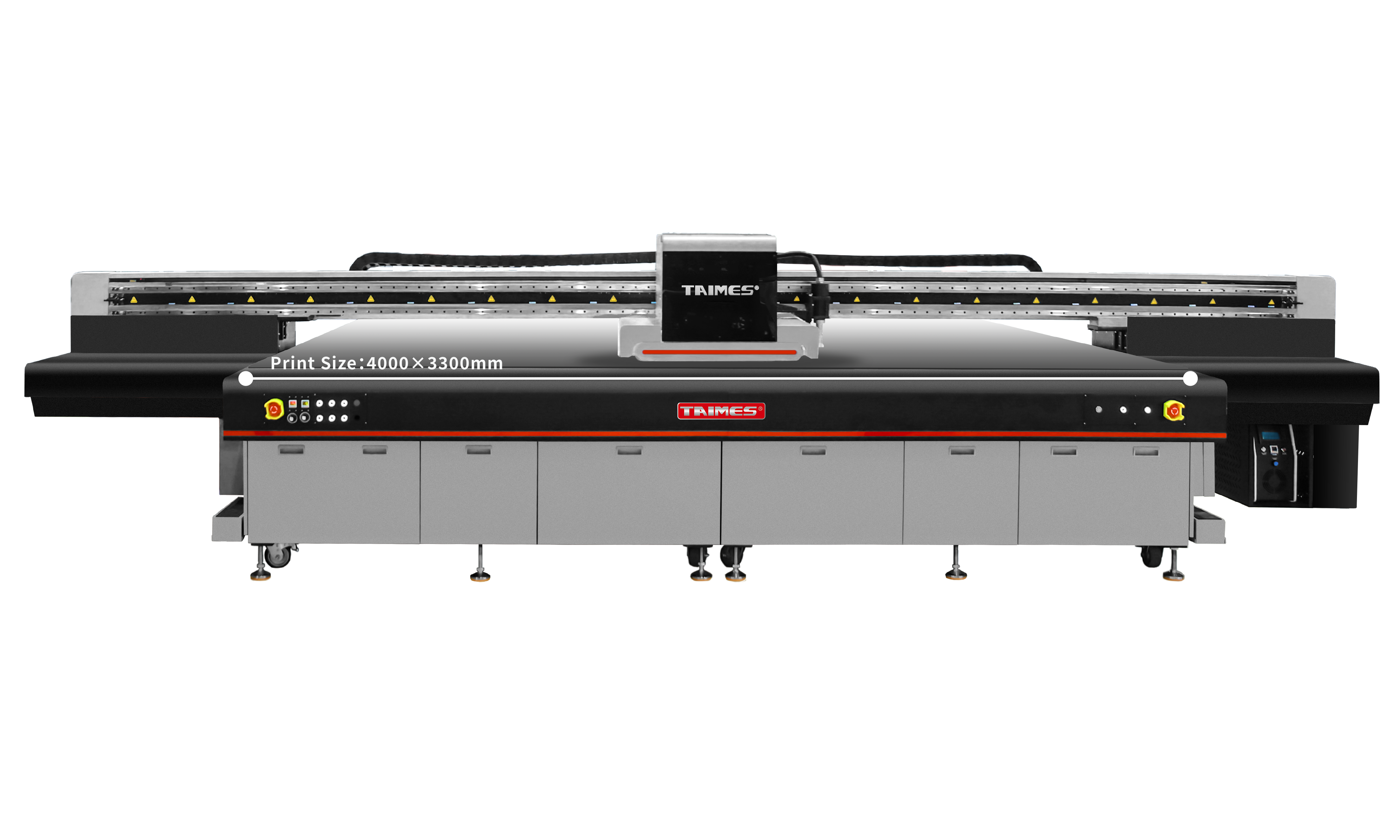

TAIMES TF4033
The large format UV industrial flatbed printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TF4033 Print Speed Parameters | ||||
| Printhead | High Speed Mode | Standard Mode | High-Quality Mode | Ink Color |
| RICOH GEN6 3 Group | 68 m²/h | 54 m²/h | 40 m²/h |  |
| RICOH GEN6 4 Group | 85 m²/h | 65 m²/h | 55 m²/h | |
| KONICA KM1024i - 13PL/6PL 4/5/6/7/8 Heads |
720×720 dpi 4 pass 40 m²/h |
720×900 dpi 6 pass 26 m²/h |
720×1,440 dpi 8 pass 20 m²/h |
|
| TF4033 Technical Parameter Table | ||||
| Print Control | RYPC/ HOSON | |||
| Print Technology | Industrial Piezoeiectric Inkjet | |||
| Ink Types | Environmentally Protective UV Ink | |||
| RIP Software | Photoprint/ Maintop/ Printer Factory/ Colorgate | |||
| Color Configuration | 4 Color/ 6 Color/ White | |||
| Operating System | Win 7/ 10/ 11 64 bits | |||
| Image Format | TIF/ JPEG/ EPS/ PDF | |||
| Printhead Height | 2-100mm Above Media Adjustable | |||
| Printing Materials | Wooden Panels, Aluminum Panels, Door Panels, Cardboard, Paperboard, PVC Expansion Panels, Ceiling panels, Glass, Ceramics, Acrylic, PVC, etc | |||
| Media Specifications | 4,000×3,300mm | |||
| Print Width | 4,000×3,300mm | |||
| Maximum Weight of Material | ≤ 100kg/m | |||
| Drying System | UV Ultraviolet Radiation | |||
| UV Curing Lamp | LED Water Cooling System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Power Supply | ||||
| Maximum Power | ＞ 35A; 6.5KW | |||
| Access Parameter | AC220V (±5%); 50HZ/60HZ | |||
| Working Conditions | ||||
| Humidity | 35~80% RH (NO Condensing) | |||
| Temperature | 25~32℃; or more Recommended NO Frost | |||
| Specification | ||||
| Machine Dimension/ Net Weight | L6,100×W4,500×H1,450 mm/ Net Weight 2,800 KG | |||
| Package Dimension/ Gross Weight | L12,000×W2,300×H1,500 mm/ Gross Weight 2,950 KG | |||
