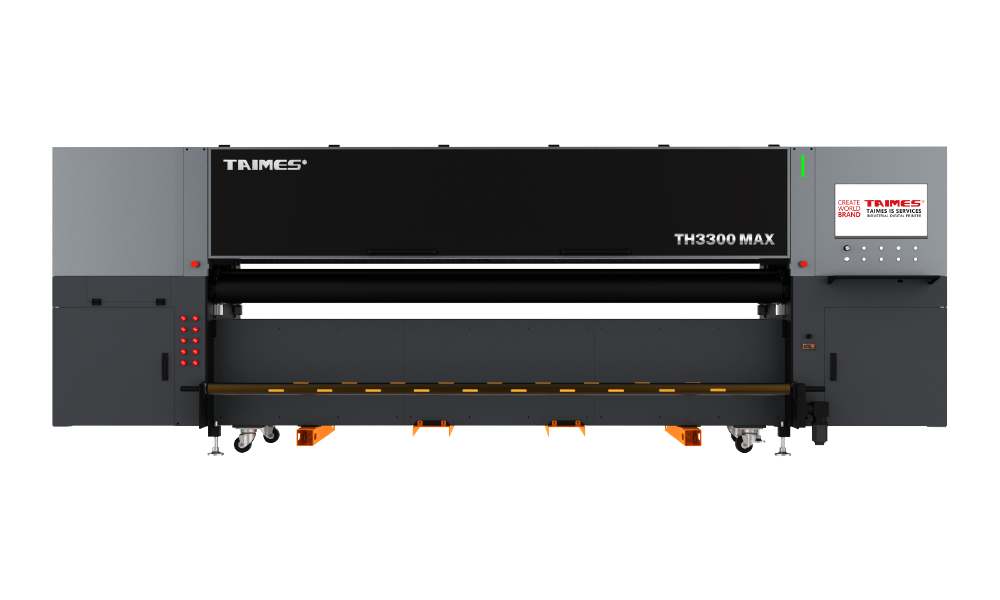

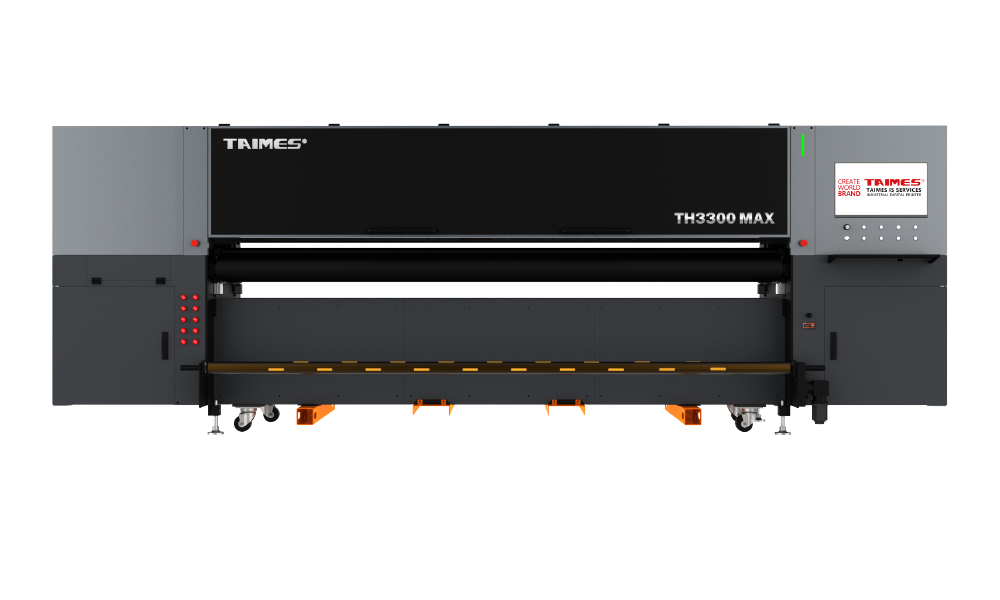

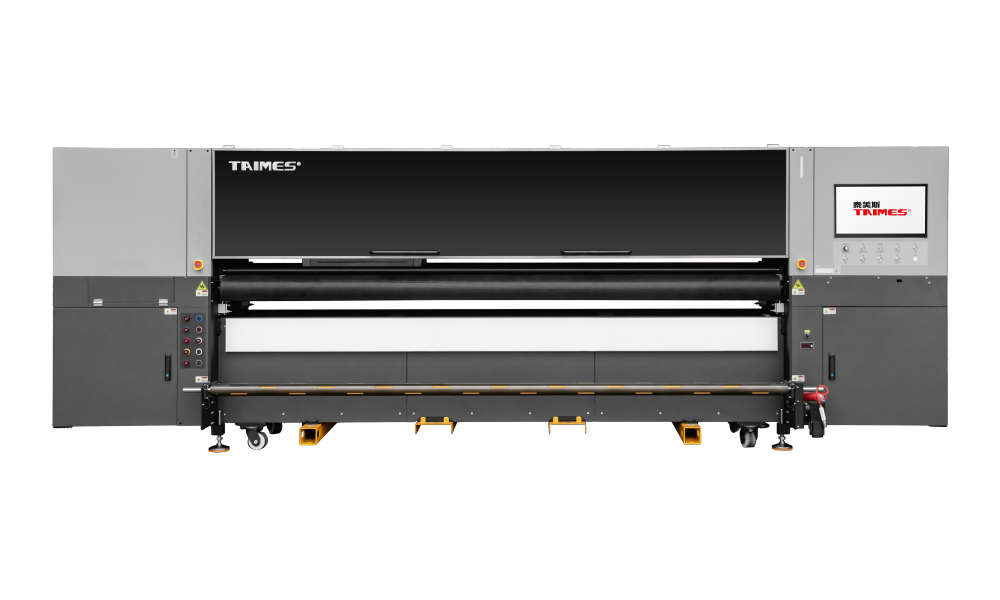

TAIMES TH3300 MAX
Versatile 3.2-Meter Industrial UV Hybrid Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| TH3300 MAX Print Speed Parameters | ||||
| Printhead Mode | KONICA 1024i-6PL (6 Rows) |
KONICA 1024i-13PL (6 Rows) |
KONICA 9888H-5PL (6 Rows) |
Ink Color |
| External Light Mode | 170 m²/h | 200 m²/h | 170 m²/h |  |
| Internal Light Mode | 115 m²/h | 135 m²/h | 115 m²/h | |
| Color White Color Mode | 56 m²/h | 67 m²/h | 56 m²/h | |
| TH3300 MAX Technical Parameter Table | ||||
| Print Control | Beijing BYHX Control Board (can Provide 16 Printhead Driver Card Interfaces Capable of Supporting up to 60 Printheads) | |||
| Print Technology | Single Color Positive Pressure Purging, Anti-clogging and Flash Spray | |||
| Ink Types | Environmental Friendly UV Curable Ink (Excluding VOC) | |||
| RIP Software | PrintFactory Color Management Software Imported from Holland | |||

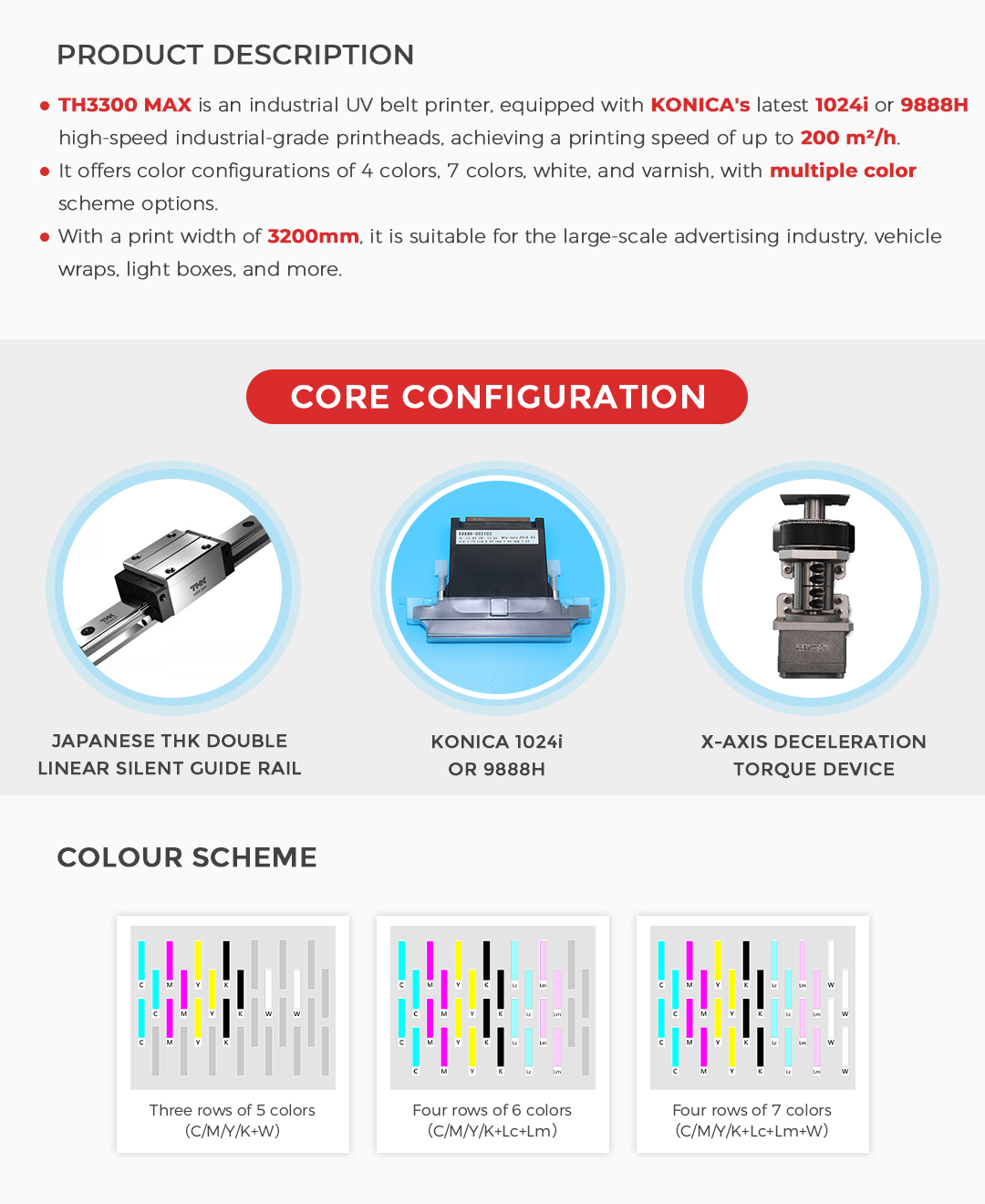

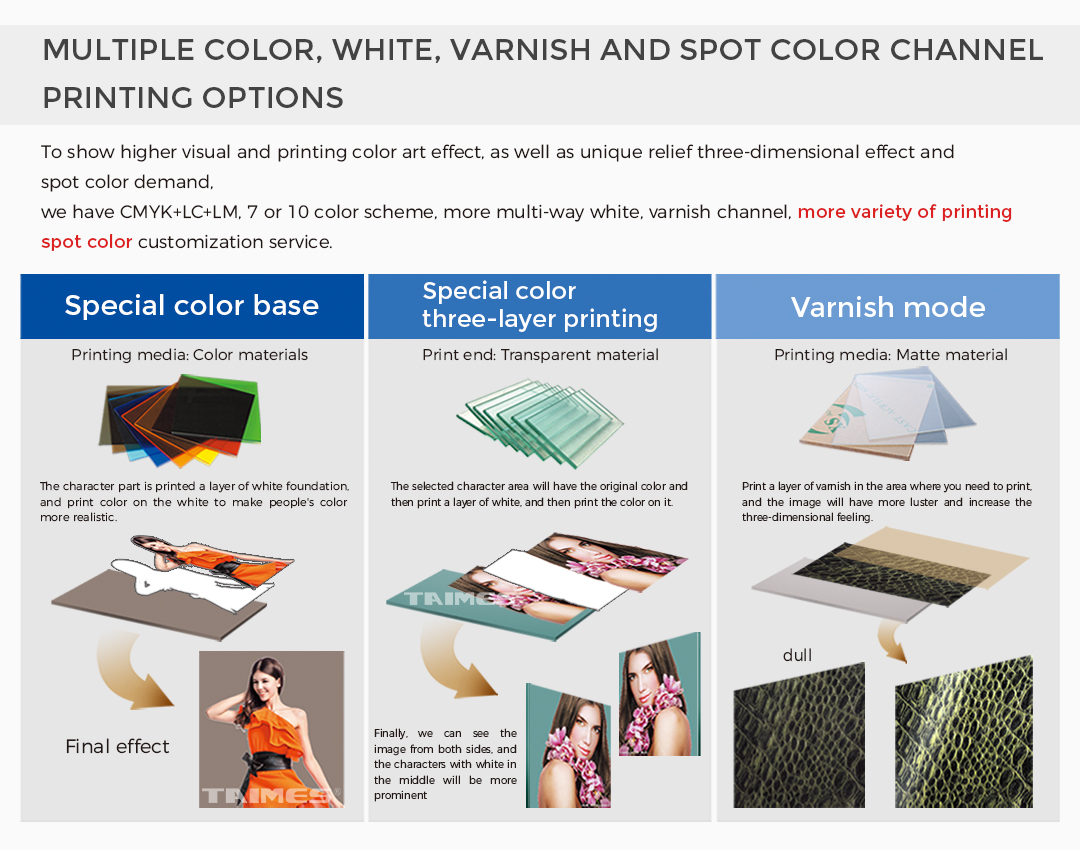

| Color Configuration | C/ M/ Y/ K/ Lc/ Lm/ W/ Lk | |||
| Operating System | Win 7/ 10 64 Bits | |||
| Image Format | BMP/ TIF/ JPG/ PDF/ EPS | |||
| Printhead Height | The Printing Height is 48 mm | |||
| Printing Materials | any Soft Materials such as Soft Film, Backlit Film, Car Sticker, 3P Cloth, Coated Banner, Canvas, Light bBox Cloth, one way Vision Sticker. | |||
| Media Specifications | Maximum Media Width 3,300 mm | |||
| Print Size | Maximum Print Width 3,200 mm | |||
| Maximum Weight of Material | Panel：≤100 kg/m² | |||
| Drying System | ||||
| UV Curing Lamp | Imported LED-UV Lamp Curing System | |||
| Data Interface | Hi-Speed USB 3.0 | |||
| Media Storage and Retrieval | Roll to Roll, Automatic Receiving and Feeding System | |||
| Maximum Power | ≥ 27A; 6KW | |||
| Access Parameter | AC220V (±5%)；50HZ/ 60HZ | |||
| Working Conditions | ||||
| Humidity | 30~65% RH ( NO Condensing ) | |||
| Temperature | 20~30°C；or more Recommended no Frost | |||
| Specification | ||||
| Machine Dimension/Net Weight | L5,600×W1,740×H1,600 mm / 3,800 KG | |||
| Package Dimension/Gross Weight | L5,800×W1,950×H1,900 mm / 4,000 KG | |||
