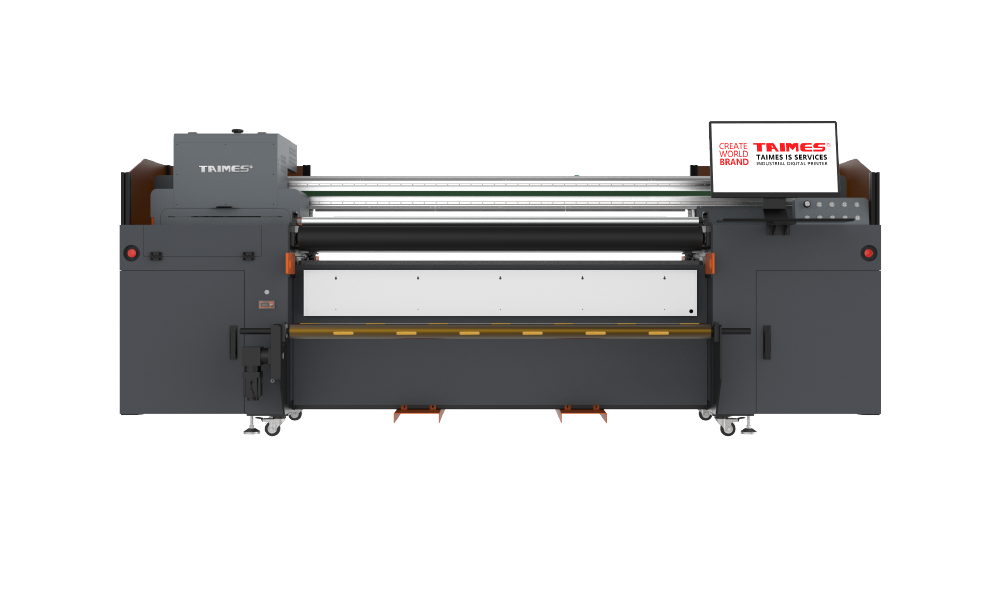

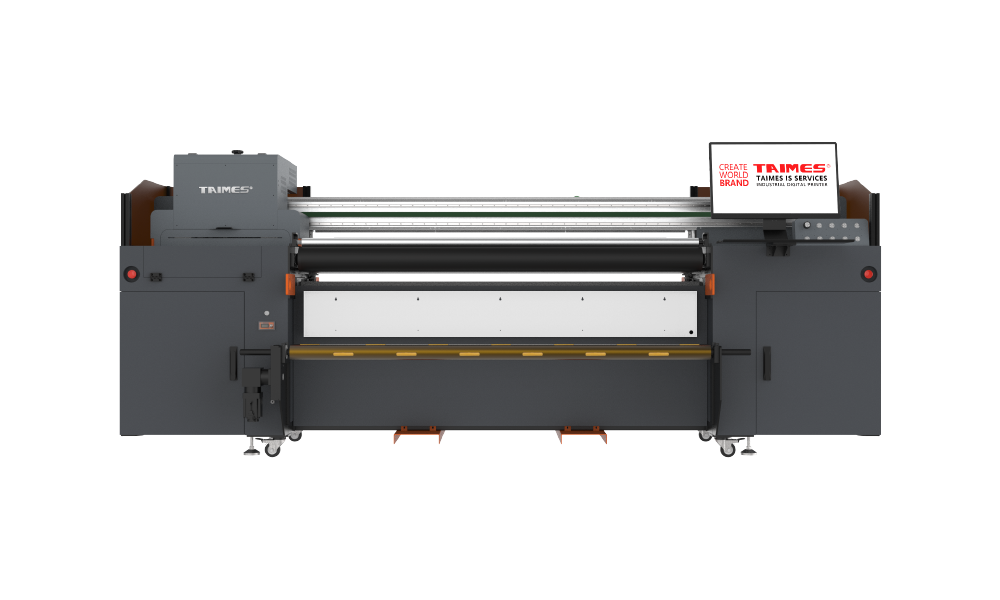

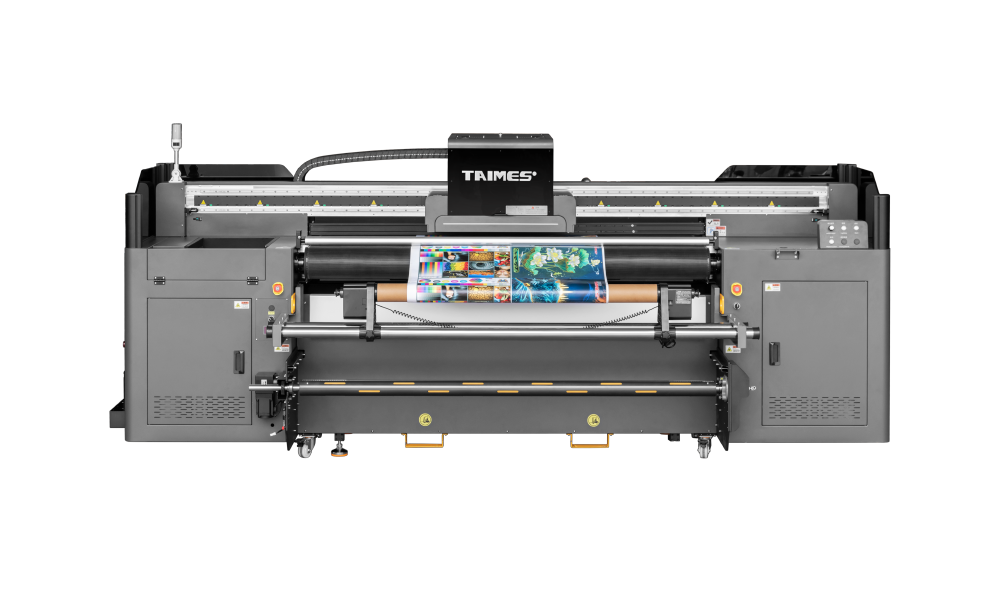

TAIMES TH1900 MAX

Versatile 1.9-Meter Industrial UV Hybrid Printer

ANTI COLLISION DEVICE

ANTI COLLISION DEVICE

backflow protection

backflow protection

INTELLIGENT FEATHERING

INTELLIGENT FEATHERING

LOW INK ALARM

LOW INK ALARM

AUTOMATIC HEIGHT MEASUREMENT

AUTOMATIC HEIGHT MEASUREMENT

CONTINUOUS PRINTING FUNCTION

CONTINUOUS PRINTING FUNCTION

NEGA TIVE PRESSURE REGULATION

NEGA TIVE PRESSURE REGULATION

UV CURING

UV CURING

TH1900-MAX-英文版网页排版-01
TH1900-MAX-英文版网页排版-02
TH1900-MAX-英文版网页排版-03

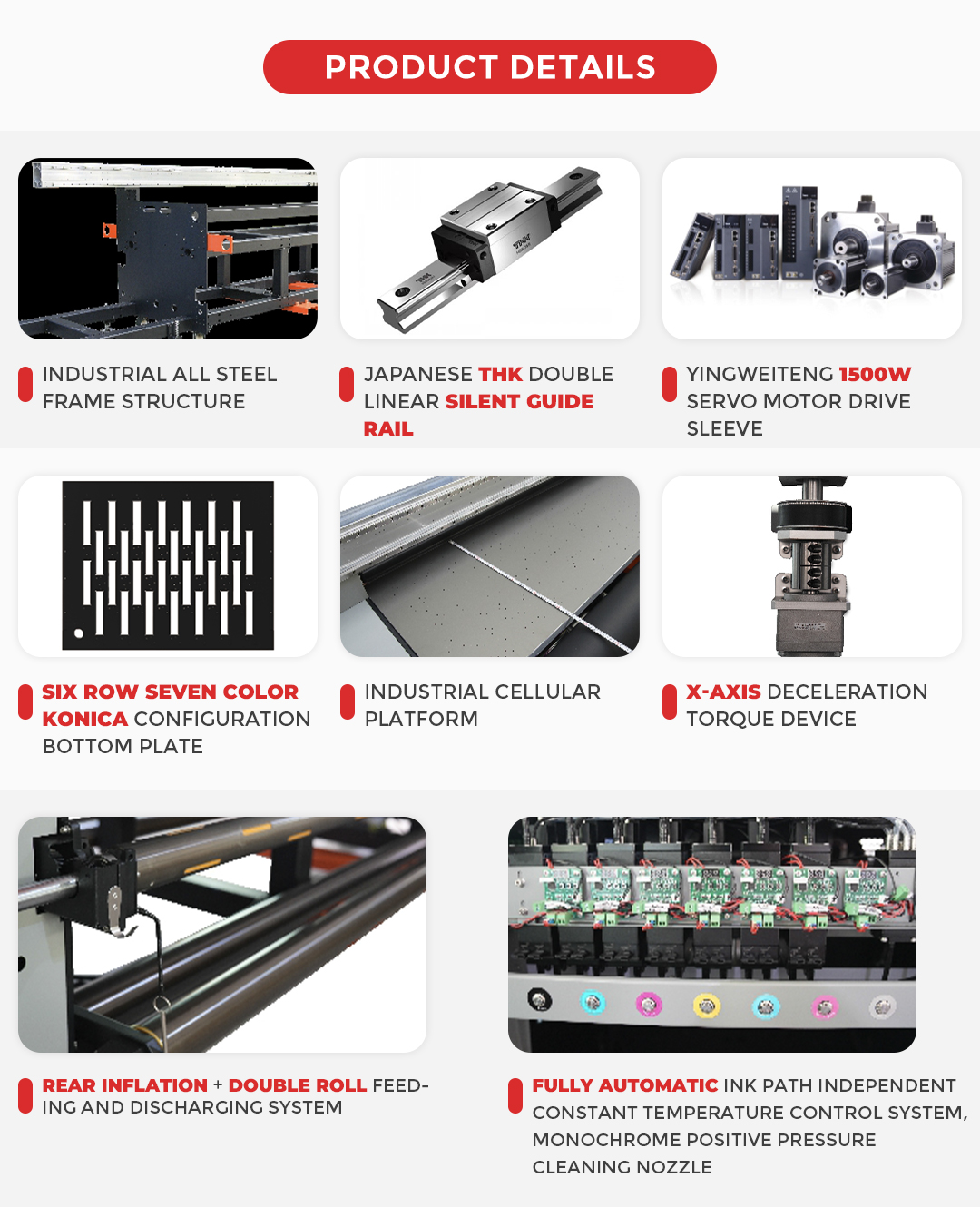

TH1900-MAX-英文版网页排版-04
TH1900 MAX Print Speed Parameters
Printhead High Speed Mode Standard Mode High-Quality Mode Ink Color
RICOH GEN6-5PL
2~8 Heads		 720×600 dpi 4 pass
18 m²/h		 720×600 dpi 6 pass
12 m²/h		 720×1,200 dpi 8 pass
9 m²/h
EPSON i3200
2 Heads		 720×1,200 dpi 4 pass
20 m²/h		 720×1,800 dpi 6 pass
14 m²/h		 720×2,400 dpi 8 pass
11 m²/h
TH1900 MAX Technical Parameter Table
Print Control
Print Technology Industrial Piezoeiectric Inkjet
Ink Types ECO Solvent Ink, Water Based Ink, Dye Ink, Sublimation Ink
RIP Software MaintopV5.3 5.5, Photoprint, Topaz, Seeget Wasatch
Color Configuration 4 color/ 6 color/ White/ Varnish optional
Operating System Win 7/ 10 64 Bits
Image Format TIF/ JPEG/ EPS/ PDF
Printhead Height Manual Height Hcalibration
Printing Materials PP Synthetic Paper, Car Sticker, Film, Photo Paper, Acid-Free Paper, Coated Paper, Canvas, Flag Banner Fabric, Leather, Flex Face Membrane, Mesh Banner, Etc.
Media Specifications Maximum Media Width 1,900 mm
Print Size Maximum Print Width 1,800 mm
Maximum Weight of Material Panel：≤100 kg/m²
Drying System Pre/ Post Heater ( can be Controlled Separately )
UV Curing Lamp
Data Interface Hi-Speed USB 3.0
Media Take-up Device Motorized rewind system (optional) -max.load capacity: 65 kg;
Single-Roll rewind system for leather (optional) - max, load capacity: 100 kg;
Heavy-Duty air shaft rewind system (optional) -max. load capacity: 200 kg.
Maximum Power ≥ 32A; 5KW
Access Parameter AC220V (±5%); 50HZ/ 60HZ
Working Conditions
Humidity 35~65% RH ( NO Condensing )
Temperature 20~35°C; or more Recommended no Frost
Specification
Machine Dimension/Net Weight L3,370×W1,200×H1,550 mm / 850 KG
Package Dimension/Gross Weight L3,780×W1,160×H1,690 mm / 1,000 KG
