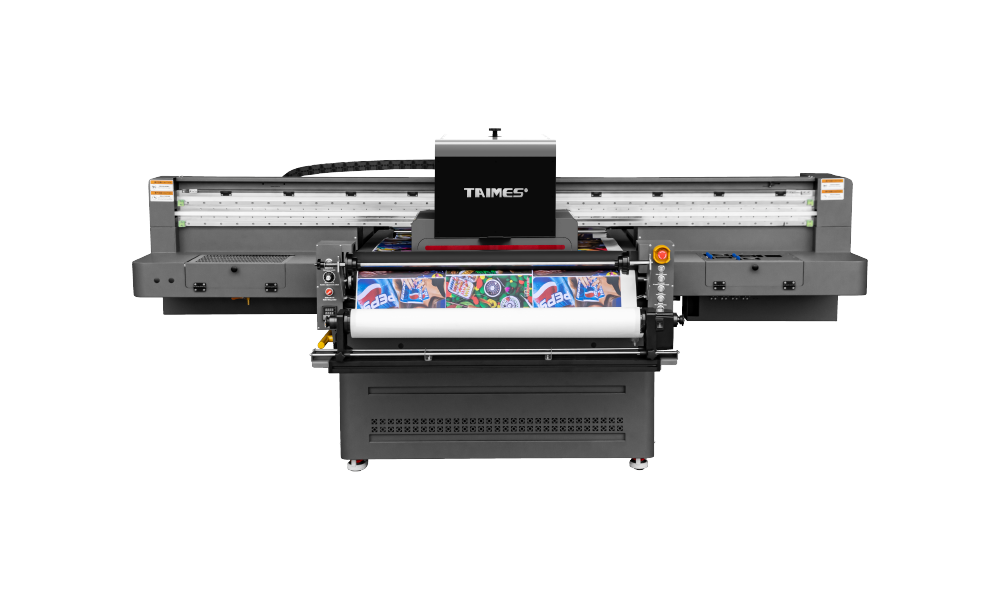

TAIMES TF9060 PRO
Multi-Function Hybrid UV Flatbed/ Roll Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES TF9060 PRO | |||||||||||||
| Color Configuration | C / M / Y / K / LC / LM / W / V / PR | |||||||||||||
| Print Technology | Industrial Piezoelectric Inkjet | |||||||||||||
| Print Head | RICOH GEN6-5PL | EPSON i3200 | ||||||||||||
| Color Scheme |  |
 |
 |
 |
||||||||||

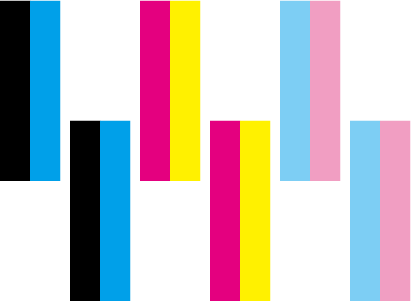

| Two Rows of Six Colors ( Full Color ) |

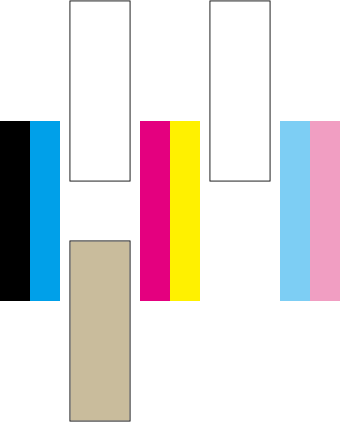

Three Rows of Eight Colors ( White Color Varnish ) |

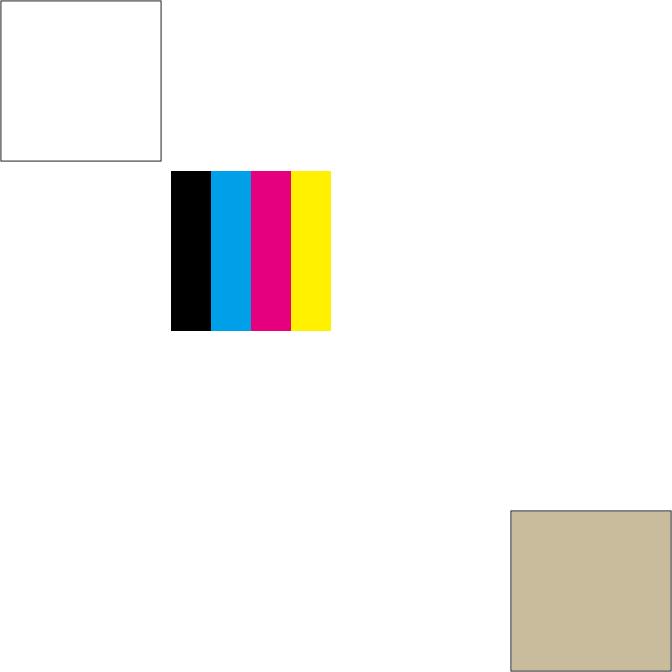

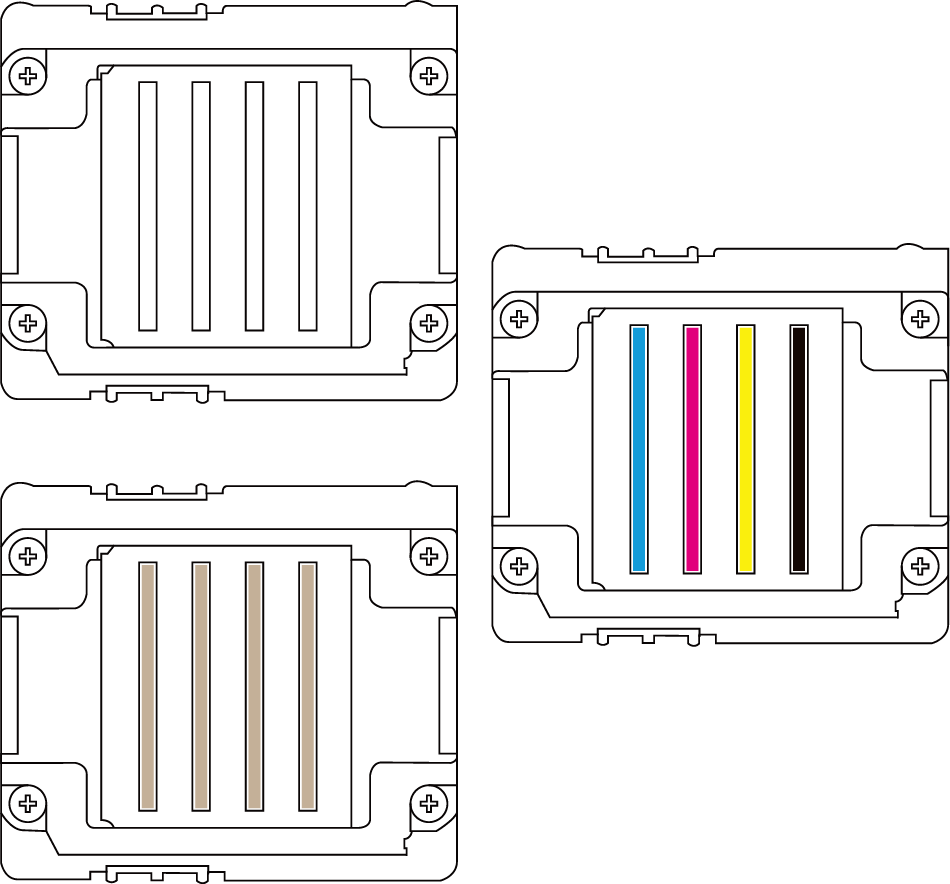

Three Rows of Six Colors ( White Color Vranish ) |

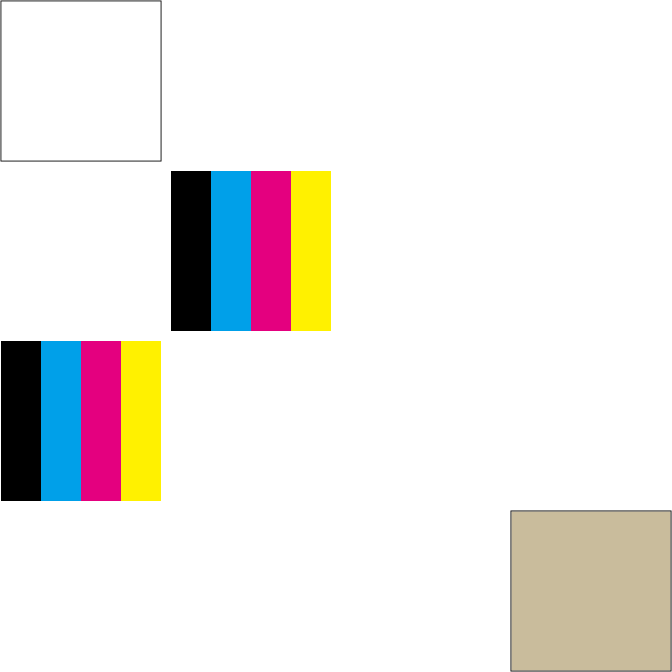

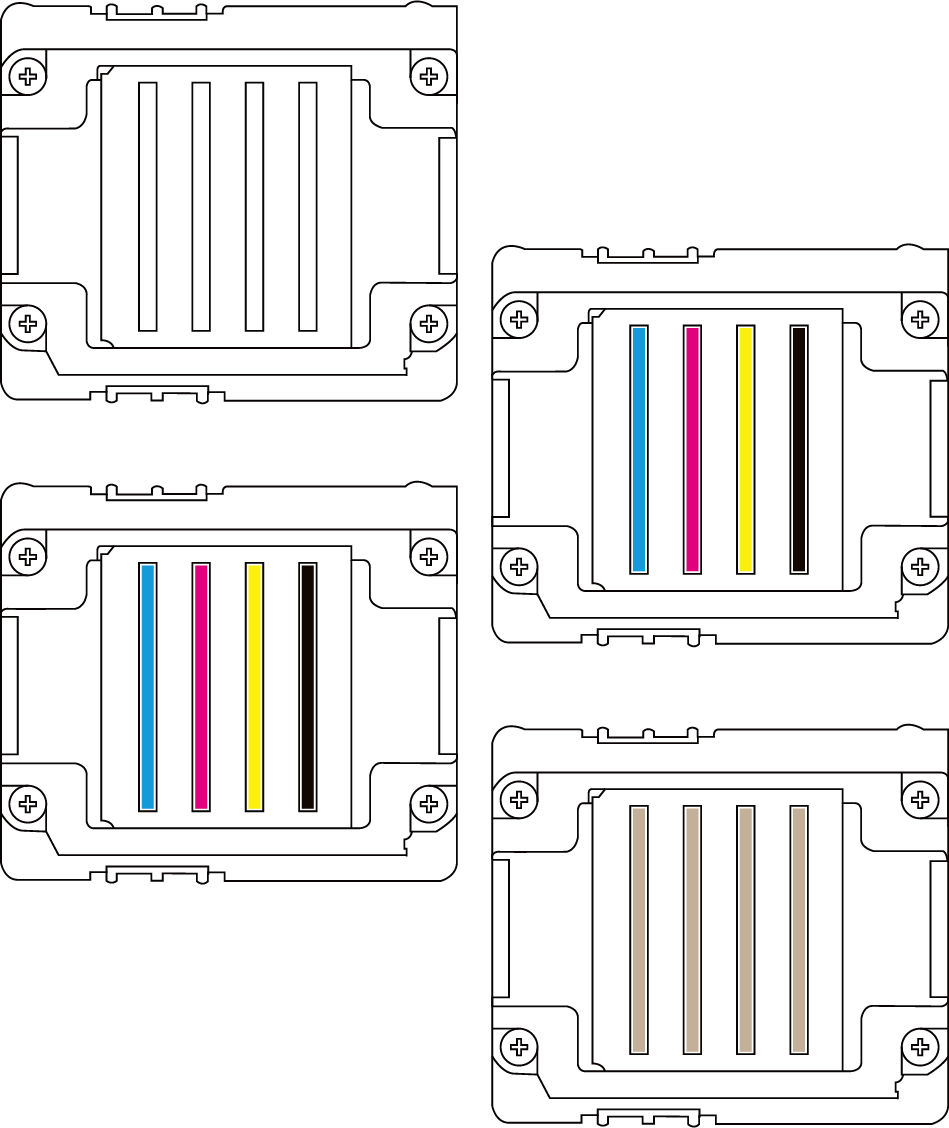

Four Rows of Six Colors ( White Color Varnish ) |
|||||||||||
| Productivity | 1 ROW | 2 ROWS | 3 ROWS | 1 ROW | 2 ROWS | 3 ROWS | 4 ROWS | |||||||
| High Speed ( 4 pass ) | 23 m²/h | 42 m²/h | 60 m²/h | 15 m²/h | 28 m²/h | 42 m²/h | 56 m²/h | |||||||
| Standard ( 6 pass ) | 15 m²/h | 29 m²/h | 39 m²/h | 10 m²/h | 18 m²/h | 27 m²/h | 36 m²/h | |||||||
| High-Quality ( 8 pass ) | 11 m²/h | 21 m²/h | 29 m²/h | 8 m²/h | 14 m²/h | 21 m²/h | 27 m²/h | |||||||
| Max Printing Size | ( Width ) 900 × ( Depth ) 600 mm; ( Width ) 35 × ( Depth ) 24 '' | |||||||||||||
| Print Height | 85 mm ( Max Printing Weight: ≤ 45 kg/m² ) | |||||||||||||
| Media Type | Wooden Panels, Aluminum Panels, Door Panels, Cardboard, PVC Expansion Panel, Ceiling Panel, Glass, Ceramics, Acrylic, PVC, etc. | |||||||||||||
| Ink Type | Environmentally Protective UV Ink | |||||||||||||
| Curing System | LED Water Cooling System | |||||||||||||
| RIP Software | Photoprint / Onyx / Printer Factory / Colorgate | |||||||||||||
| Image Format | TIF / JPG / EPS / PDF | |||||||||||||
| Power Supply | > 15A, 3.5KW; AC220V ( ±5% ), 50~60HZ | |||||||||||||
| Size / Weight | L2,360 × W1,870 × H1,250 mm ( L93 × W74 × H49 '' ) ; Net Weight 580 KG ( 1,279 LB ) | |||||||||||||
