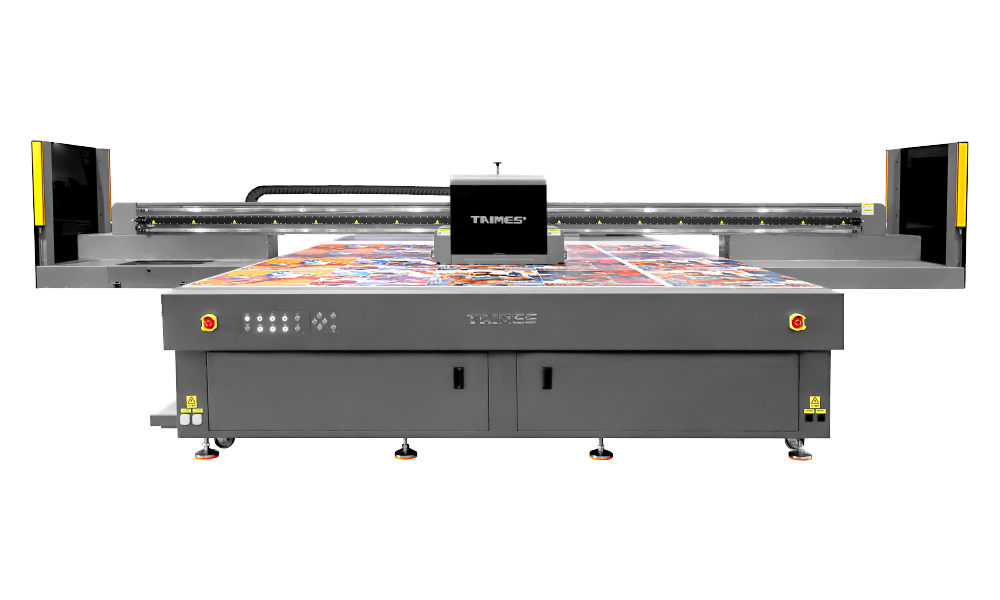

TAIMES TF3250 YZ

Oversized UV industrial flatbed printer

ANTI COLLISION DEVICE

ANTI COLLISION DEVICE

backflow protection

backflow protection

INTELLIGENT FEATHERING

INTELLIGENT FEATHERING

LOW INK ALARM

LOW INK ALARM

AUTOMATIC HEIGHT MEASUREMENT

AUTOMATIC HEIGHT MEASUREMENT

CONTINUOUS PRINTING FUNCTION

CONTINUOUS PRINTING FUNCTION

NEGA TIVE PRESSURE REGULATION

NEGA TIVE PRESSURE REGULATION

UV CURING

UV CURING

TF3250 YZ-英文版网页排版-01
TF3250 YZ-英文版网页排版-02
TF3250 YZ-英文版网页排版-03
TF3250 YZ-英文版网页排版-04
Printer TAIMES TF3250 YZ
Color Configuration C / M / Y / K / LC / LM / W / V / PR
Print Technology Industrial Piezoelectric Inkjet
Print Head KONICA 9888H-5PL RICOH GEN6-5PL KONICA 1024A-6PL

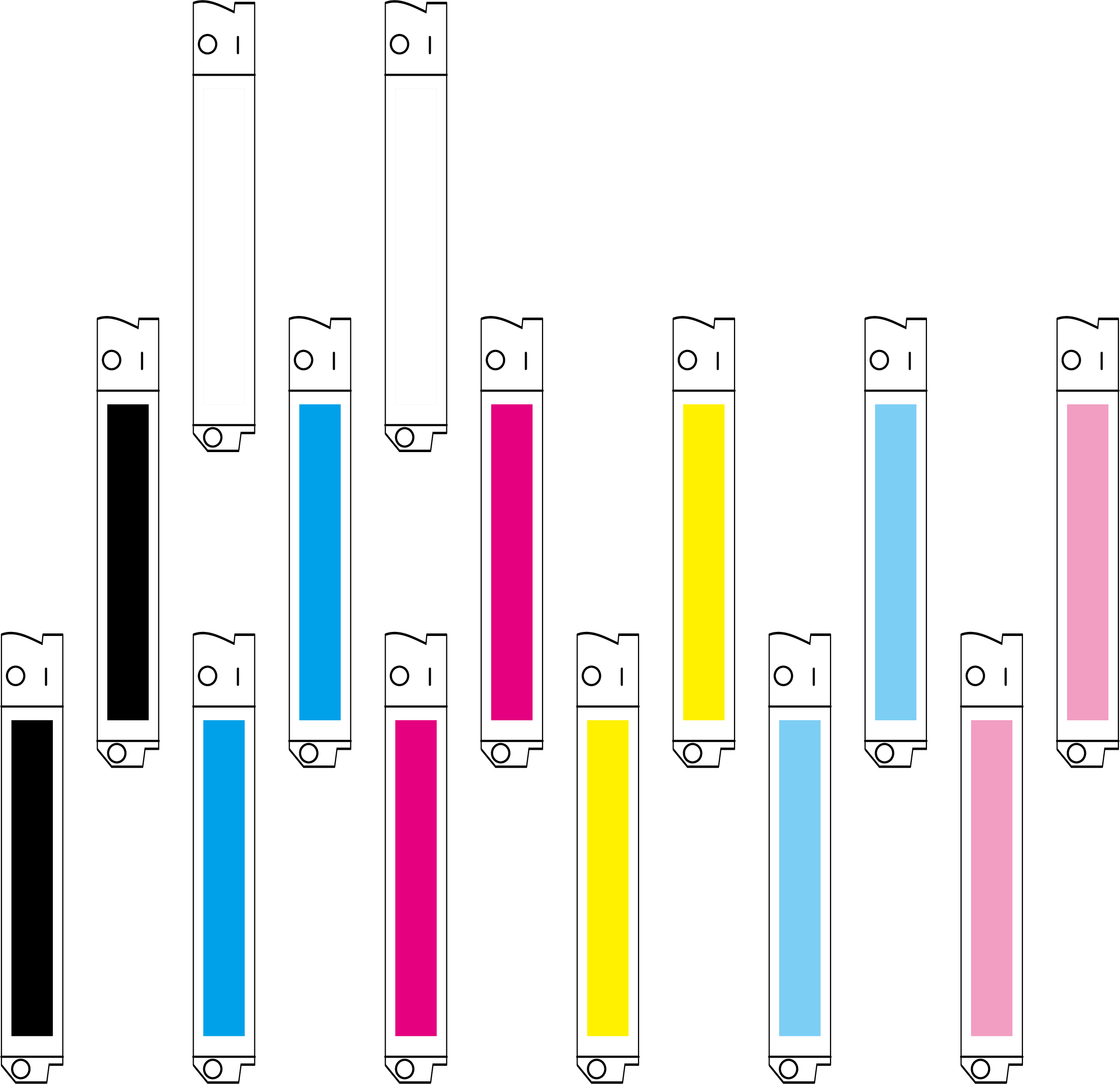

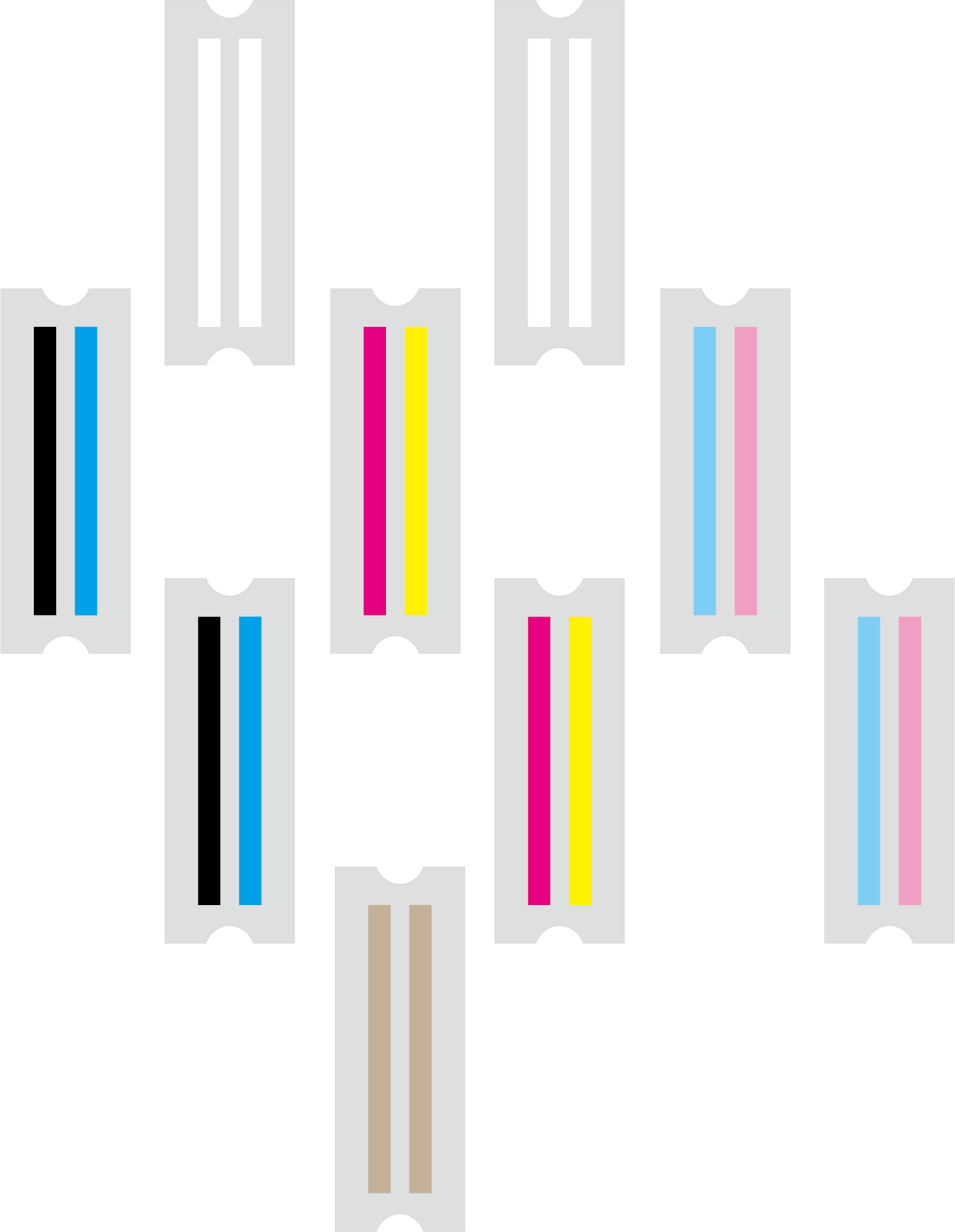

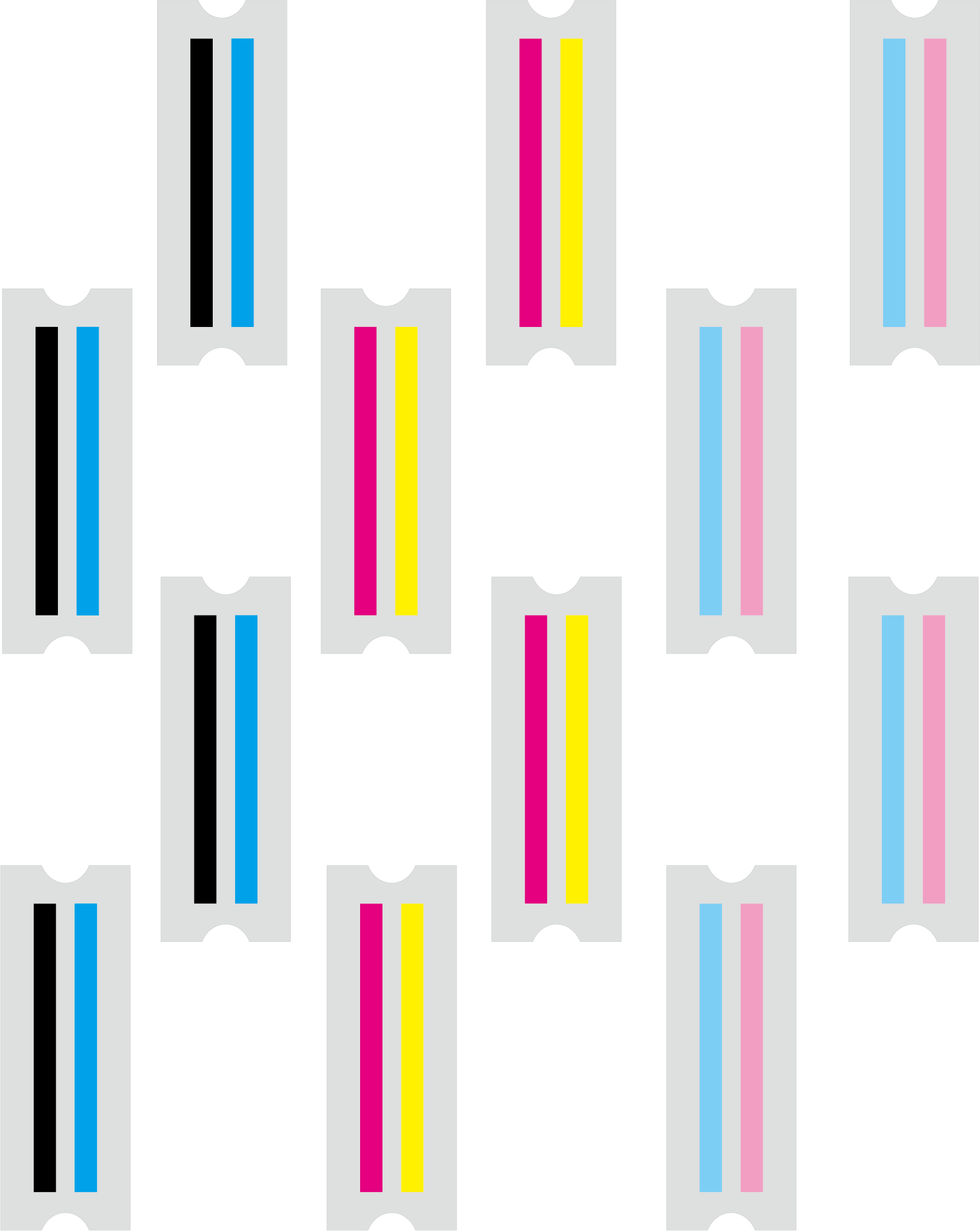

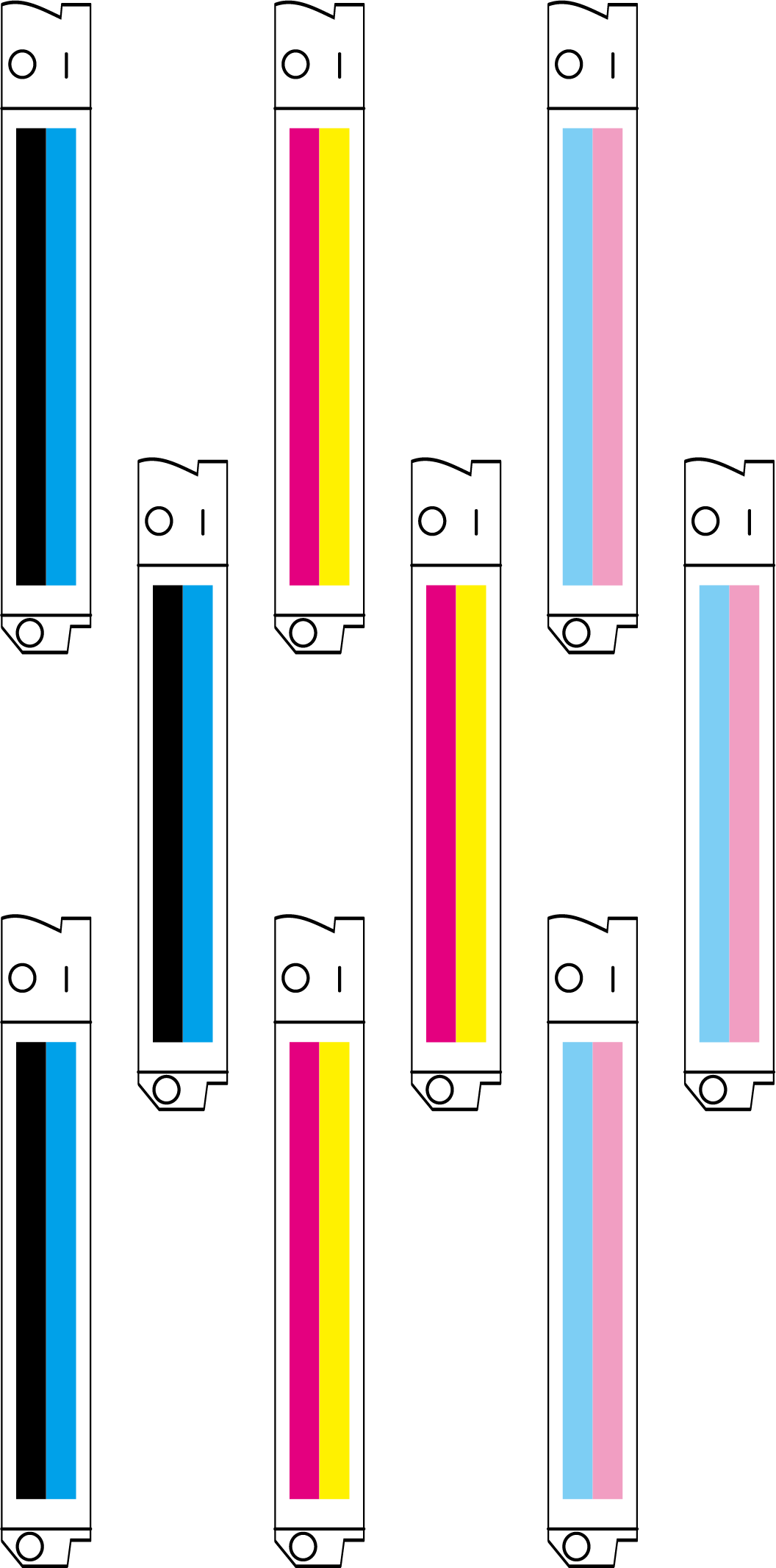

Color Scheme
Two Rows of Six Colors
( Full Color )		 Four Rows of Eight Colors
( White Color Varnish )		 Four Rows of Six Colors
( Full Color )		 Four Rows of Eight Colors
( White Color Varnish )		 Two Rows of Six Colors
( Full Color )		 Three Rows of Seven Colors
( White Color Color )
Productivity 1 Row 2 Rows 3 Rows 1 Row 2 Rows 3 Rows 2 Rows 3 Rows 4 Rows
High Speed ( 4 pass ) 35 m²/h 68 m²/h 96 m²/h 12 m²/h 24 m²/h 34 m²/h 37 m²/h 70 m²/h 98 m²/h
Standard ( 6 pass ) 20 m²/h 42 m²/h 61 m²/h 9 m²/h 16 m²/h 23 m²/h 24 m²/h 46 m²/h 65 m²/h
High-Quality ( 8 pass ) 10 m²/h 26 m²/h 35 m²/h 6 m²/h 12 m²/h 17 m²/h 18 m²/h 34 m²/h 48 m²/h
Max Printing Size ( Width ) 3,200 × ( Depth ) 5,500 mm; ( Width ) 126 × ( Depth ) 217 ''
Print Height 1~150 mm ( Max Printing Weight: ≤ 130 kg/m² )
Media Type PP Synthetic Paper, Car Sticker, Film, Photo Paper, Acid Paper, Coated Paper, Canvas, Flag Banner Fabric, etc.
Ink Type Environmentally Friendly UV Ink
Curing System LED Water Cooling System
RIP Software Photoprint / Onyx / Printer Factory / Colorgate
Image Format TIF / JPG / EPS / PDF
Power Supply > 65A, 13.5KW; AC220V ( ±5% ), 50~60HZ
Size / Weight L6,500 × W6,100 × H1,550 ( L256 × W240 × H61 '' ) ; Net Weight 4,000 KG ( 8,818 LB )
