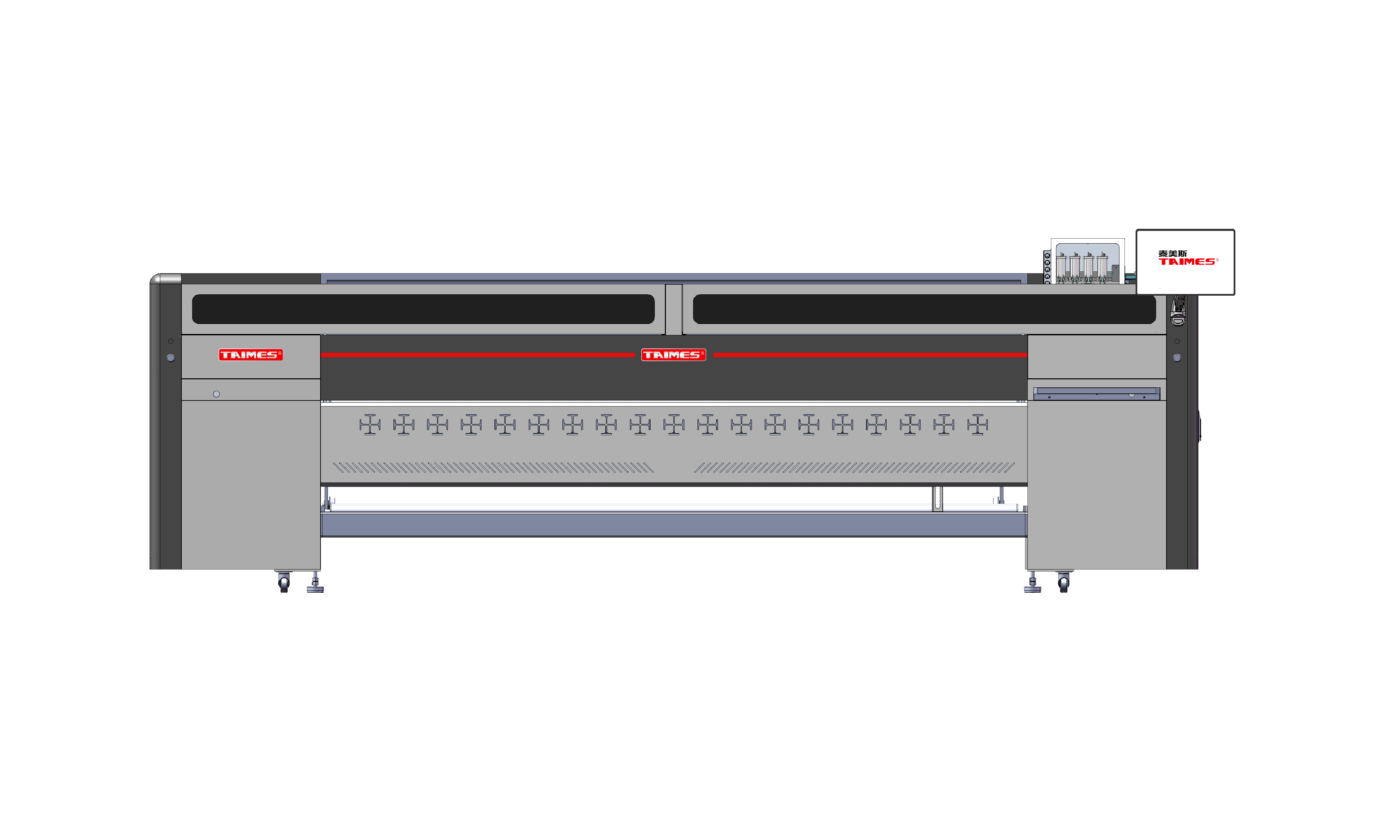

TAIMES T9M
Brand-New Design 3.2m Ultra-High-Speed Deluxe Heavy-Duty Solvent Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| Printer | TAIMES T9M | |||||||||||||||||
| Color Configuration | C / M / Y / K | |||||||||||||||||
| Print Technology | Industrial Piezoelectric Inkjet | |||||||||||||||||
| Print Head | KONICA 1024i-30PL 8 Heads |
KONICA 1024i-13PL 12 Heads |
KONICA 512i-30PL 8 Heads |
|||||||||||||||
| Color Scheme |  |
 |
 |
|||||||||||||||
| 1 Row of Four Colors ( Full Color ) |
2 Rows of Four Colors ( Full Color ) |
3 Rows of Four Colors ( Full Color ) |
||||||||||||||||
| Productivity | High Speed | Standard | High-Quality | High Speed | Standard | High-Quality | High Speed | Standard | High-Quality | |||||||||
| 480×360 dpi 1 pass 480 m²/h |
480×720 dpi 2 pass 240 m²/h |
480×1,080 dpi 3 pass 160 m²/h |
480×360 dpi 1 pass 720 m²/h |
480×720 dpi 2 pass 360 m²/h |
480×1,080 dpi 3 pass 240 m²/h |
480×360 dpi 2 pass 230 m²/h |
480×540 dpi 3 pass 160 m²/h |
480×720 dpi 4 pass 120 m²/h |
||||||||||
| Max Printing Size | Width: 3,200 mm ( 126 '' ) | |||||||||||||||||
| Print Height | 10 mm ( Max Printing Weight: ≤ 100 kg/m² ) | |||||||||||||||||
| Media Type | Any Soft Materials such as Soft Film, Backlit Film, Car Sticker, 3P Cloth, Coated Banner, Canvas, Light Box Cloth, One Way Vision Sticker. | |||||||||||||||||
| Ink Type | Environmentally Protective UV Ink | |||||||||||||||||
| Curing System | LED Water Cooling System | |||||||||||||||||
| RIP Software | Photoprint / Onyx / Printer Factory / Colorgate | |||||||||||||||||
| Image Format | TIF / JPG / EPS / PDF | |||||||||||||||||
| Power Supply | > 16A, 3.5KW; AC220V ( ±5% ), 50~60HZ | |||||||||||||||||
| Size / Weight | L4,970 × W1,170 × H1,700 mm ( L196 × W46 × H67 '' ) ; Net Weight 850 KG ( 1,874 LB ) | |||||||||||||||||
