TAIMES T900

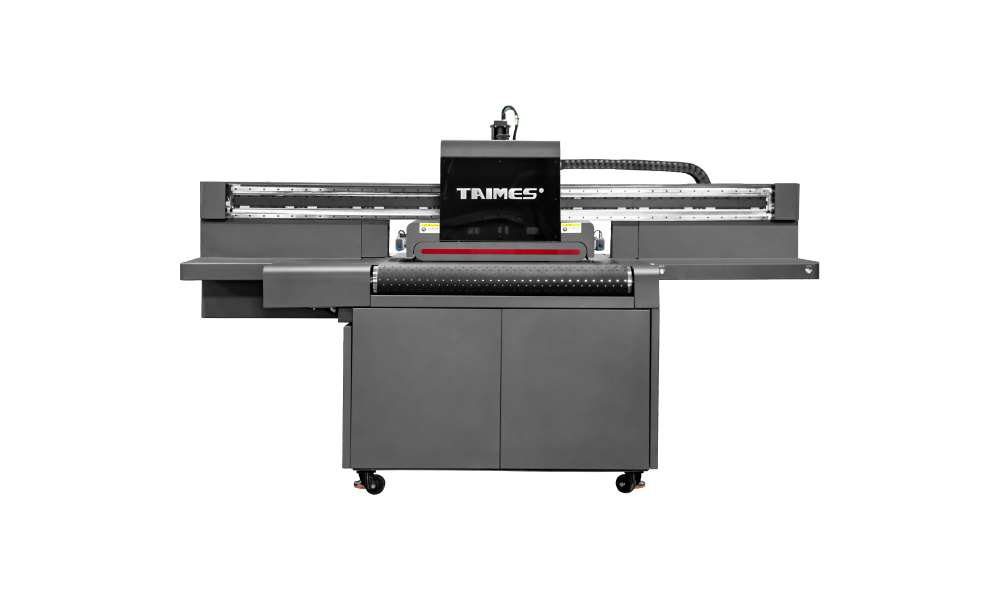

T900 AI-CCD Belt-fed UV Printer
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| T900 Print Speed Parameters | ||||
| Printhead | High Speed Mode 4 Pass |
Standard Mode 6 Pass |
High-quality Mode 8 Pass |
Ink Color |
| RICOH G6 | 34 m²/ h | 23 m²/ h | 19 m²/ h |  |
| RICOH G5i | 12 m²/ h | 8 m²/ h | 6 m²/ h | |
| EPSON i3200 | 16 m²/ h | 11 m²/ h | 8 m²/ h | |
| T900 Technical Parameter Table | ||||
| Visual System | 1,200 dpi Industrial Linear Array High-precision Camera | |||
| Printhead Type | RICOH G5i/ G6, EPSON i3200 | |||
| Printhead Quantity | 2~8 Heads (can be Customized Cccording to Requirements ) | |||
| Printhead Height | 200 mm | |||
| Recognition Range | 900 mm | |||
| Print Width | 900 mm | |||
| Print recision | 720×900 dpi / 720×1,200 dpi / 720×1,800 dpi | |||
| Ink System | Dual-channel Dual-negative Pressure System/ 1.5L-Ink Bucket Capacity/ White Ink Stirring | |||
| RIP Software | Photoprint/ Maintop/ Printer Factory/ Colorgate/ 0nyx | |||
| Colour Configuration | W+V+KCMY ( Optional LC/ LM/ LK/ LLK ) | |||
| Operating System | Win 7/ 8/ 10 64 bits | |||
| Image Format | JPG/ PNG/ PDF/ TIFF/ EPS/ ETC | |||
| Transmission System | High-precision magnetic Levitation Guide Rail/ Dual Y Power-off Self-locking Motor | |||
| Drying System | UV Curing, Instant Drying | |||
| Data Interface | Hi-Speed USB 3.0/ Gigabit NlC Port Transmission | |||
| Power Supply | >32A，3.5KW;200~240 VAC(5%)，50HZ/ 60HZ | |||
| Working Conditions | Tem: 20~30℃; Hum: 40~80%RH | |||
| Machine Specification | L2,585×W2,080×H1,600 mm; 800 KG | |||
| Packing Specification | L2,700×W2,200×H1,700 mm; 950 KG | |||
