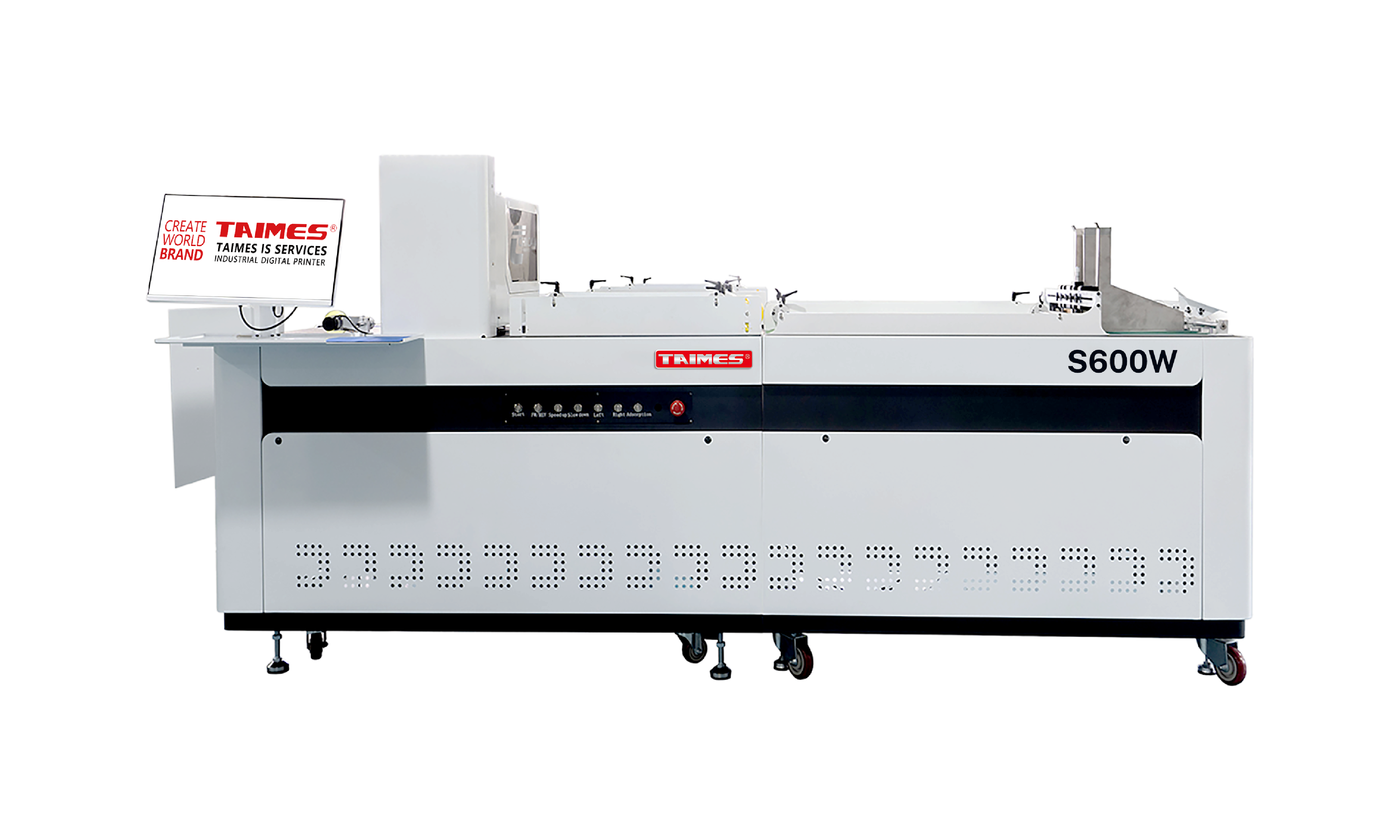

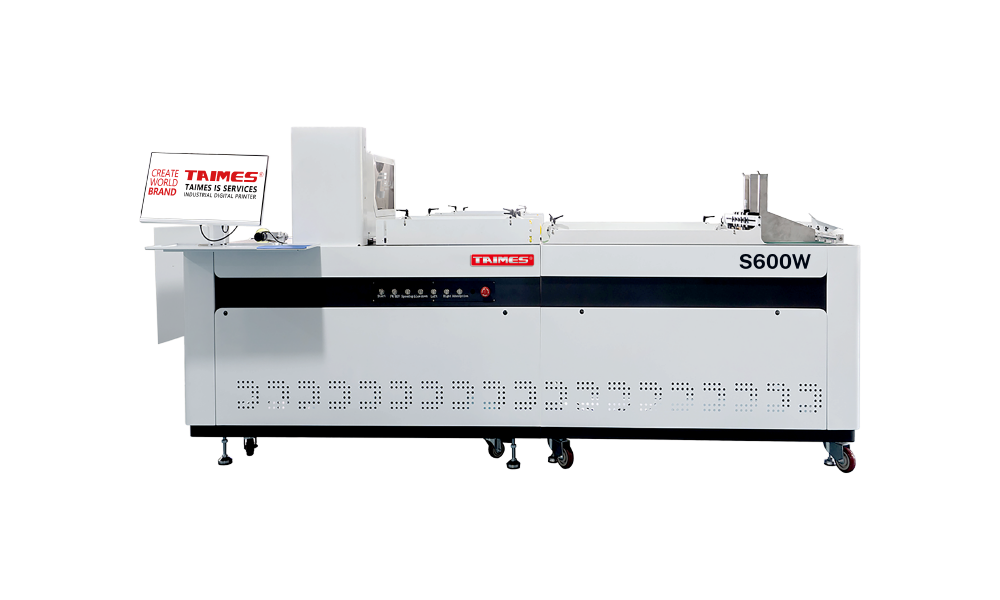

TAIMES S600W
Singlepass Digital Printing Machine
ANTI COLLISION DEVICE
backflow protection
INTELLIGENT FEATHERING
LOW INK ALARM
AUTOMATIC HEIGHT MEASUREMENT
CONTINUOUS PRINTING FUNCTION
NEGA TIVE PRESSURE REGULATION
UV CURING
| S600W Technical parameter table | ||||
| Colour Configuration |  |
|||
| Print Technology | ALL MEMS/ VSDT | |||
| Print Head | EPSON i1600/ i3200 | HP INDUSTRIAL NOZZLE | ||
| Printhead Quantity | 10 Heads | 1/ 2/ 3/ 4 Heads | ||
| Productivity | 20-40 m/min | |||
| Max Printing Size | Maximum Print Width 600 mm | |||
| Max Thickness | 200 mm ( Support customization ) | |||
| Feeding Method | Automatic Feeding | |||
| Media Type | Fabric Art , Paper Bag Packaging, Absorbent Wood, Pulp Cotton, Takeaway Food, Books, Various Water Absorbing Materials |
|||
| Ink Type | Environmentally Friendly Odorless Pigment Ink | |||
| RIP Software | Photoprint | |||
| Image Format | TIF / JPEG / EPS / PDF | |||
| Power Supply | 220V/AC(±10%), 50Hz, 1KW (Max.) | |||
| Size ( L / W / H ) | 1,500×1,030×1,520mm(2 PCS); 2,000×1,230×1,520mm (4 PCS) | |||
| Net Weight | 450 KG | |||
