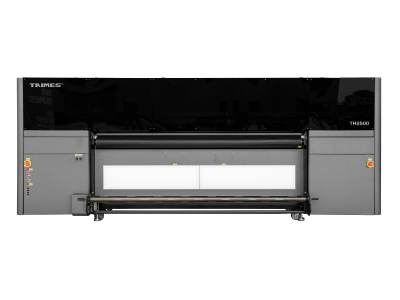

TAIMES TH2500
高性能卷板一体机
Previous
Next
防撞装置
回流保护
智能羽化
缺墨警报
自动测高
连打功能
负压调节
UV固化
| TH2500 Print Speed Parameters | ||||
| 喷头型号 | 高速模式 | 标准模式 | 高画质模式 | 颜色配置 |
| RICOH GEN6-7PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 21 m²/h |
720×600 dpi 6 pass 15 m²/h |
720×1,200 dpi 8 pass 11 m²/h |
 |
| RICOH GEN5 - 7PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 14 m²/h |
720×600 dpi 6 pass 10 m²/h |
720×1,200 dpi 8 pass 8 m²/h |
|
| KONICA KM1024i-13/6PL 4-16 Heads |
540×720 dpi 4 pass 25 m²/h |
540×1,080 dpi 6 pass 20 m²/h |
540×1,440 dpi 8 pass 15 m²/h |
|
| TH2500 Technical Parameter Table | ||||
| 打印控制 | ||||
| 喷墨技术 | Industrial Piezoeiectric Inkjet | |||
| 墨水类型 | Environmentally Protective UV Ink | |||
| RIP软件 | Photoprint/ Maintop/ ONYX | |||
| 颜色配置 | 4 color/ 6 color/White/ Varnish Optional | |||
| 操作系统 | Win 7/ 10/ 11 64 Bits | |||
| 图像格式 | TIF/ JPEG/ EPS/ PDF | |||
| 喷头高度 | 可调高度 2-70mm | |||
| 打印材料 | Wooden Panels, Aluminum Panels,Cardboard, Glass, Acrylic ,PVC Expansion panel, Printing Materials, Soft Film, Knife Cloth, 3P Cloth, leather, Lamp, Lamp Cloth, Car Sticker, Oil Painting Cloth and other Coil Materials | |||
| 介质规格 | Maximum Media Width 2,500mm | |||
| 打印宽度 | Maximum Print Width 2,480mm | |||
| 最大材料重量 | ≤ 350kg/m | |||
| 画面干燥系统 | ||||
| UV固化灯 | LED水冷系统 | |||
| 数据接口 | Hi-Speed USB 3.0 | |||
| 电源要求 | ||||
| 最大功率 | ＞ 16A; 3.5KW | |||
| 接入参数 | AC220V (±5%); 50HZ/60HZ | |||
| 运行环境 | ||||
| 湿度 | 35~80% RH ( NO Condensing ) | |||
| 温度 | 25~32℃; or more Recommended NO Frost | |||
| 规格 | ||||
| 机器尺寸/净重 | L4,300×W1,175×H1,570 mm/ Net Weight 950 KG | |||
| 包装尺寸/毛重 | L4,230×W1,080×H1,680 mm/ Gross Weight 1150 KG | |||
