TAIMES TH1900
高性能卷板一体机
Previous
Next
防撞装置
回流保护
智能羽化
缺墨警报
自动测高
连打功能
负压调节
UV固化
| TH1900 打印速度参数 | ||||
| 喷头型号 | 高速模式 | 标准模式 | 高画质模式 | 颜色配置 |
| RICOH GEN6-5PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 21 m²/h |
720×600 dpi 6 pass 15 m²/h |
720×1,200 dpi 8 pass 11 m²/h |
 |
| RICOH GEN5-7PL 2/3/4/5/6/7/8 Heads |
720×600 dpi 4 pass 14 m²/h |
720×600 dpi 6 pass 10 m²/h |
720×1,200 dpi 8 pass 8 m²/h |
|
| KONICA KM1024i-13PL 4-16 Heads |
540×720 dpi 4 pass 25 m²/h |
540×1,080 dpi 6 pass 20 m²/h |
540×1,440 dpi 8 pass 15 m²/h |
|
| EPSON i3200 1/2/3/4 Heads |
720×1,200 dpi 4 pass 15 m²/h |
720×1,800 dpi 6 pass 11 m²/h |
720×2,400 dpi 8 pass 7.5 m²/h |
 |
| TH1900 技术参数表 | ||||
| 打印控制 | ||||
| 喷墨技术 | Industrial Piezoeiectric Inkjet | |||
| 墨水类型 | Environmentally Protective UV Ink | |||
| RIP软件 | Photoprint | |||

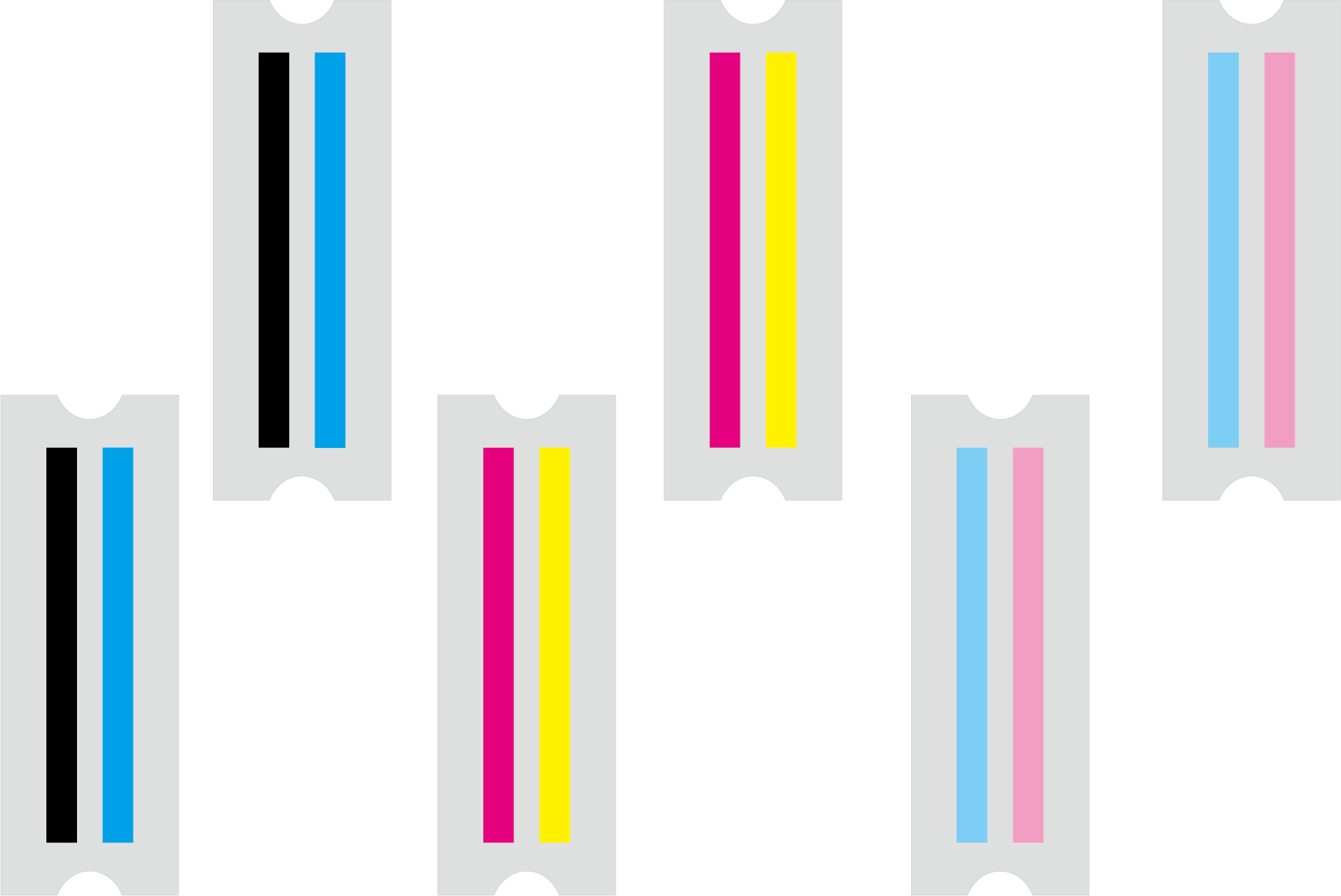

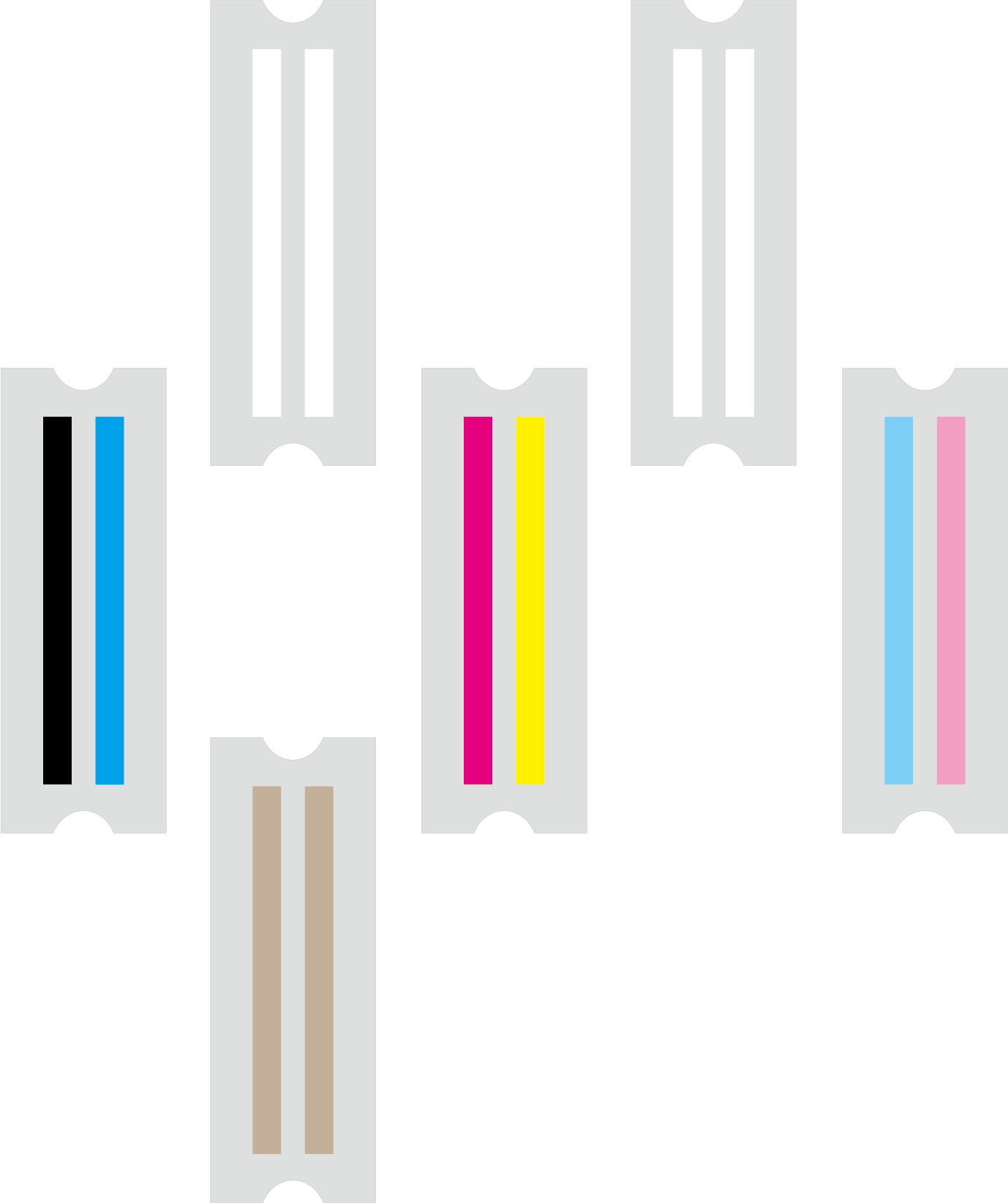

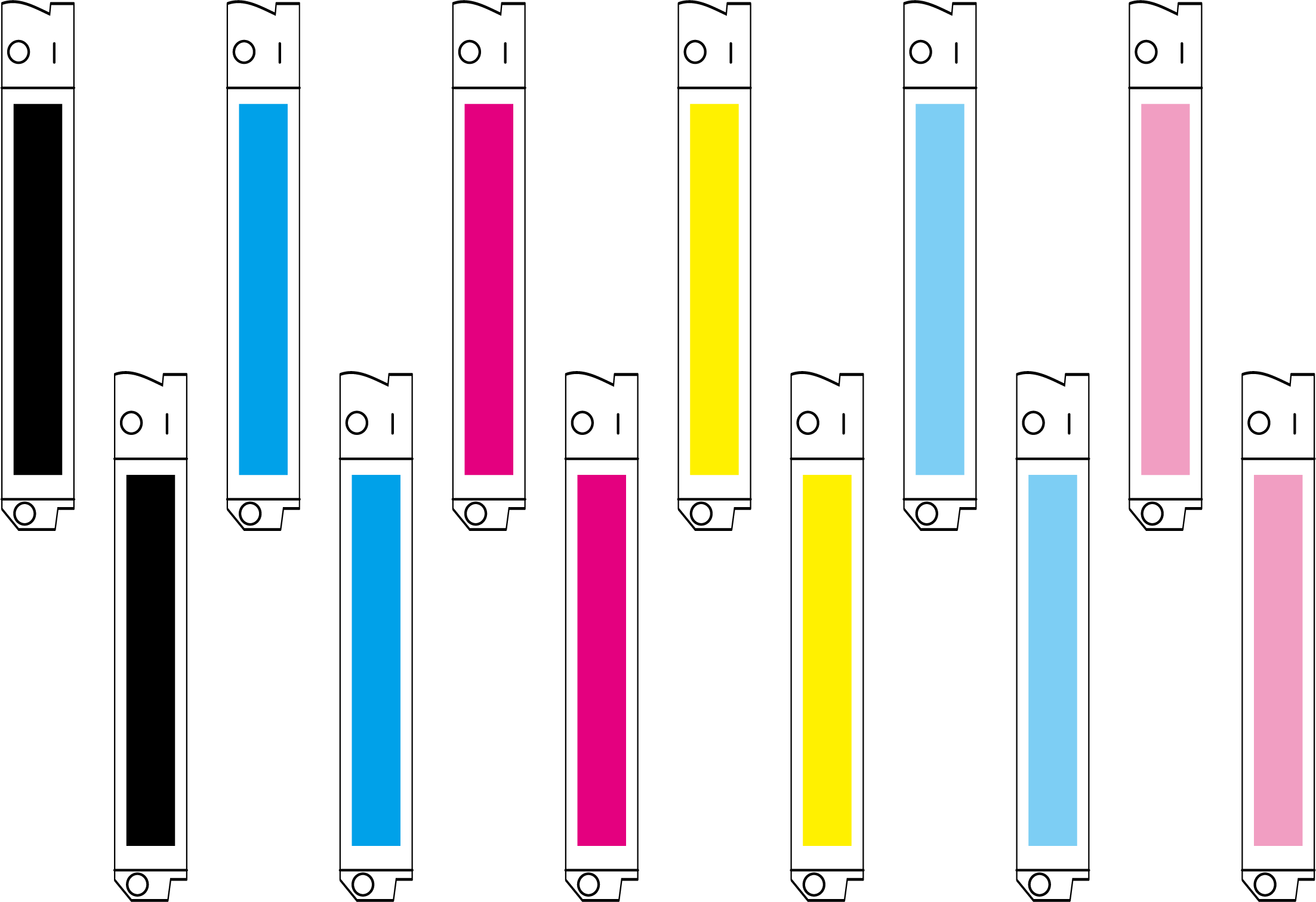

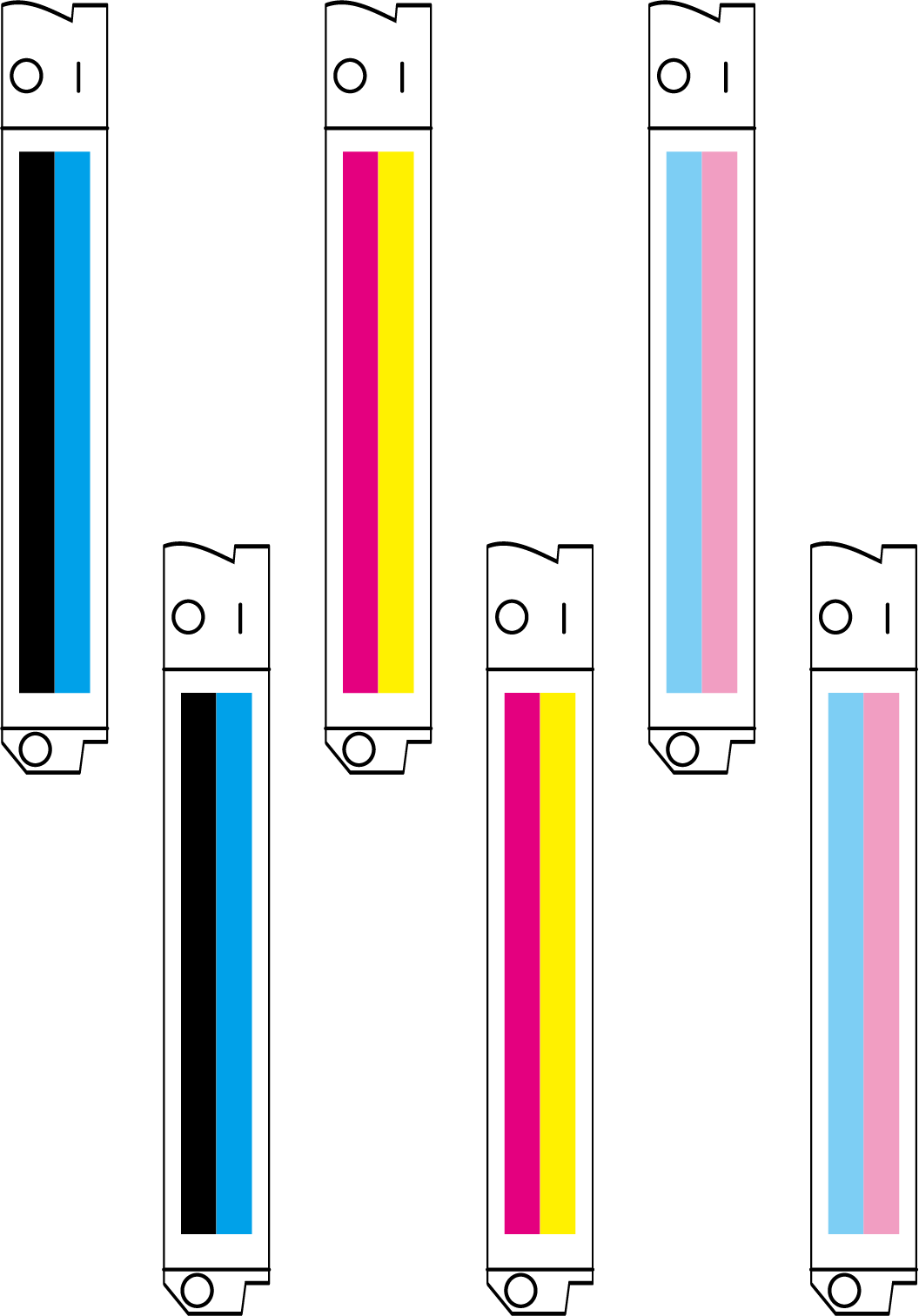

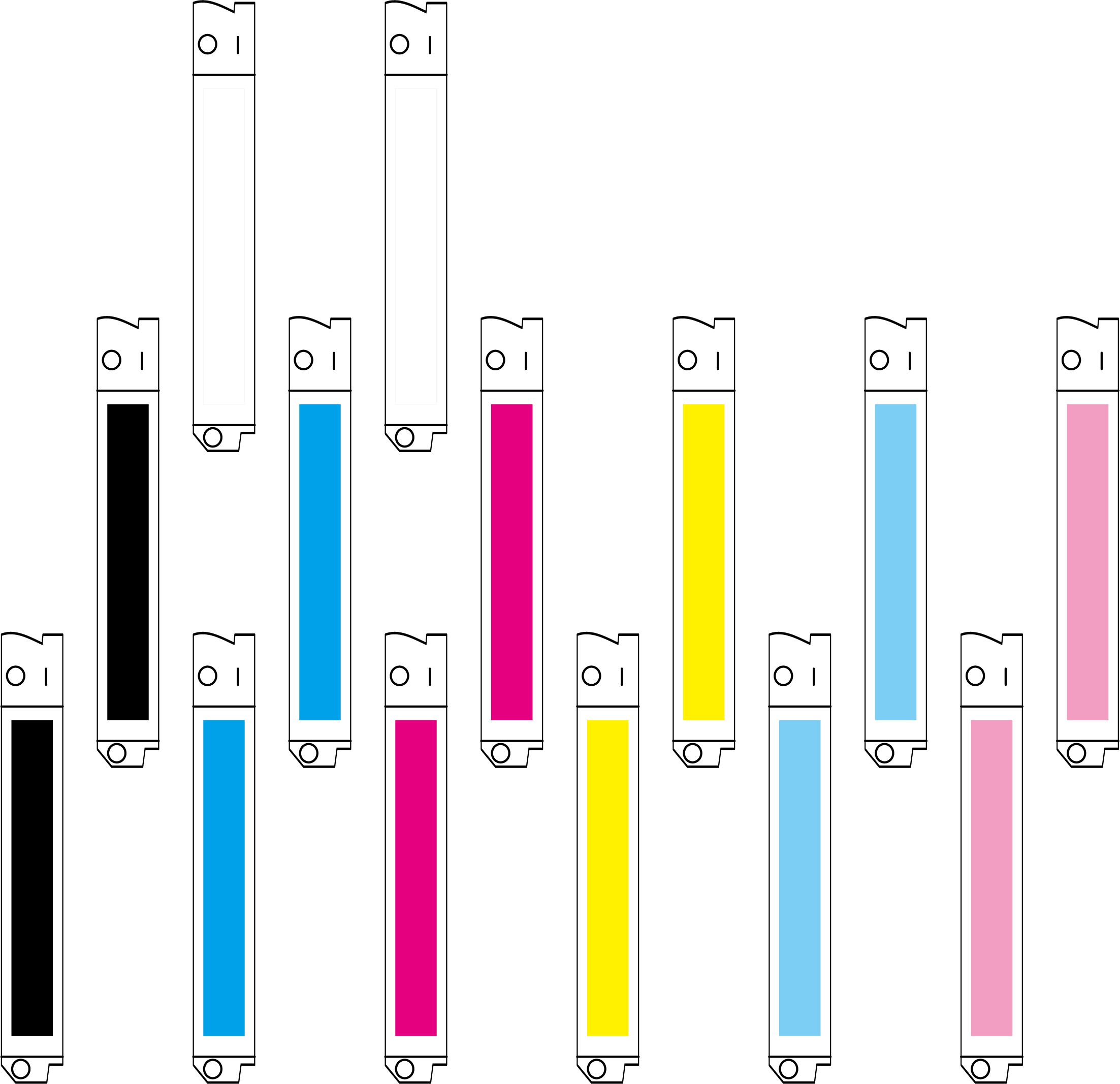

| 颜色配置 | 4 color/ 6 color/ White | |||
| 操作系统 | Win7/10/11 64 Bits | |||
| 图像格式 | TIF/ JPEG/ EPS/ PDF | |||
| 喷头高度 | 可调高度1-70mm | |||
| 打印材料 | Wooden Panels, Aluminum Panels, Cardboard, Glass, Acrylic, PVC Expansion Panel, Printing Materials, Soft Film, Knife Cloth, 3P Cloth, Leather, Lamp, Lamp Cloth, Car Sticker, Oil Painting Cloth and other Coil Materials | |||
| 介质规格 | Maximum Media Width 1,900mm | |||
| 打印宽度 | Maximum Print Width 1,800mm | |||
| 最大材料重量 | ≤ 100kg/m | |||
| 画面干燥系统 | ||||
| UV固化灯 | LED水冷系统 | |||
| 数据接口 | Hi-Speed USB 3.0 | |||
| 电源要求 | ||||
| 最大功率 | ＞ 30A; 6.5KW | |||
| 接入参数 | AC220V (±5%); 50HZ/60HZ | |||
| 运行环境 | ||||
| 湿度 | 30~65% RH ( NO Condensing ) | |||
| 温度 | 20~30°C(68 to 86°F) ；or more Recommended NO Frost | |||
| 规格 | ||||
| 机器尺寸/净重 | L4,430×W1,260×H1,530 mm/ Net Weight 850 KG | |||
| 包装尺寸/毛重 | L4,530×W1,330×H1,600 mm/ Gross Weight 1,000 KG | |||
