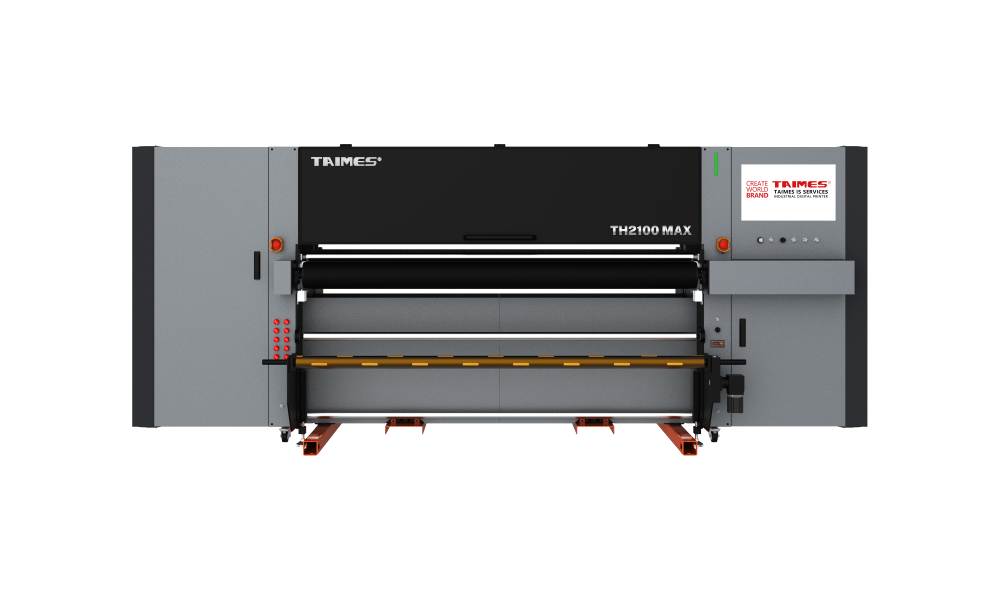

TAIMES TH2100 MAX
全能型2.1米工业UV网带机
防撞装置
回流保护
智能羽化
缺墨警报
自动测高
连打功能
负压调节
UV固化
| Printer | TAIMES TH2100 MAX | |||||||||||||||||
| 颜色配置 | C / M / Y / K / LC / LM / W | |||||||||||||||||
| 喷墨技术 | 工业压电式喷墨技术 | |||||||||||||||||
| 喷头型号 | RICOH GEN6-5PL | KONICA 1024A-6PL | KONICA 9888H-5PL | |||||||||||||||
| Color Scheme | ||||||||||||||||||
| Two Rows of Six Colors ( Full Color ) |
Three Rows of Eight Colors ( White Color Varnish ) |
Two Rows of Six Colors ( Full Color ) |
Three Rows of Seven Colors ( White Color Color ) |
Two Rows of Six Colors ( Full Color ) |
Three Rows of Eight Colors ( White Color Varnish ) |
|||||||||||||
| 生产率 | 1 Row | 2 Rows | 3 Rows | 1 Row | 2 Rows | 3 Rows | 1 Row | 2 Rows | 3 Rows | |||||||||
| High Speed ( 4 pass ) | 11 m²/h | 21 m²/h | 19 m²/h | 32 m²/h | 60 m²/h | 85 m²/h | 28 m²/h | 53 m²/h | 75 m²/h | |||||||||
| Standard ( 6 pass ) | 7 m²/h | 14 m²/h | 19 m²/h | 21 m²/h | 39 m²/h | 56 m²/h | 19 m²/h | 35 m²/h | 50 m²/h | |||||||||
| High-Quality ( 8 pass ) | 5 m²/h | 10 m²/h | 14 m²/h | 16 m²/h | 30 m²/h | 42 m²/h | 14 m²/h | 26 m²/h | 37 m²/h | |||||||||
| 最大打印尺寸 | Width: 2,100 mm ( 83'' ) | |||||||||||||||||
| Print Height | Manual Height Hcalibration ( Max Printing Weight: ≤ 100 kg/m² ) | |||||||||||||||||
| 介质类型 | PP Synthetic Paper, Car Sticker, Film, Photo Paper, Acid-Free Paper, Coated Paper, Canvas, Flag Banner Fabric, Leather, Flex Face Membrane, Mesh Banner, etc. | |||||||||||||||||
| 墨水类型 | 弱溶剂墨水/ 水性墨水/ UV/ 热转印 | |||||||||||||||||
| Curing System | 系统可控加热（选配） | |||||||||||||||||
| RIP软件 | Photoprint / Onyx / Printer Factory / Colorgate | |||||||||||||||||
| 图像格式 | TIF / JPG / EPS / PDF | |||||||||||||||||
| 电源要求 | > 32A, 5KW; AC220V ( ±5% ), 50~60HZ | |||||||||||||||||
| Size / Weight | L3,828 × W1,036 × H1,610 mm ( L151 × W41 × H63 '' ) ; Net Weight 840 KG ( 1,852 LB ) | |||||||||||||||||
