TAIMES TH1900 MAX

全能型1.9米工业UV网带机

ANTI COLLISION DEVICE

防撞装置

backflow protection

回流保护

INTELLIGENT FEATHERING

智能羽化

LOW INK ALARM

缺墨警报

AUTOMATIC HEIGHT MEASUREMENT

自动测高

CONTINUOUS PRINTING FUNCTION

连打功能

NEGA TIVE PRESSURE REGULATION

负压调节

UV CURING

UV固化

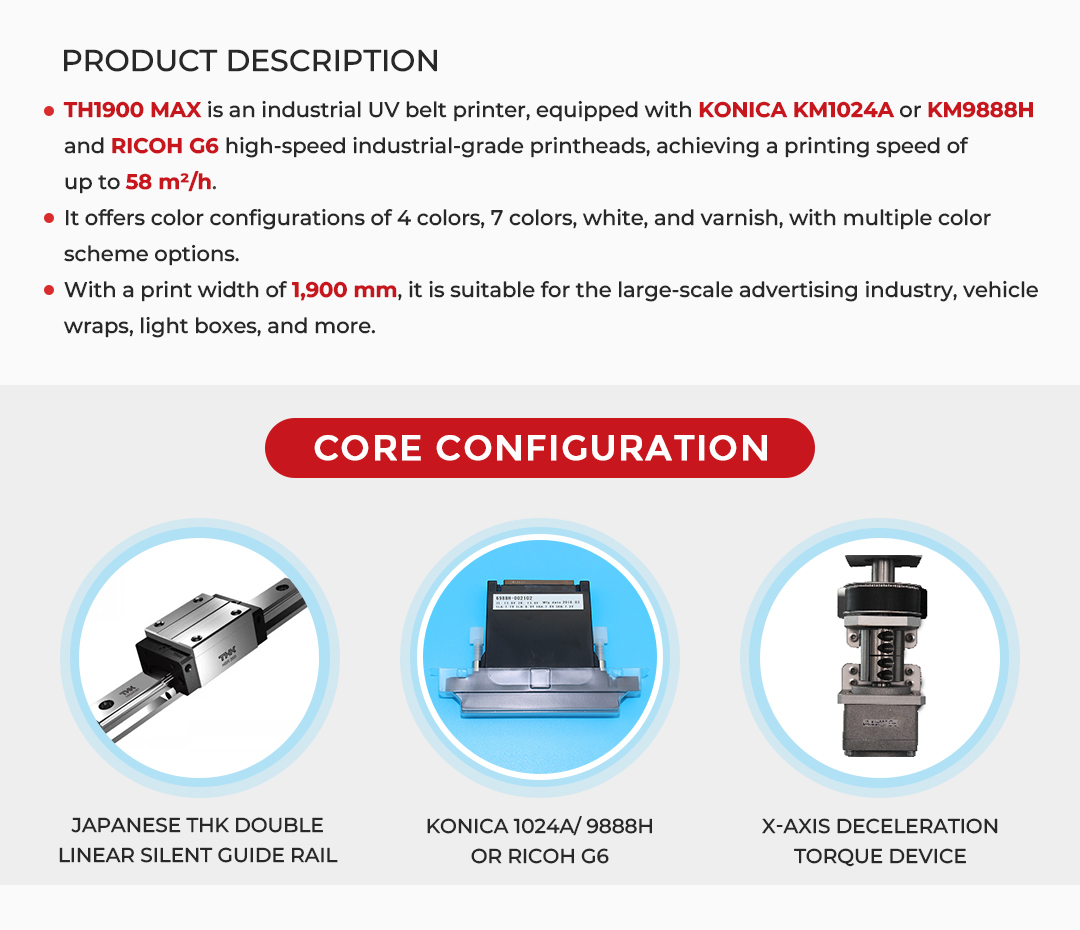

TH1900-MAX-英文版网页排版-01
TH1900-MAX-英文版网页排版-02
TH1900-MAX-英文版网页排版-03
TH1900-MAX-英文版网页排版-04
Printer TAIMES TH1900 MAX
颜色配置 C / M / Y / K / LC / LM / W
喷墨技术 工业压电式喷墨技术
喷头型号 RICOH GEN6-5PL KONICA 1024A-6PL KONICA 9888H-5PL
Color Scheme
Two Rows of Six Colors
( Full Color )		 Three Rows of Eight Colors
( White Color Varnish )		 Two Rows of Six Colors
( Full Color )		 Three Rows of Seven Colors
( White Color Color )		 Two Rows of Six Colors
( Full Color )		 Three Rows of Eight Colors
( White Color Varnish )
生产率 1 Row 2 Rows 3 Rows 1 Row 2 Rows 1 Row 2 Rows
High Speed ( 4 pass ) 10 m²/h 19 m²/h 27 m²/h 31 m²/h 58 m²/h 27 m²/h 51 m²/h
Standard ( 6 pass ) 7 m²/h 13 m²/h 19 m²/h 20 m²/h 39 m²/h 18 m²/h 34 m²/h
High-Quality ( 8 pass ) 5 m²/h 9 m²/h 10 m²/h 15 m²/h 29 m²/h 13 m²/h 25 m²/h
最大打印尺寸 Width: 1,900 mm ( 75 '' )
Print Height Manual Height Hcalibration ( Max Printing Weight: ≤ 100 kg/m² )
介质类型 PP纸、车贴、胶片、相纸、酸性纸、铜版纸、油画布、旗帜布、皮革、拉伸薄膜、网格布等
墨水类型 弱溶剂墨水/ 水性墨水/ UV/ 热转印
Curing System 系统可控加热（选配）
RIP软件 Photoprint / Onyx / Printer Factory / Colorgate
图像格式 TIF / JPG / EPS / PDF
电源要求 > 32A, 5KW; AC220V ( ±5% ), 50~60HZ
Size / Weight L3,628 × W1,036 × H1,610 mm ( L143 × W41 × H63 '' ) ; Net Weight 790 KG ( 1,742 LB )
