GEN 6 PRINTER

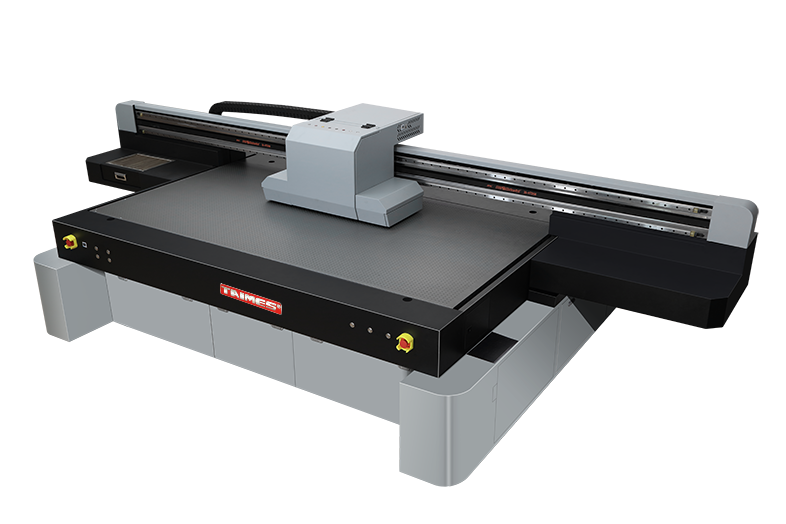

TAIMES X2513 TRUE Industrial UV FLATBED PRINTER
8.0X4.0ft 4ROWS 8heads
Full Colors GEN6 65sqm/h
GEN 6 PRINTER
The highest speed, will allow you to have all your production ready in less time.
Ready to Work
TAIMES X2513 GEN6 HIGH SPEED UV FLATBED PRINTER 8'x4' FOR RIGID MEDIA SUBTRATES
"*" señala los campos obligatorios
PRINT HEADS CONFIGURATION
| RICOH G6-5PL | 2/3 Heads |
| High Speed Mode: | 720×600 dpi 4pass 258 ft²/h (24m²/h) |
| Standard Mode: | 720×900 dpi 6pass 193 ft²/h (18 m²/h) |
| High Quality Mode: | 720×1200 dpi 8pass 129 ft²/h (12 m²/h) |
| Ink Color: | KCMY Lc Lm W |
| RICOH G6-5PL | 4/5 Heads |
| High Speed Mode: | 720×600 dpi 4pass 462 ft²/h (43 m²/h) |
| Standard Mode: | 720×900 dpi 6pass 365 ft²/h (34 m²/h) |
| High Quality Mode: | 720×1200 dpi 8pass 236 ft²/h (22 m²/h) |
| Ink Color: | KCMY Lc Lm W |
| RICOH G6-5PL | 6/7/8Heads |
| High Speed Mode: | 720×600 dpi 4pass 645 ft²/h (60 m²/h) |
| Standard Mode: | 720×900 dpi 6pass 516ft²/h (48 m²/h) |
| High Quality Mode: | 720×1200 dpi 8pass 344 ft²/h (32 m²/h) |
| Ink Color: | KCMY Lc Lm W |
TECHNICAL SPECIFICATIONS
| Print Technology: | Industrial Piezoelectric Inkjet |
| Ink Types: | Enviromental Protective UV Ink |
| RIP Software: | Photoprint, Maintop, Printer factory |
| Color Configuration: | 4Color / 6Color / White |
| Operating System: | Win 7/10 64bits |
| Image Format: | TIFF /JPEG / EPS / PDF |
| Print Head Height: | Up to 3.5″ (2-90mm) Adjustable |
| Media Type: | Wood, Metals, Doormats, Door plank, Paperboard, Expansion sheet, Ceiling panel, Glass, Ceramics, Acrylic, Coroplast, etc. |
| Printing Width: | 8 ft x 4 ft (2440mm x 1200mm) |
| Maximum Weight of Material: | 67 lb/ft (100 kg/m) |
| UV Curing Lamp: | LED Water cooling system |
| Data interface: | USB 3.0 Hi-Speed USB 2.0 |
| Maximum Power: | >30A ; 6.5KWW |
| Access Parameter: | AC 220V (+-5%) 50HZ / 60HZ |
| Humidity: | 35-80% RH (no condensing) |
| Temperature: | 25-32°C (77 – 90° F) |
| Machine Dimension / Weight: | L14.5 x W6.5 x H4.7 ft /1,984lb |
| Package Dimension / Weight: | L15 x W7.5 x H5.5 ft / 2,204 lb |
PRINT HEAD
RICOH 6th Generation Print Head
A minimized 5PL droplet size and improved jetting accuracy yields excellent print quality without graininess.
GEN5 & G5i
Single-pass 600dpi high-resolution printing and support for multiple ink colors
RICOH 6th Generation Print Head
The new generation model of the Japanese company RICOH Ltd. Maximum frequency of 50kHz, allowing High Precision and High Speed
Up to 720×600 DPI 4pass 645 ft² / h (60 m² / h)
SOME FEATURES
HIGH QUALITY UV INKS
The instant drying of UV inks, allows a relief effect by printing up to 8 layers, obtaining extraordinary results.
High and anti-collision automatic sensors
Industrial grade heavy mechanical structure
adjustable height, up to 3.5"
No te limites a imprimir en una variedad de materiales
Durable parts for industrial production
APPLICATIONS
ACCESORIES
TECHNICAL SUPPORT
We offer a 1 year warranty on all our UV Flatbed Printing Systems.
For any factory defect. Does not include consumables (inks, print heads)
It has: Assistance for training, resolution of frequently asked questions, and diagnosis and solution of problems remotely through our Support Center.
Our team of Specialized Technicians at your service!
